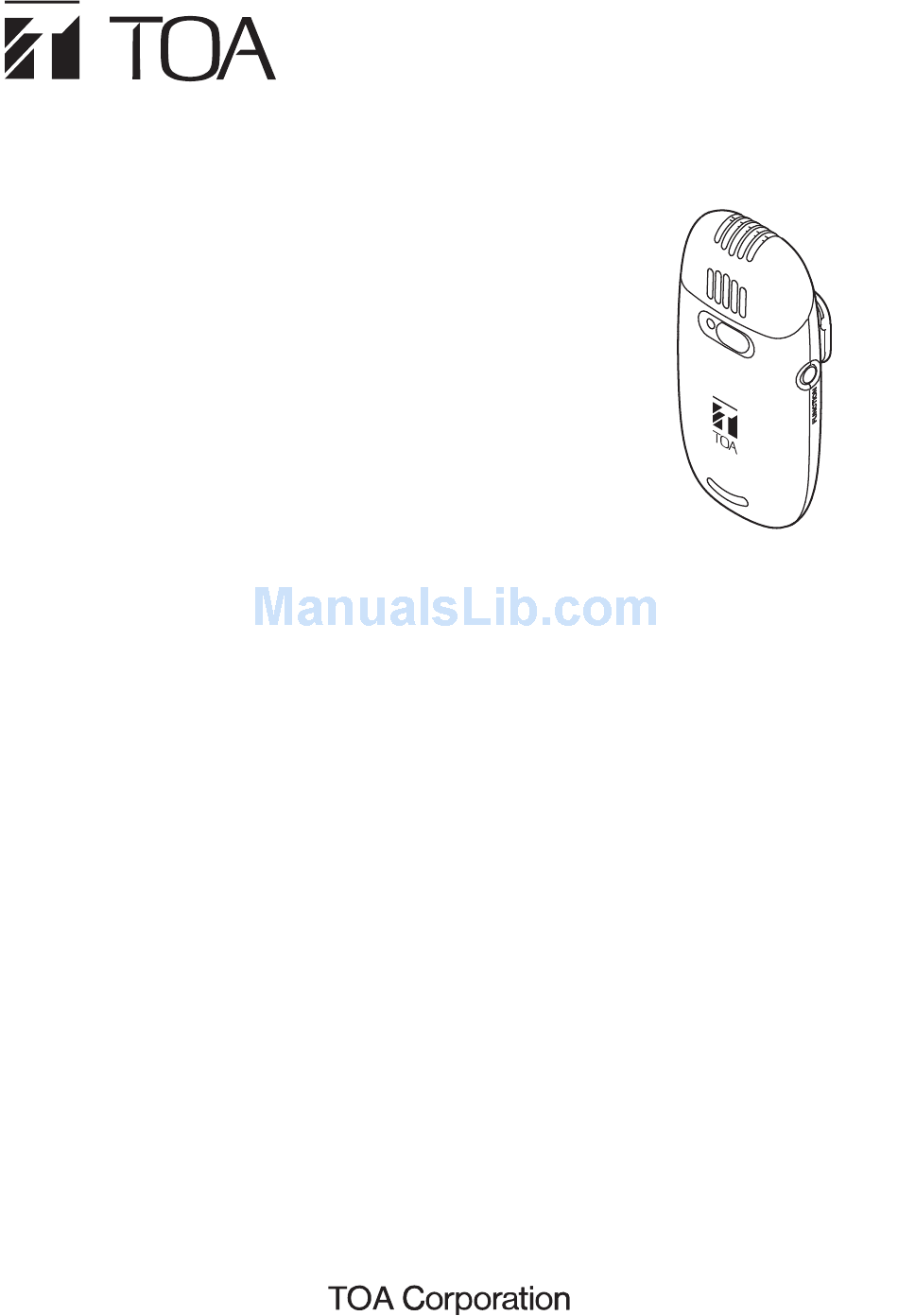

INFRARED WIRELESS MICROPHONE
Thank you for purchasing TOA's Infrared Wireless Microphone.
Please carefully follow the instructions in this manual to ensure long,
trouble-free use of your equipment.
TABLE OF CONTENTS
................................................................................................................................. 3
7.1. How to Charge ....................................................................................................................... 6
7.2. Charging Timing .................................................................................................................... 7
.............................................................................................................................. 7
9.1. When Holding the Microphone By Hand or Hanging It Around the Neck ............................ 8
9.2. Setting the Microphone Sensitivity Selector Switch ............................................................ 8
9.3. Microphone-to-Mouth Distance ............................................................................................ 9
9.4. When Using the Clip ............................................................................................................. 9
Accessory .................................................................................................................................. 11
Optional products ...................................................................................................................... 11
......................................................................................................... 2
....................................................................................................... 3
.................................................................................................... 4
............................................................................................................. 5
............................................................................................................ 10
.......................................................................................................... 10
................................................................................................................. 11
OPERATING INSTRUCTIONS
................................................................................... 4
........................................................ 8
IR-310M
O N
/ O
F F
................................................... 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Toa IT-310M
Summary of Contents for Toa IT-310M
-
Page 1: Table Of Contents
OPERATING INSTRUCTIONS INFRARED WIRELESS MICROPHONE IR-310M Thank you for purchasing TOA’s Infrared Wireless Microphone. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ......................2 2. GENERAL DESCRIPTION ....................... -
Page 2: Safety Precautions
CAUTION When the Unit is in Use When the Unit is in Use • Use TOA’s IR-310BC Battery Charger when • When the unit is not in use for 14 days or recharging. more, be sure to take the batteries out of... -
Page 3: General Description
(2) this device must accept any interference received, including interference that may cause undesired operation. Any modifications made to this device that are not approved by TOA Corporation may void the authority granted the user by the FCC to operate this equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable... -
Page 4: Handling Precautions
4. HANDLING PRECAUTIONS • Do not cover the infrared wireless microphone’s infrared emitter with the hand or hide the microphone by placing it inside clothes. Covering the infrared emitter will disable light transmission. • Avoid using the infrared microphone in close proximity to plasma displays or infrared LAN, which could lead to noise or microphone malfunctions. • Do not dismantle or modify the infrared microphone. • Take care not to drop the infrared microphone on the floor or hit it on hard objects, as this could lead to microphone failures. • The infrared microphone cannot be used outdoors or in areas exposed to direct sunlight. • Do not place the infrared microphone in high-temperature locations, such as in a car parked with its doors closed in summer, or in highly humid locations, as this could lead to microphone failure. -
Page 5: Battery Insertion
1. Power switch 7. Clip Push the switch to switch ON the unit’s Used to fix the IR-310M to the front of your power. clothes for hands-free use. To switch it OFF, push the switch again. 8. Battery cover 2. Power/battery indicator Contains the battery compartment. Turning on the power switch causes this Be sure to open and close the cover indicator to come on, allowing it to also correctly. -
Page 6: When Operating On Rechargeable Batteries
7. WHEN OPERATING ON RECHARGEABLE BATTERIES When charging, never insert rechargeable battery other than the CAUTION specified IR-200BT battery in the IR-310M. Charging any other than the IR-200BT battery may result in fire or personal injury due to battery rupture. Notes • When operating on rechargeable battery, the optional IR-310BC Battery Charger is required. • For rechargeable battery, be sure to use the optional IR-200BT battery. Do not use other battery. 7.1. -
Page 7: Charging Timing
7.2. Charging Timing IR-310M (front) As discharge progresses, the battery indicator’s color gradually changes from green to red. If the indicator lights red during use, charge the IR-310M immediately since the microphone will be disabled several minutes after the indicator has lit red. [Guidelines on the rechargeable battery operation time] ON/OFF Continuous usage time: About 8 hours... -
Page 8: Infrared Wireless Microphone Usage Tips
[Example of Function button usage] Amplifier IR-820SP Infrared Wireless Speaker Speaker Revolving light IR-310M Infrared Wireless Microphone IR-801AF Audio Interface Unit Push the Function button while speaking. IR-802T Infrared Wireless Tuner 9. INFRARED WIRELESS MICROPHONE USAGE TIPS 9.1. When Holding the Microphone By Hand or Hanging It Around the Neck Note: Do not cover the infrared wireless microphone’s infrared emitter with the hand or hide the microphone by placing it inside clothes. -
Page 9: Microphone-To-Mouth Distance
the Q-EM-77 Single Ear Microphone and "L" position for the YP-M301 or WH-4000H Headset Microphone. If reproduced voices are distorted depending on the environment of use, set the sensitivity to "L" position. Notes • Be sure to before setting. switch the unit’s power OFF • Avoid bringing the microphone too close to your mouth or speaking too loud into the microphone. -
Page 10: Channel Setting
10. CHANNEL SETTING Note: Make sure that the IR-310M’s channel is set to the desired channel "A" or "B." Step 1. Switch the unit’s power OFF. (Refer to p. 5 "BATTERY INSERTION.") [Inside of the Note IR-310M (rear) battery cover] If the channel is changed when the power is on, the transmitting frequency changes immediately and noises may occur. Step 2. -
Page 11: Specifications
95 g or 0.21 lb (with battery and strap) Note: The design and specifications are subject to change without notice for improvement. • Accessory Neck strap .............. 1 • Optional products Battery Charger : IR-310BC Rechargeable battery: IR-200BT-2 (containing 2 pieces) Traceability Information for Europe Manufacturer: Authorized representative: TOA Corporation TOA Electronics Europe GmbH 7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo, Suederstrasse 282, 20537 Hamburg, Japan Germany... - Page 12 URL: http://www.toa.jp/ 133-07-325-60...
