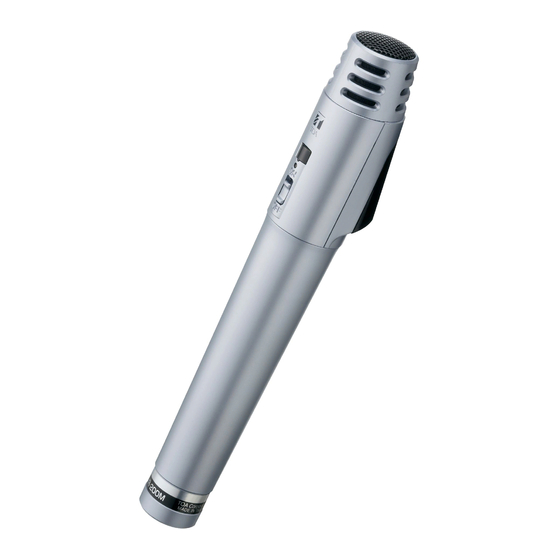

- Page 1 OPERATING INSTRUCTIONS INFRARED WIRELESS MICROPHONES IR-200M IR-300M IR-300M IR-200M Thank you for purchasing TOA's Infrared Wireless Microphone. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
-
Page 2: Table Of Contents
................4 3. FEATURES ......................4 4. HANDLING PRECAUTIONS ................4 5. NOMENCLATURE AND FUNCTIONS 5.1. IR-200M ......................5 5.2. IR-300M ......................6 6. BATTERY INSERTION ..................7 7. WHEN OPERATING ON RECHARGEABLE BATTERIES 7.1. How to Charge ....................8 7.2. -
Page 3: Safety Precautions
(2) this device must accept any interference received, including interference that may cause undesired operation. Any modifications made to this device that are not approved by TOA Corporation may void the authority granted the user by the FCC to operate this equipment. -
Page 4: General Description
2. GENERAL DESCRIPTION The IR-200M (hand-held type) and IR-300M (hands-free type) infrared wireless microphones are intended for speech applications and use unidirectional electret condenser microphone units featuring high sensitivity and clear sound. 3. FEATURES • Employs the PLL synthesizer system, allowing up to 6 different frequencies to be set. -
Page 5: Nomenclature And Functions
5. NOMENCLATURE AND FUNCTIONS 5.1. IR-200M [Front] [Side] [Inside the battery case] 1. Power switch 5. Color label attachment area Turns on and off the microphone. Attach optional color label to distinguish between infrared wireless microphones. 2. Battery indicator 6. Charging terminal Lights when the power switch (1) is turned on. -
Page 6: Ir-300M
5.2. IR-300M [Top] Built-in microphone [Front] [Rear] [Inside of the battery cover] 1. Power switch / battery indicator 6. Battery cover Turns on or off the microphone. Contains the battery compartment. Turning on this switch causes its indicator to come Be sure to open and close the cover correctly. -
Page 7: Battery Insertion
Slide the battery cover in the direction of the arrow while pressing the arrow portion. Step 3. Insert 2 IR-200BT rechargeable NiMH batteries or 2 AA alkaline batteries, noting correct polarities (+ and –) indicated in the battery compartment. Step 4. Replace the battery case (IR-200M) or battery cover (IR-300M) securely. -
Page 8: When Operating On Rechargeable Batteries
The IR-200BC's charging indicator lights red and charging begins. Charging is completed in approximately 3 hours and the IR-200BC's full-charge indicator lights green. (When charging the IR-200M microphone, attach the mounting adapter supplied with the charger.) Notes • If the red charging indicator does not light even if the infrared wireless microphone has been inserted into the charger, check to see if the microphone has been correctly inserted. -
Page 9: When Using Dry Cell Batteries
8. WHEN USING DRY CELL BATTERIES [IR-200M's front view] [IR-300M's top view] Battery indicator Battery indicator The battery indicator continuously lights green while the battery is fully charged, and gradually changes to red as the battery becomes weaker. Change the battery with a new one when the indicator lights red. -
Page 10: Infrared Wireless Microphone Usage Tips
10. INFRARED WIRELESS MICROPHONE USAGE TIPS 10.1. When Holding the Microphone or Suspending It From the Neck Note Do not cover the infrared wireless microphone's infrared emitter with the hand or hide the microphone by placing it inside clothes. Covering the infrared emitter will disable light transmission. [Hand-held type] [Correct] [Incorrect]... -
Page 11: Channel Settings
Slide the battery cover in the direction of the arrow while pressing the arrow portion. Step 3. Set the channel selector switch to the desired channel. Rotate the channel selector switch using the supplied screwdriver. Select the channel A or B. Step 4. Replace the battery case (IR-200M) or battery cover (IR-300M) securely. -
Page 12: About The Power Selector Switch
9 "Guidelines on the AA alkaline dry cell battery's operation time." To make the continuous usage time longer, set the switch to the N position. When a longer transmission distance is required, set to the H position. [IR-200M] [IR-300M] [Inside of the battery cover] [Inside of the battery case]... -
Page 13: Dimensional Diagrams
14. DIMENSIONAL DIAGRAMS Unit: mm (inches) 14.1. IR-200M ø37 45.2 (1.46) (1.78) [Front] [Side] [Rear] ø28.2 (ø1.11) 14.2. IR-300M [Top] 64 (2.52) [Front] [Side] [Rear]... -
Page 14: Troubleshooting
15. TROUBLESHOOTING Symptom Possible cause Remedy Battery indicator does not [Operating on rechargeable batteries] light even if the power switch • Battery polarities not correct. • Reinsert batteries correctly. is turned on. • Specified battery not used. • Replace the batteries with the IR- 200BT rechargeable batteries for the infrared wireless microphone. -
Page 15: Specifications
16. SPECIFICATIONS 16.1. IR-200M Battery IR-200BT rechargeable battery for the infrared wireless microphone (2 pieces) or AA alkaline dry cell battery (2 pieces). Current Consumption Typ. 250 mA (2.4 V, Power selector switch: N) Typ. 340 mA (2.4 V, Power selector switch: H) -
Page 16: Ir-300M
Battery Charger : IR-200BC Rechargeable battery: IR-200BT-2 (containing 2 pieces) Traceability Information for Europe (EMC directive 2004/108/EC) Manufacturer: Authorized representative: TOA Corporation TOA Electronics Europe GmbH 7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo, Suederstrasse 282, 20537 Hamburg, Japan Germany URL: http://www.toa.jp/ 133-07-274-90...
