UHF WIRELESS MICROPHONE
Thank you for purchasing TOA's UHF Wireless Microphone.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
TABLE OF CONTENTS
............................................................................... 2
............................................................................. 2
.......................................................................................................... 2
.......................................................................... 3
............................................................................................. 3
.................................................................................... 5
........................................................................................................ 6
.................................................................................... 6
............................................................................................. 8
OPERATING INSTRUCTIONS
.................................................................... 5
......................................... 7
WM-5320
WM-5320A
WM-5320H
...... 6
................ 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Toa WM-5320
Summary of Contents for Toa WM-5320
- Page 1 OPERATING INSTRUCTIONS UHF WIRELESS MICROPHONE WM-5320 WM-5320A WM-5320H Thank you for purchasing TOA's UHF Wireless Microphone. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ................2 2.
-
Page 2: Safety Precautions

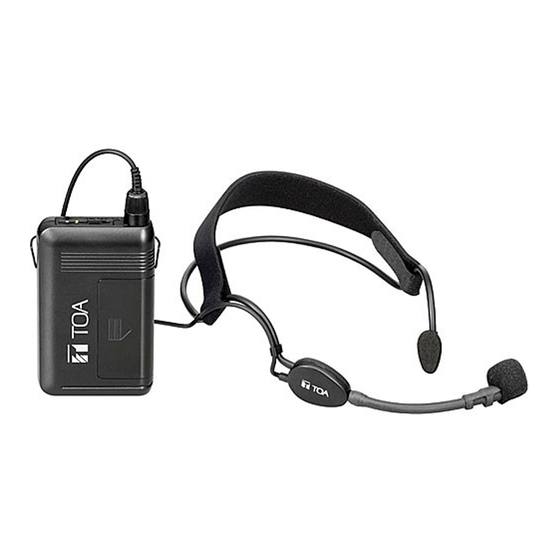

2. GENERAL DESCRIPTION The TOA's WM-5320 is a lapel wireless microphone, and the WM-5320A and WM-5320H are headset wireless microphones, which are all designed for speech use. The WM-5320 employs an omni-directional electret condenser microphone element, while the WM-5320A and WM-5320H employ unidirectional electret condenser microphone elements. -
Page 3: Handling Precautions
• Never open nor remove the unit case to modify the unit. Refer all servicing to your nearest TOA dealer. • Take care not to drop the unit onto the floor nor bump it against a hard object as the unit could fail. - Page 4 [Microphone unit] (WM-5320 only) Unit: mm Tie-clip attachment Clip 130 cm in length Plug lock ø3.5 Conduct the microphone cable so that noise due to friction is avoided. [Headset] (WM-5320A only) [Headset] (WM-5320H only) Adjustable band Gooseneck Windscreen Plug lock...
-
Page 5: Battery Insertion
6. BATTERY INSERTION Step 1. Turn off the power switch. Step 3. Insert an AA battery according to (+) and (–) indications on the battery compartment. Step 2. Remove the battery cover from the unit. Slide the battery cover in the direction Step 4. -
Page 6: Operation
In such cases, change the operating frequency of your system. (As to dealing with the interference, refer to the operating instructions of the wireless tuner.) • Should you have any questions regarding the use or availability of TOA wireless products, please contact your local TOA dealer. -
Page 7: Audio Level Adjustment (Sensitivity Control)
(post- compressor Emphasis) by setting the switch to OFF (L position). When using the WM-5320 series with the switch set to ON, also reset the WT-5800 series tuner to a new circuit by means of the optional RW-4800 ROM Writer. -
Page 8: Specifications
13. SPECIFICATIONS [WM-5320] Microphone Element Electret condenser type, omni-directional pattern Modulation Frequency modulation Frequency Range 692 – 865 MHz, UHF Selectable Channel 64 frequencies (the number of channels may differ from country to country.) RF Carrier Power Less than 50 mW Tone Frequency 32.768 kHz...
