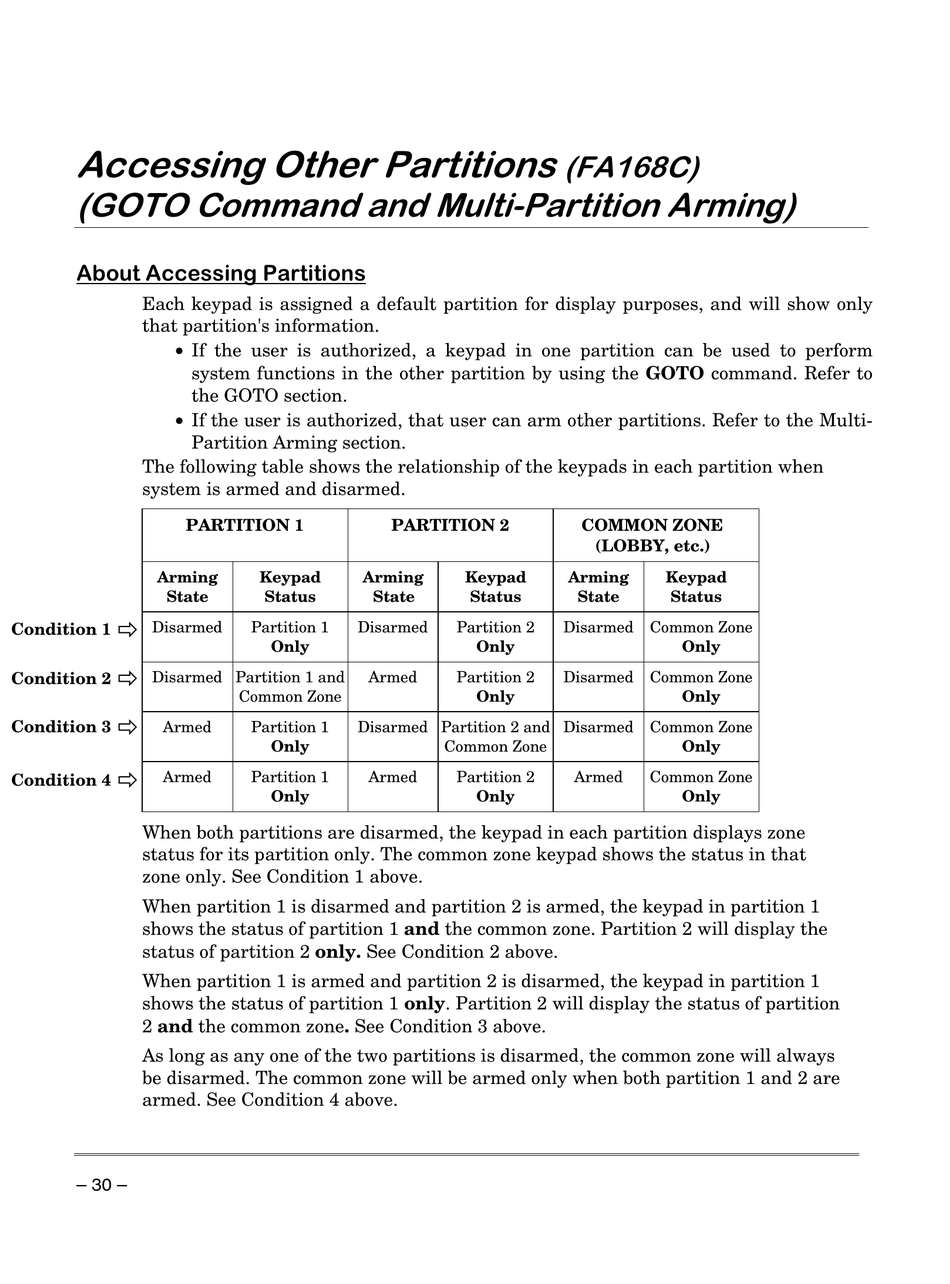

First Alert FA168C-CN User Manual page 30

Each keypad is assigned a default partition for display purposes, and will show only
that partition's information.
• If the user is authorized, a keypad in one partition can be used to perform
• If the user is authorized, that user can arm other partitions. Refer to the Multi-
The following table shows the relationship of the keypads in each partition when
system is armed and disarmed.
PARTITION 1
Arming
State
Ö
Disarmed
Condition 1
Ö
Condition 2 Disarmed Partition 1 and
Ö
Condition 3
Armed
Ö
Armed
Condition 4
When both partitions are disarmed, the keypad in each partition displays zone
status for its partition only. The common zone keypad shows the status in that
zone only. See Condition 1 above.
When partition 1 is disarmed and partition 2 is armed, the keypad in partition 1
shows the status of partition 1 and the common zone. Partition 2 will display the
status of partition 2 only. See Condition 2 above.
When partition 1 is armed and partition 2 is disarmed, the keypad in partition 1
shows the status of partition 1 only. Partition 2 will display the status of partition
2 and the common zone. See Condition 3 above.
As long as any one of the two partitions is disarmed, the common zone will always
be disarmed. The common zone will be armed only when both partition 1 and 2 are
armed. See Condition 4 above.
system functions in the other partition by using the GOTO command. Refer to
the GOTO section.
Partition Arming section.
Keypad Arming
Status
Partition 1 Disarmed
Only
Armed
Common Zone
Partition 1 Disarmed Partition 2 and
Only
Partition 1 Armed
Only
PARTITION 2
Keypad
State Status
Partition 2
Only
Partition 2
Only
Common Zone
Partition 2
Only
COMMON ZONE
(LOBBY, etc.)
Arming Keypad
State Status
Disarmed Common Zone
Only
Disarmed Common Zone
Only
Disarmed Common Zone
Only
Armed Common Zone
Only
