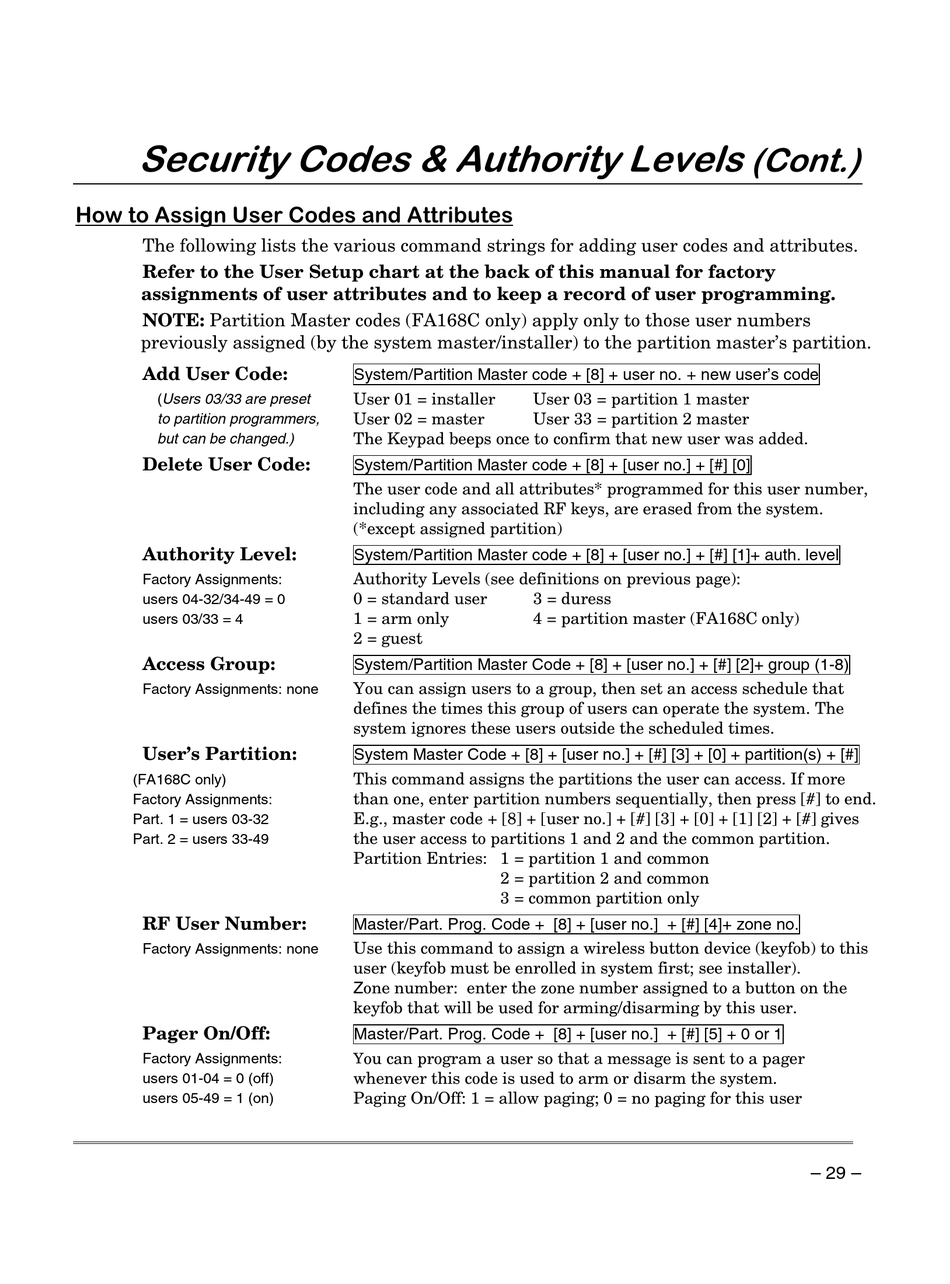

The following lists the various command strings for adding user codes and attributes.
Refer to the User Setup chart at the back of this manual for factory
assignments of user attributes and to keep a record of user programming.
NOTE: Partition Master codes (FA168C only) apply only to those user numbers
previously assigned (by the system master/installer) to the partition master's partition.
Add User Code:
Delete User Code:
Authority Level:
Access Group:
User's Partition:
RF User Number:
Pager On/Off:
User 01 = installer
User 02 = master
The Keypad beeps once to confirm that new user was added.
The user code and all attributes* programmed for this user number,
including any associated RF keys, are erased from the system.
(*except assigned partition)
Authority Levels (see definitions on previous page):
0 = standard user
1 = arm only
2 = guest
You can assign users to a group, then set an access schedule that
defines the times this group of users can operate the system. The
system ignores these users outside the scheduled times.
This command assigns the partitions the user can access. If more
than one, enter partition numbers sequentially, then press [#] to end.
E.g., master code + [8] + [user no.] + [#] [3] + [0] + [1] [2] + [#] gives
the user access to partitions 1 and 2 and the common partition.
Partition Entries: 1 = partition 1 and common
2 = partition 2 and common
3 = common partition only
Use this command to assign a wireless button device (keyfob) to this
user (keyfob must be enrolled in system first; see installer).
one number: enter the zone number assigned to a button on the
keyfob that will be used for arming/disarming by this user.
ou can program a user so that a message is sent to a pager
Y
whenever this code is used to arm or disarm the system.
Paging On/Off: 1 = allow paging; 0 = no paging for this user
+
User 03 = partition 1 master
User 33 = partition 2 master
3 = duress
4 = partition master (FA168C only)
