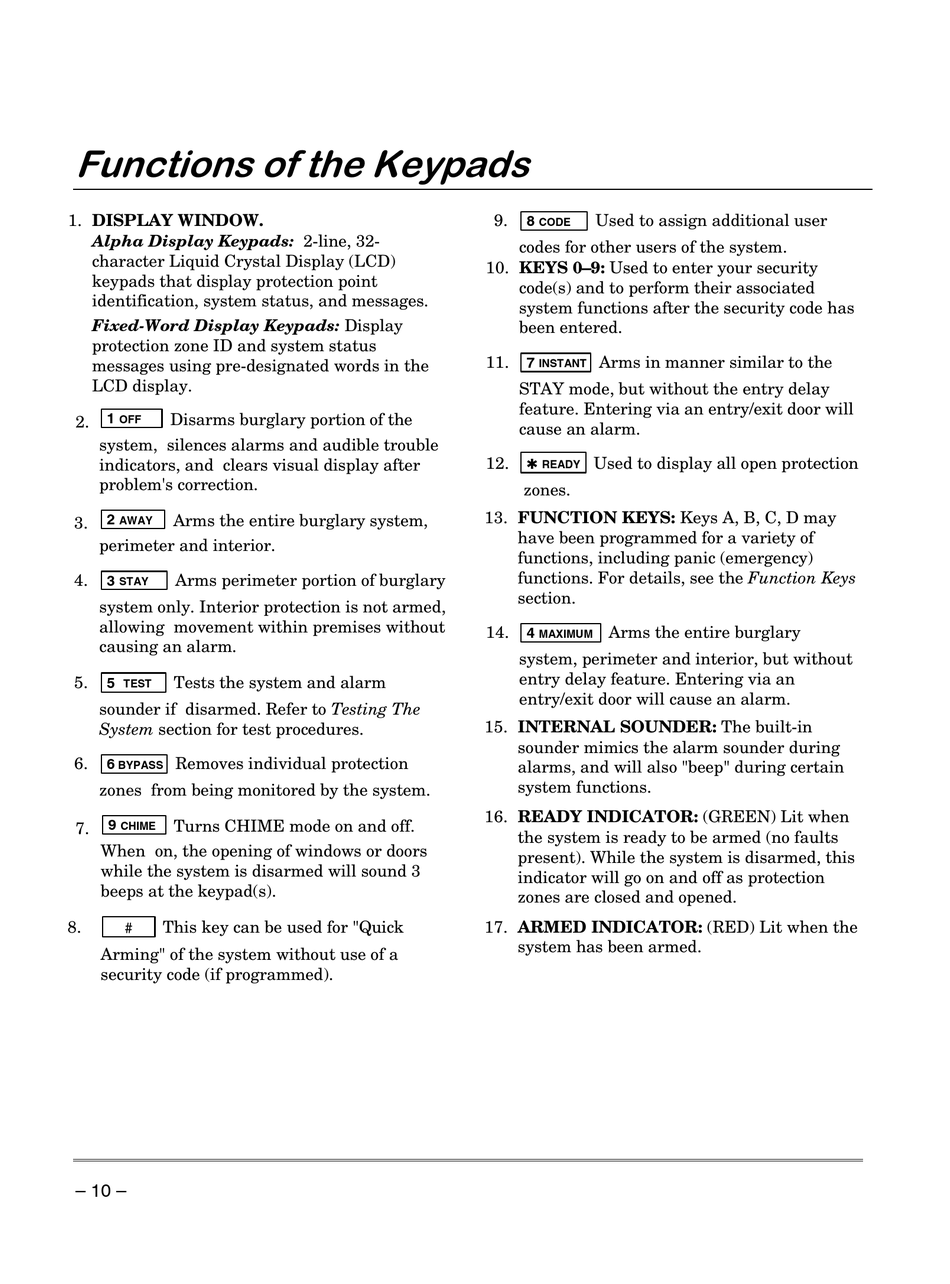

First Alert FA168C-CN User Manual page 10

1. DISPLAY WINDOW.
Alpha Display Keypads: 2-line, 32-
character Liquid Crystal Display (LCD)
keypads that display protection point
identification, system status, and messages.
Fixed-Word Display Keypads: Display
protection zone ID and system status
messages using pre-designated words in the
LCD display.
Disarms burglary portion of the
2.
system, silences alarms and audible trouble
indicators, and clears visual display after
problem's correction.
Arms the entire burglary system,
3.
perimeter and interior.
4. Arms perimeter portion of burglary
system only. Interior protection is not armed,
allowing movement within premises without
causing an alarm.
5. Tests the system and alarm
sounder if disarmed. Refer to Testing The
System section for test procedures.
6. Removes individual protection
zones from being monitored by the system.
Turns CHIME mode on and off.
7.
When on, the opening of windows or doors
while the system is disarmed will sound 3
beeps at the keypad(s).
#
8. This key can be used for "Quick
Arming" of the system without use of a
security code (if programmed).
9. Used to assign additional user
codes for other users of the system.
10. KEYS 0–9: Used to enter your security
code(s) and to perform their associated
system functions after the security code has
been entered.
11. Arms in manner similar to the
STAY mode, but without the entry delay
feature. Entering via an entry/exit door will
cause an alarm.
✱
12. Used to display all open protection
zones.
13. FUNCTION KEYS: Keys A, B, C, D may
have been programmed for a variety of
functions, including panic (emergency)
functions. For details, see the Function Keys
section.
14. Arms the entire burglary
system, perimeter and interior, but without
entry delay feature. Entering via an
entry/exit door will cause an alarm.
15. INTERNAL SOUNDER: The built-in
sounder mimics the alarm sounder during
alarms, and will also "beep" during certain
system functions.
16. READY INDICATOR: (GREEN) Lit when
the system is ready to be armed (no faults
present). While the system is disarmed, this
indicator will go on and off as protection
zones are closed and opened.
17. ARMED INDICATOR: (RED) Lit when the
system has been armed.
