INSTALLATION INSTRUCTIONS
DL95M
Dinky Link™ Surface Mount
Universal Plasma\LCD\LED\CFL Friendly
IR Receiver
With Manual Sensitivity Adjustment
DESCRIPTION

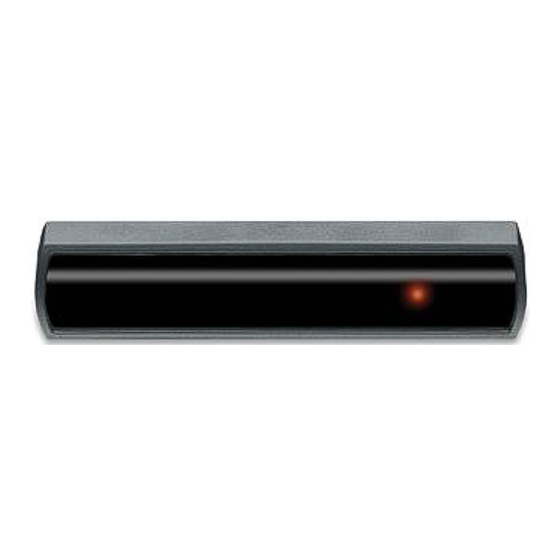

These small IR receivers have been designed for mounting in very small
spaces. They may be mounted under shelf edges, cabinet ledges, in wall
speakers, etc. – anywhere an inconspicuous appearance is desired. The high
sensitivity of these receivers allows placement behind speaker grilles and still
receive IR commands up to 100 feet away*.
FEATURES
•
Rear panel Sensitivity Adjustment for various ambient lighting conditions.
•
Ultra-wide band remote carrier frequency range.
•
Wire channel for clean installation.
•
System testing red-talk-back LED.
•
Includes 3-Terminal Block for easy extension to remote room locations.
SPECIFICATIONS
•
Infrared carrier frequency bandwidth: 25 - 100 kHz.
•
Reception range: Up to 100 feet.*
•
Reception angle: +/- 60 degrees.
•
Cable requirements: See "INSTALLATION" below.
•
Max. Transmission length: 1 mile using 18 gauge wire.
•
Maximum current output: 100mA.
•
Drives IR emitters through Xantech Connecting Blocks, Controllers, etc.
•
Dimensions: 2.55" x 0.55" x 0.35" (65mm x 14mm x 9mm).
•
Power requirements: +12VDC, 10mA.
* Depending on remote control output strength and ambient conditions.
MOUNTING
The IR receiver can be mounted to any flat surface, using the two-sided
adhesive tape supplied. Two screws are included for mounting the 3-terminal
block provided with the IR receiver.
An additional feature is a wire channel on the rear of the surface mount IR
receiver. This will give the installer the ability to provide clean wire dressing in
any direction.
