Summary of Contents for Chamberlain LiftMaster Professional SLY2500

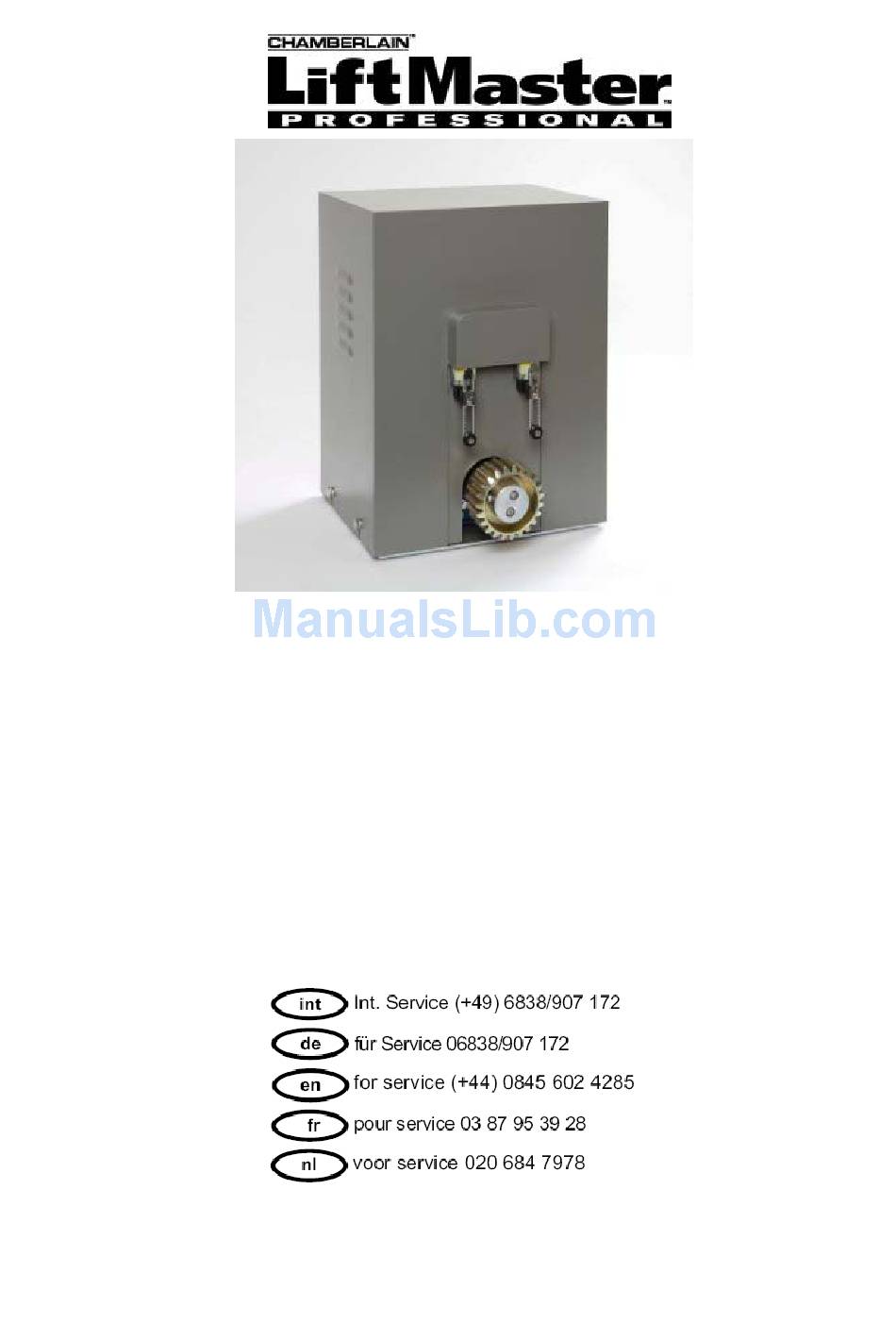

- Page 1 SLIDING GATE OPERATOR Installation SLY2500 For gates up to 2.500kg www.liftmaster.de Email: info@chamberlain.de Chamberlain GmbH Alfred Nobel Strasse 4 D-66793 Saarwellingen Germany 11/2008-b...
- Page 2 BEFORE YOU BEGIN Make sure to leave sufficient space. Windload: Even light wind may cause the motor to reverse (safety-reverse) as the forces effecting the gate are very high. This applies especially to solid panel gates. Gate Size: Gate size is an important factor. Wind can slow down gate or distort it, leading to higher amount of required force.
- Page 3 Model Number: SLY2500 SLY2500E2 Controller none CB400 Max. Gate weight (kg) 2500kg 2500kg Motor Protection Switch Hold to run function Automatic function IR-Sensor Automatic close yes* Flashing Light yes* Safety edges yes* Emergency Stop yes* Radio external External Light switching function...
-
Page 4: Initial Operation
DRIVE RELEASE MECHANISM (MANUAL OPERATION) The drive is equipped with a lockable release mechanism to enable the gate to be operated manually during a power out. Open Door 1. Open lock with key 2. Push on lock to open 3. Turn opening lever into position Disengage gear: Turn knob fully inside (clockwise). -
Page 5: Declaration Of Conformity
Declaration of Conformity Automatic Gate Opener Models……… SLY2500 are in conformity to the applicable sections of Standards: EN55014 • EN61000-3 • EN60555, EN60335-1 • ETS300 683 • EN60335-1: 2002 • EN60335-2-103: 2003 • EN55014-1: 2000 + A1 + A2 • EN55014-2: 2001 • EN61000-3-2: 2000 • EN61000-3-3: 1995 + A1 •... -
Page 6: Installation Instructions
CONTROL BOARD KIT CB400 AC SLIDING GATE OPERATORS -Installation Instructions- www.liftmaster.de Email: info@chamberlain.de Chamberlain GmbH Alfred Nobel Strasse 4 D-66793 Saarwellingen Germany... - Page 7 These instructions describe the installation and options for the product CB400 (control board AS210B): Some features require the optional ZM-SKS plug in logic board to work. This manual should only be used together with SLY2500 and SLY3500 operators! For mechanical installation of the operator use the instruction included with the operator.
- Page 8 FEATURES Type of gate motor used SLY2500 SLY3500 Motor Voltage 230Volt 400Volt Controller (CB400 kit) AS210B AS210B Max. Gate weight (kg) 2500kg 3500kg Motor Protection Switch Thermal protection (internal) Hold to run function Automatic function IR-Sensor Radio external external Automatic close...
-
Page 9: Installation Of Control Board
Installation of control board: The assembly instructions assume that there is no control board pre-installed. General steps: 1. Remove cover of operator 2. Remove control board box cover Compare general pre-assembly of control board • Picture 1: 230Volt 1-Phase motor assembly •... - Page 10 Circuit diagram for mains connection and motor 400 V / 3-phase Thermal fuse, control voltage Thermal overload protection for motor Protection OPEN Protection CLOSE Motor (400 V / 50 Hz / 3-phase) Safety limit switch OPEN (NC contact) Safety limit switch CLOSE (NC contact) Safety switch, emergency manual operation (NC contact)
- Page 11 Circuit diagram for mains connection and motor 230V / 1-phase Thermal fuse, control voltage Thermal overload protection for motor Protection OPEN Protection CLOSEM Motor (230 V / 50 Safety limit switch OPEN (normally closed contact) Safety limit switch CLOSE (normally closed contact) Safety switch, emergency manual operation (normally closed contact)
-
Page 12: General Connections
GENERAL CONNECTIONS: Terminals X5 and X2 Limit switches 1. Limit switch OPEN 2. Limit switch CLOSE xx?? 4. Pre-limit switch CLOSE (after activation the door does not reverse) 5. Thermal overload protection for motor 6. Emergency operation (normally closed contact) 7. -
Page 13: More Options
Three more photocells or safety edges may be connected and monitored independently, Type suitable 8.2KOhm type or mixed with 2-wire Chamberlain photocells. The interface box can be connected to any terminal and connected to the safety output protecting the opening OR the closing direction. -
Page 14: Other Settings
OTHER SETTINGS X6 Socket Socket for an external 3-way switch. If the terminal is not used by a connector plug the stop jumper marked on J4 must be inserted. X8 Socket Socket for coiled (spiral) cable. If the terminal is not used by a connector plug the jumper marked on J3 must be inserted. - Page 15 Declaration of Conformity Gate Control Board for SLY2500 and 3500……… AS210B is in conformity to the applicable sections of Standards: EN55014 • EN61000-3 • EN60555, EN60335-1 • ETS300 683 • EN60335-1: 2002 • EN60335-2-103: 2003 •...
