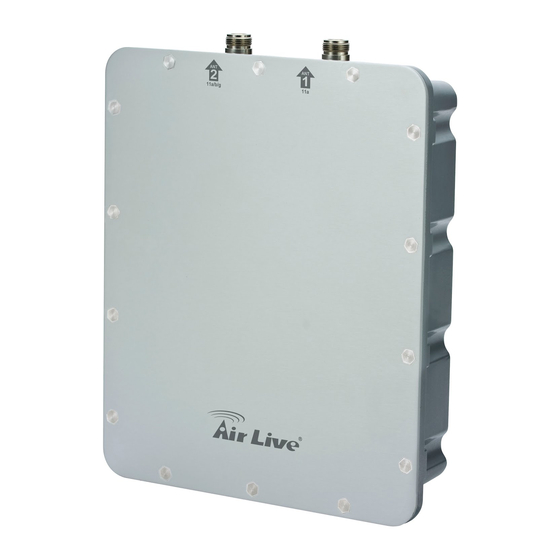

AirLive WH-9200AP User Manual

802.11a/b/g dual radio wireless base station
Hide thumbs Also See for WH-9200AP:
Table of Contents

Advertisement

Quick Links

Download this manual
WH-9200AP
802.11a/b/g Dual Radio Wireless
Base Station
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WH-9200AP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AirLive WH-9200AP

Summary of Contents for AirLive WH-9200AP

  • Page 1 WH-9200AP 802.11a/b/g Dual Radio Wireless Base Station User’s Manual...
  • Page 2 OvisLink Corp. has made the best effort to ensure the accuracy of the information in this user’s guide. However, we are not liable for the inaccuracies or errors in this guide. Please use with caution. All information is subject to change without notice All Trademarks are properties of their respective holders. AirLive WH-9200AP User’s Manual...
  • Page 3 United States. The use of the system in any other combination (such as co-located antennas transmitting the same information) is expressly forbidden. AirLive WH-9200AP User’s Manual...

  • Page 4: Table Of Contents

    1.1 Overview ....................3 1.2 Installing WH-9200AP................4 1.2.1 Package Content ..................4 1.2.2 Hardware Presentation ................4 1.2.3 Configuration Setups ...................8 2. Operation Mode of WH-9200AP ..............10 2.1 Change Operation Mode..............10 2.2 Dual AP Mode ..................11 2.3 Duplex Mode..................13 2.4 Dual WDS Bridge Mode..............15 2.5 Separate Bridge Mode ...............17...
  • Page 5 4. System Management ................64 4.1 Change Password ................64 4.2 System Management Settings ............65 4.3 SNMP Settings...................66 4.4 Firmware Upgrade ................68 4.5 Configuration Save and Restore............69 4.6 Reboot System ..................70 4.7 WH-9200AP Emergency Recovery............70 5. Specifications...................72 6. Wireless Network Glossary..............76 AirLive WH-9200AP User’s Manual...

  • Page 6: Introduction

    The WH-9200AP is equipped with 2 high-powered Atheros radios. The radio 1 runs in the 11a 5GHz mode only while the radio 2 runs at the 11a/b/g dual band mode. AirLive adds high power amplifier to run the AP at 23dBm in 11a mode (200mW), that’s 4 times the output power of normal 11a radio (50mW).

  • Page 7: Installing Wh-9200Ap

    This section describes the installation procedure for the WH-9200AP. It starts with a summary of the content of the package you have purchased, followed by steps of how to power up and connect the WH-9200AP. Finally, this section explains how to configure a Windows PC to communicate with the WH-9200AP.
  • Page 8 WLAN port when operate in Gateway mode Ground Pin Reference point for electric current Sluice Sluice out the water in device N-Type connector for outdoor antenna of Radio 1 N-Type connector for outdoor antenna of Radio 2 Antenna 2 Antenna 2 AirLive WH-9200AP User’s Manual...
  • Page 9 1. Introduction Pole Mount/Wall mount Installation AirLive WH-9200AP User’s Manual...
  • Page 10 1. Introduction Power Installation The following image shows the power installation of WH-9200AP. Note that WH-9200AP is IEEE802.3af compatible, you should use the packed POE kit or POE Switch for power injection. WH-9200AP AirLive WH-9200AP User’s Manual...

  • Page 11: Configuration Setups

    1. Introduction 1.2.3 Configuration Setups The factory default settings of WH-9200AP are as following: Settings Default Value Wireless1 Wireless2 Device Name WH-9200AP Radio 802.11a 802.11a SSID airlive1 airlive2 Channel 36 (auto in 802.11b/g) Disabled IP Address 192.168.1.1 DHCP Server Disabled. Available and default enabled when each of the wireless is configured as a gateway.
  • Page 12 1 Please make sure your computer IP is in the same subnet as the AP (i.e. 192.168.1.x). 2 Please make sure your computer has wireless network adapter installed. 3 Open the web browser and enter http://192.168.1.1/. 4. Connect Wireless Settings to start. AirLive WH-9200AP User’s Manual...

  • Page 13: Operation Mode Of Wh-9200Ap

    The WH-9200AP device provides all 14 modes of wireless operational applications with: 2.1 Change Operation Mode WH-9200AP is default in Dual AP mode. If the mode had been changed, click the “Operation Mode” button to change back. To change operation Mode: 1.

  • Page 14: Dual Ap Mode

    Click here to Operation Mode Selection Select Operation Mode Click “Change Mode” to change 2.2 Dual AP Mode In Dual AP mode, both wireless interface of WH-9200AP are set as AP and provide hotspot service on each interface. AirLive WH-9200AP User’s Manual...
  • Page 15 2. Operation Mode of WH-9200AP This Application provides wider coverage that difficult to be reached with a unique Omni antenna by using another adequate antenna such as sector antenna. It’s particularly suitable for WISP to provide stable and high performance link.

  • Page 16: Duplex Mode

    2. Operation Mode of WH-9200AP Both Radios has its own setting interface. AP Mode AP Mode To configure AP mode, please refer to Section 3.1 Access Point Mode. 2.3 Duplex Mode The duplex mode groups the two radios to double the bandwidth between two WH-9200APs.
  • Page 17 The image in Duplex mode UI helps to indicate data flow related to the Wireless and the Ethernet ports. Both radios are using WDS mode for communication. One WH-9200AP is configured as a Master where as the other WH-9200AP is configure to be a Slave. AirLive WH-9200AP User’s Manual...

  • Page 18: Dual Wds Bridge Mode

    To configure the WDS mode, Please refer to Section 3.2 WDS Bridge Mode …… 2.4 Dual WDS Bridge Mode In Dual WDS Bridge mode, both wireless interface of WH-9200AP are set as WDS Bridge and connect to remote network. When configured in the Dual WDS Bridge mode, a WH-9200AP allows solving discontinuous link due to geographical obstacles, shown as below and extension of distance between two WDS bridge nodes separated by a building.
  • Page 19 2. Operation Mode of WH-9200AP In this mode, the AP can act as a signal repeating station in a wireless backbone network. In addition, it can also function as directing station for NLOS application. The image in Duplex WDS Bridge mode UI helps to indicate data flow related to the Wireless and the Ethernet ports.

  • Page 20: Separate Bridge Mode

    2. Operation Mode of WH-9200AP Both radios are using WDS mode for communication. WDS Mode WDS Mode To configure the WDS mode please refer to section 3.2 WDS Bridge Mode …… 2.5 Separate Bridge Mode The Separate Bridge separates the device into 2 IP segments. Radio 1 and LAN 3 are in IP segment of 192.168.1.x/24 and Radio 2 and LAN1, LAN2 are in IP segment of 192.168.2.x.

  • Page 21: Ap + Client / Client + Ap Mode

    2. Operation Mode of WH-9200AP In this application, both Radio 1 and Radio 2 are in WDS Bridge Mode. The image in Separate WDS Bridge mode UI helps to indicate data flow related to the Wireless and the Ethernet ports.
  • Page 22 2. Operation Mode of WH-9200AP In this application, Either Radio 1 or Radio 2 is in AP Mode, the other Radio is in Client mode. The image in AP + Client / Client + AP mode UI helps to indicate data flow related to the Wireless and the Ethernet ports.

  • Page 23: Ap + Wds Bridge / Wds Bridge + Ap Mode

    2. Operation Mode of WH-9200AP The UI example of AP + Client is as following: Client Mode Access Point Mode To configure the AP mode, please refer to Section 3.1 Access Point Mode…… To configure the Client mode, please refer to Section 3.3 Client Mode ……...
  • Page 24 2. Operation Mode of WH-9200AP WH-9200AP In this mode, the AP can act as a signal repeating station in a wireless backbone network. In addition, it can also function as directing station for NLOS application. The image in AP + WDS Bridge / WDS Bridge + AP mode UI helps to indicate data flow related to the Wireless and the Ethernet ports.

  • Page 25: Wds + Gateway / Gateway + Wds Mode

    2. Operation Mode of WH-9200AP The UI example of AP + WDS Bridge is as following: WDS Mode Access Point Mode To configure the AP mode, Please refer to Section 3.1 Access Point Mode …… To configure the WDS mode, Please refer to Section 3.2 WDS Bridge Mode ……...
  • Page 26 2. Operation Mode of WH-9200AP The remote location can access the internet by way of this Access Point which acts as a gateway device of the network. The image in WDS + Gateway / Gateway + WDS mode UI helps to indicate data flow related to the Wireless and the Ethernet ports.

  • Page 27: Ap + Gateway / Gateway + Ap Mode

    2. Operation Mode of WH-9200AP The UI example of AP + WDS Bridge is as following: WDS Mode Access Point Router To configure the AP mode, Please refer to Section 3.1 Access Point Mode …… To configure the WDS mode, Please refer to Section 3.2 WDS Bridge Mode ……...
  • Page 28 2. Operation Mode of WH-9200AP The remote location can access the internet by way of this Access Point which acts as a gateway device of the network. The image in AP + Gateway / Gateway + AP mode UI helps to indicate data flow related to the Wireless and the Ethernet ports.

  • Page 29: Ap + Wisp / Wisp + Ap Mode

    2. Operation Mode of WH-9200AP AP Mode AP Mode Router / WAN To configure the AP mode, Please refer to Section 3.1 Access Point Mode …… To configure the WDS mode, Please refer to Section 3.2 WDS Bridge Mode ……...
  • Page 30 2. Operation Mode of WH-9200AP WH-9200AP WH-9200AP WH-9200AP The remote location can access the internet by way of this Access Point which acts as a gateway device of the network. The image in AP + Gateway / Gateway + AP mode UI helps to indicate data flow related to the Wireless and the Ethernet ports.
  • Page 31 2. Operation Mode of WH-9200AP Client Mode AP Mode Router / WAN To configure the AP mode, Please refer to Section 3.1 Access Point Mode …… To configure the Client mode, Please refer to Section 3.3 Client Mode …… To configure the Gateway (Router) mode, Please refer to Section 3.4 Gateway Mode ……...

  • Page 32: Wireless Settings

    SSID in the network. This prevent an un-welcomed client survey your radio. Mode: Connection modes on WH-9200AP and its wireless client. Note that the client must support the same AirLive WH-9200AP User’s Manual...

  • Page 33: Wds Bridge Mode

    3. Wireless Settings mode as WH-9200AP to connect. Channel: 11a supports channel 36 to 64 and channel 100 to 140. 11g depends on the country, USA/Canada supports channel 1 to 11, Europe supports channel 1 to 13, Japan supports channel 1 to 13, France supports channel 10 to 13, and Span supports channel 10 to 11.
  • Page 34 WH-9200AP. 2. Only WEP security allowed in WDS mode, note that the remote node must use same security configuration as your WH-9200AP to communicate. 3. Click “ADD” button, the configured information of remote node shows. AirLive WH-9200AP User’s Manual...

  • Page 35: Client Mode

    AP. Users can connect PC or local LAN to the Ethernet port of local LAN to the Ethernet port of the client mode AP. This mode is mostly used as a CPE device for WISP subscriber. AirLive WH-9200AP User’s Manual...
  • Page 36 WISP + AP. 1. To connect to an access point, use the “Site Survey” button to find the Access Point. 2. The Site Survey pop up window then shows up and lists available access point with relative information. AirLive WH-9200AP User’s Manual...
  • Page 37 “ASSOCIATE” button. 3. The Signal Survey pop up windows shows as following: 4. After the access point is selected, its SSID shows automatically in the Network ID (SSID) field. AirLive WH-9200AP User’s Manual...

  • Page 38: Gateway (Ap Router) Mode

    To configure the Advanced Settings, please refer to Section 3.8…… 3.4 Gateway (AP Router) Mode In Gateway mode, router functions are added between one Ethernet port and other network interfaces. Therefore, the ISP subscriber can share the ISP connection without need for extra router. AirLive WH-9200AP User’s Manual...
  • Page 39 3. Wireless Settings Local Area Network Gateway Mode Internet Gateway mode acts both in AP and Router which included in these operation modes: AP + Gateway and Gateway + AP. AirLive WH-9200AP User’s Manual...

  • Page 40: Wan Port Settings

    3.4.1 WAN Port Settings Click the Setup button to configure the WAN interface. WH-9200AP provides 4 methods for client to access the internet. This depends on the location and the service which the ISP provides. You need to contact the ISP for detail information.
  • Page 41 PC/Laptop/Server to access the internet, you can use the Clone MAC address to solve this issue. Copy either MAC of the PC/Laptop/Server which needs to access the internet in the MAC address fields. AirLive WH-9200AP User’s Manual...

  • Page 42: Dhcp Server Settings

    3.4.2 DHCP Server Settings DHCP Server Settings is to assign private IP address to the devices in your local area network (LAN). Note that WH-9200AP keeps the IP address of 192.168.1.1 and act as the default gateway of the LAN.

  • Page 43: Dmz & Virtual Server

    You can use DMZ and Virtual Server Settings to provide connection on internet. For example, you can have your own web server at home and provide access on internet. This will need port 80 by default for Virtual Server Settings. AirLive WH-9200AP User’s Manual...

  • Page 44: Ip Filter Settings

    IP filtering is simply a mechanism that decides which types of IP datagrams will be processed normally and which will be discarded. This allows you to define rules for allowing / denying access from / to the Internet. AirLive WH-9200AP User’s Manual...

  • Page 45: Ip Routing Settings

    To grant or deny IP address, select ADD or Delete Selected. 3.4.5 IP Routing Settings The IP Routing Settings allows you to configure routing feature in the gateway, the settings is normally no need to change in gateway mode. AirLive WH-9200AP User’s Manual...
  • Page 46 3. Wireless Settings AirLive WH-9200AP User’s Manual...

  • Page 47: Dynamic Dns (Ddns) Settings

    The Remote Management setting allows you to enable web server access from internet, note that this needs to configure a virtual server for your WH-9200AP. You can enable to the “Response to WAN Ping” to allow remotely ping your WH-9200AP.

  • Page 48: Wisp Mode

    WISP mode acts both in AP and Router which included in these operation modes: AP + WISP and WISP + AP. In WISP + AP mode, the Radio 1 is actually a wireless client of the WISP wireless node and also the gateway of the local area network. AirLive WH-9200AP User’s Manual...
  • Page 49 To configure the AP mode, Please refer to Section 3.1 Access Point Mode …… To configure the WDS mode, Please refer to Section 3.3 Client Mode …… To configure the Gateway (Router) mode, Please refer to Section 3.4 Gateway Mode …… AirLive WH-9200AP User’s Manual...

  • Page 50: Wireless Security

    Once you enable the WEP function, please make sure that both the WH-9200AP and the wireless client stations use the same key. Some wireless client cards only allow Hexadecimal digits for WEP keys.
  • Page 51 After you have finished the configuration wizard, you have to configure the RADIUS Settings in Advanced Settings in order to make the 802.1x function work. Share secret is the key for AP to communicate with RADIUS server, check with your Authentication provider for more details. AirLive WH-9200AP User’s Manual...
  • Page 52 WEP keys. It does not require a RADIUS server in order to provide association authentication, but you do have to enter a shared key for the authentication purpose. The encryption key is generated automatically and dynamically. AirLive WH-9200AP User’s Manual...
  • Page 53 Pre-shared Key: This is an ASCII string with 8 to 63 characters. Please make sure that both the WH-9200AP and the wireless client stations use the same key. Encryption Type: There are two encryption types TKIP and CCMP (AES). While CCMP provides better security than TKIP, some wireless client stations may not be equipped with the hardware to support it.
  • Page 54 The shorter the interval is, the better the security is. The default is 300 sec. WPA2-PSK Enter the Pre-shared Key to initiate WPA2 security. All devices try to access the network should have the matching encryption key. AirLive WH-9200AP User’s Manual...
  • Page 55 Pre-shared Key: This is an ASCII string with 8 to 63 characters. Please make sure that both the WH-9200AP and the wireless client stations use the same key. Encryption Type: There are two encryption types TKIP and CCMP (AES). While CCMP provides better security than TKIP, some wireless client stations may not be equipped with the hardware to support it.
  • Page 56 The shorter the interval is, the better the security is. The default is 300 sec. WPA-PSK-AUTO WPA-PSK-AUTO tries to authenticate wireless clients using WPA-PSK or WPA2-PSK. AirLive WH-9200AP User’s Manual...

  • Page 57: Advanced Wireless Settings

    Pre-shared Key: This is an ASCII string with 8 to 63 characters. Please make sure that both the WH-9200AP and the wireless client stations use the same key. Encryption Type: There are two encryption types TKIP and CCMP (AES). While CCMP provides better security than TKIP, some wireless client stations may not be equipped with the hardware to support it.
  • Page 58 2346. If you experience a high packet error rate, you should slightly decrease the Fragmentation Threshold. DTIM Interval: The WH-9200AP buffers packets for stations that operate in the power-saving mode. The Delivery Traffic Indication Message (DTIM) informs such power-conserving stations that there are packets waiting to be received by them.
  • Page 59 In the field of “Distance”, input the distance in “meters”. After input the distance value, move the cursor to any place on the pop-up window out of three fields. The calculated value will display. The ACK value then shows up after calculating AirLive WH-9200AP User’s Manual...

  • Page 60: Access Control

    12500m. 3.8 Access Control The WH-9200AP allows you to define a list of MAC addresses that are allowed or denied to access the wireless network. Click on the setup button of “Access Control” of selected wireless interface.
  • Page 61 To add a MAC address into the table, enter a Mnemonic Name and the MAC Address, and then click ADD. The table lists all configured MAC Filter entries. To delete entries, check the corresponding Select boxes and then press DELETE SELECTED. AirLive WH-9200AP User’s Manual...

  • Page 62: Bandwidth Control

    Bandwidth Control is a great tool to control the bandwidth of the WISP subscribers. Therefore, the WISP operators can offer different class of connection speeds for different subscription fees - just like the ADSL service! The AirLive advance firmware can control the bandwidth by Interface or IP/MAC.

  • Page 63: Total Bandwidth Control

    Internet ADSL / Cable ADSL / Cable Modem Modem In this example, total uplink bandwidth of the 3 clients is limited to 512kbps and the total download bandwidth of the 3 clients is limited to 1024kbps. AirLive WH-9200AP User’s Manual...

  • Page 64: Per User Bandwidth Control

    3 wired clients share downlink and uplink bandwidth. Internet 1024K 512K In this example, total uplink bandwidth of the 3 clients is limited to 512kbps and the total download bandwidth of the 3 clients is limited to 1024kbps. 3.9.2 Per user Bandwidth Control AirLive WH-9200AP User’s Manual...
  • Page 65 Description: You can preset your control type and named on the type. Type: Three types to be selected: IP Address, IP Segment and MAC Address. IP Segment allows you to set bandwidth limitation on an IP range. AirLive WH-9200AP User’s Manual...

  • Page 66: Multiple Ssid + Vlan

    VLAN 2 VLAN 2 VLAN 1 VLAN 2 In the above example, laptops in VALN 1 can only communicate with those in VLAN 1 and laptops in VALN 2 can only communicate with those in VLAN 2. AirLive WH-9200AP User’s Manual...

  • Page 67: System Management

    It’s recommended to set your own password instead of using default factory password. The default factory password is “airlive” all letters are in lower case. To change the password, press the Password Settings button to enter the Password Settings screen; then enter the Current Password followed by the New Password twice.

  • Page 68: System Management Settings

    The WH-9200AP allow you to change the parameter of manage the system. HTTP Port No.: This is to change the management web port of WH-9200AP. By default, the port number is 80 and we type http://192.168.1.1 in the browser to access the management web page.

  • Page 69: Snmp Settings

    4. System Management Syslog: If the Syslog is Enabled, WH-9200AP create a log in the system log table when encounters an error or warning condition. This apply to IETF (Internet Engineering Task Force - the Internet standards body)-conformant standard for logging system events (RFC-3164) Syslog server IP address: The Syslog can also send to the identified IP address.
  • Page 70 4. System Management System Name: A name that you assign to your WH-9200AP for SNMP software. It is an alphanumeric string of up to 30 characters. System Location: Enter a system location. Information for SNMP software. System Contact: Contact information for the system administrator responsible for managing your WH-9200AP.

  • Page 71: Firmware Upgrade

    To enable a trap manager, check the Enable box in the corresponding entry; to disable it, un-check the Enable box. Some extra feature of WH-9200AP does not show in the wizard because some higher knowledge of parameters of them is required. They are classified in the tab of “Advances Setting”, such as the Multi SSID for VLAN setting and 802.11e QoS configuration.

  • Page 72: Configuration Save And Restore

    (or click Browse to locate the firmware file). Next, Click the Upgrade button to start. The new firmware will be loaded to your WH-9200AP. After a message appears telling you that the operation is completed, you need to reset the system to have the new firmware take effect.

  • Page 73: Reboot System

    2. Copy the tftpd32.exe of the downloaded file to C:\. 3. Change the IP address of your PC to 192.168.1.254 / 255.255.255.0 4. Copy the WH-9200AP firmware to C:\ and rename the firmware to “zImage”. Note that the name must be zImage and no extension.
  • Page 74 8. Push the “Reset” button until the “Status” LED off and on again and release the “Reset” button. 9. If the above process success, the WH-9200AP LAN LED keep flashing and the tftp serve shows file download information. 10. It takes around 5 minutes to download firmware and around 5 minutes to update the firmware.

  • Page 75: Specifications

    5. Specifications Specifications The specification of WH-9200AP is subject to change without notice. Please use the information with caution. Feature 1 x 108Mbps 11a Radio + 1 x 108Mbps 11a/b/g Radio Atheros Super A and Super G Support High Output Power in 11a(23dB) and 11g/b Mode(23dB in America, 20dB in EU)

  • Page 76: Power Supply

    Atheros Proprietary Super A/G mode 802.11a Orthogonal Wireless transfer Data Rate with Automatic Fallback 802.11b: 1, 2, 5.5, 11Mbps 802.11g: 1, 2, 5.5, 11, 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54Mbps AirLive WH-9200AP User’s Manual...

  • Page 77: Output Power

    Client Isolation supported SNMP v1/v2 support Support adjustable output power ACK Timeout setting User Limitation (Static Load Balancing) Multiple SSID, VLAN, QoSWPA with PSK/TKIP/AES support ,WPA2 support 152-bit WEP support (Atheros Proprietary) Super A/G mode support (Atheros Proprietary) AirLive WH-9200AP User’s Manual...
  • Page 78 5. Specifications Bootloader Protection and Emergency Firmware Upload Code in bootloader Radius Support HTB QoS P2P Bandwidth Control Product Weight (g) 1105 g Product Size (L x W x H mm) 225 x 122 x 225 mm AirLive WH-9200AP User’s Manual...

  • Page 79: Wireless Network Glossary

    Spanning Tree Protocol. It is an algorithm to prevent network from forming. The STP protocol allows net work to provide a redundant link in the event of a link failure. It is advise to turn on this option for multi-link bridge network. AirLive WH-9200AP User’s Manual...
  • Page 80 When a supplicants request a service, the authenticator will pass the request and wait for the authentication server to grant access and register accounting. The 802.1x is the most widely used method of authentication by WISP. AirLive WH-9200AP User’s Manual...
  • Page 81 This is especially true for 802.11a and 802.11g networks. Setting the correct ACK timeout value needs to consider 3 factors: distance, AP response time, and interference. The WH-9200AP provides ACK adjustment capability in form of either distance or direct input. When you enter the distance parameter, the WH-9200AP will automatically calculate the correct ACK timeout value.
  • Page 82 WISP. The opposite of CPE is CO. Clear To Send. A signal sent by a device to indicate that it is ready to receive data. DDNS Dynamic Domain Name System. An algorithm that allows the use of dynamic IP address AirLive WH-9200AP User’s Manual...
  • Page 83 Domain Name The unique name that identifies an Internet site. Domain Names always have 2 or more parts, separated by dots. In www.airlive.com, the "airlive.com" is the doman name. DoS Attack Denial of Service. A type of network attack that floods the network with useless traffic.
  • Page 84 IP subnet together. In a LAN environment with an IP sharing router, the gateway is the router. In an office environment, gateway typically is a multi-function device that integrates NAT, firewall, bandwidth management, and other security functions. AirLive WH-9200AP User’s Manual...
  • Page 85 Transport mode encrypts only the data of each packet, but leaves the header untouched. The more secure Tunnel mode encrypts both the header and the payload. On the receiving side, an IPSec-compliant device decrypts each packet. LACP (802.3ad) Trunking AirLive WH-9200AP User’s Manual...
  • Page 86 The IP that a router gets from the ISP side is called Real IP, the IP assigned to PC under the NAT environment is called Private IP. Node A network connection end point, typically a computer. AirLive WH-9200AP User’s Manual...
  • Page 87 Windows PPTP client, the remote VPN server must support MPPE (Microsoft Point-To-Point Encryption Protocol) encryption. PPTP is also used by some ISP for user authentication, particularly when pairing with legacy Alcatel / Thomson ADSL modem. AirLive WH-9200AP User’s Manual...
  • Page 88 Router An IP sharing router is a device that allows multiple PCs to share one single broadband connection using NAT technology. A wireless router is a device that combines the AirLive WH-9200AP User’s Manual...
  • Page 89 It is a replacement for rlogin, rsh, rcp, and rdist. Secure Sockets Layer. It is a popular encryption scheme used by many online retail and banking sites to protect the financial integrity of transactions. When an SSL session AirLive WH-9200AP User’s Manual...
  • Page 90 In Static Turbo, the channel binding is always on. This protocol may be combined with Super-A model to increase the performance even more. The used of channel binding might be prohibited in EU countries. AirLive WH-9200AP User’s Manual...
  • Page 91 ISPs in order to keep the user navigating only specific areas of the Web Wide Area Network. A communication system of connecting PCs and other computing devices across a large local, regional, national or international geographic area. A WAN AirLive WH-9200AP User’s Manual...
  • Page 92 The most popular standard for WLAN is the 802.11 standards. Wi-Fi Multimedia (WMM) is a standard to prioritize traffic for multimedia applications. The WMM prioritize traffic\ on Voice-over-IP (VoIP), audio, video, and streaming media as well AirLive WH-9200AP User’s Manual...
  • Page 93 The WPA-PSK utilizes pre-share key for encryption/authentication. WPA2 Wi-Fi Protected Access 2. WPA2 is also known as 802.11i. It improves on the WPA security with CCMP and AES encryption. The WPA2 is backward compatible with WPA. WPA2-PSK utilizes pre-share key for encryption/authentication. AirLive WH-9200AP User’s Manual...
