- Page 1 WL-5450AP Wireless Access Point User’s Manual AirLive WL-5450AP User’s Manual...
- Page 2 This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures. All trademarks and brand names are the property of their respective proprietors. Specifications are subject to change without prior notification. AirLive WL-5450AP User’s Manual...
-
Page 3: Declaration Of Conformity
OvisLink Corp. 5F., NO.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County, Taiwan Declare that the product Wireless AP AirLive WL-5460AP , WL-5450AP is in conformity with In accordance with 89/336 EEC-EMC Directive and 1999/5 EC-R & TTE Directive Clause Description Electromagnetic compatibility and Radio spectrum Matters (ERM);... - Page 4 1999/5/CE. Ar šo OvisLink Corp. deklarē, ka AirLive WL- Hér með lýsir OvisLink Corp yfir því að AirLive WL- Latviski [Latvian] 5460AP / WL-5450AP atbilst Direktīvas Íslenska [Icelandic] 5460AP / WL-5450AP er í samræmi við grunnkröfur 1999/5/EK būtiskajām prasībām un citiem ar to...
-
Page 5: Table Of Contents
4.3.5 Site Survey .............................. 24 4.3.6 WDS Setting .............................. 24 4.4 TCP/IP ................................... 26 4.4.1 Basic ................................ 26 4.5 O THER .................................. 28 4.5.1 Upgrade Firmware ............................. 28 4.5.2 Save/Reload Settings .......................... 28 4.5.3 Password .............................. 29 AirLive WL-5450AP User’s Manual... -
Page 6: Chapter I: Introduction

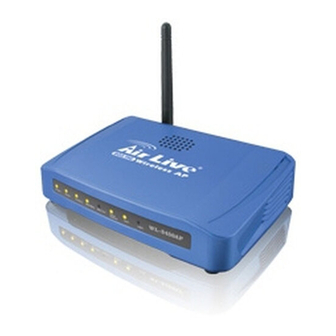

Chapter I: Introduction AirLive WL-5450AP is an IEEE802.11b/g compliant 11 Mbps & 54 Mbps Ethernet Wireless Access Point. The Wireless Access Point is equipped with two 10/100 M Auto-sensing Ethernet ports for connecting to LAN and also for cascading to next Wireless Access Point. -
Page 7: Application
1.2 Application Example 1 Example 2 AirLive WL-5450AP User’s Manual... -
Page 8: Parts Names And Functions
Orange Turn solid orange when Bridge or Bridge / Repeater is enabled. Repeater LAN 1 Turns solid green when linked to a Receiving/ Green local network. Sending data LAN 2 Table 1: LED Indicators AirLive WL-5450AP User’s Manual... - Page 9 Connects to Ethernet (Factory) Press over 3 seconds to reboot this device. Press for over 10 seconds to restore factory settings. RESET Performing the Factory Reset will erase all previously entered device settings. Table 2: Connection Ports AirLive WL-5450AP User’s Manual...
-
Page 10: Factory Default Settings
1.4 Factory Default Settings Setting Wireless Access Point Device Name WL-5450AP airlive SSID Default value: Channel Default value: Disabled IP Address 192.168.100. 252 AirLive WL-5450AP User’s Manual... -
Page 11: Chapter Ii: Hardware Connection
The Link/Act LED will be on in static when associated with a station and blink whenever this AP receives data packets in the air. If the Status LED glows after self-test , it means this Wireless Access Point fails on self test. Please ask your dealer for technical support. AirLive WL-5450AP User’s Manual... -
Page 12: Chapter Iii: About The Operation Modes
All stations can have the Internet access if only the Access Point has the Internet connection. See the sample application below. To set the operation mode to Access Point, please go to “Wireless Basic Settings”, in the “Mode” field click the down arrow to select AP mode. AirLive WL-5450AP User’s Manual... -
Page 13: Wds Repeater Mode
WDS Settings” to enable WDS. Note: To act as Bridge, both AP1 and AP2 must have WDS enabled and add each other as its WDS Access Point. (e.g. Add AP2’s MAC address to AP1’s “WDS AP List” and vice versa) AirLive WL-5450AP User’s Manual... -
Page 14: Client Mode (Infrastructure)
Access Point (AP2), and then can have the Internet access if the other Access Point (AP2) has the Internet connection. To set the operation mode to Client (Infrastructure), please go to “Wireless Basic Settings”, in the “Mode” field click the down arrow to select Client mode, and then select “Network Type” as “Infrastructure”. AirLive WL-5450AP User’s Manual... -
Page 15: Client Mode (Ad-Hoc)
Users can use this feature to build up a large wireless network in a large space like airports, hotels and schools …etc. This feature is also useful when users want to bridge networks between buildings where it is impossible to deploy network cable connections between these buildings. AirLive WL-5450AP User’s Manual... -
Page 16: Chapter Iv: Configuration
4.2 Status In this screen, you can see the current settings and status of this Access Point. You can change settings by selecting specific tab described in below. 4.2.1 System AirLive WL-5450AP User’s Manual... - Page 17 Current IP address for this Access Point Current Subnet mask for this Access Point br0 Subnet Mask Default Gateway for this Access Point br0 Default Gateway The MAC Address for this Access Point br0 MAC Address AirLive WL-5450AP User’s Manual...
-
Page 18: System Log
This page display log events with time when events happened, log events’ types, log sources and the description for events themselves. System manager can use the system log to trace when problems occur. 4.2.3 Statistics The Statistics table shows the packets sent/received over wireless and ethernet LAN respectively. AirLive WL-5450AP User’s Manual... -
Page 19: Wireless
BSS unless it can provide the unique SSID. An SSID is also referred to as a network name because essentially it is a name that identifies a wireless network. The AP’s domain determines the channel number. Region Domain AirLive WL-5450AP User’s Manual... -
Page 20: Advanced Settings
Press to discard the data you have entered since last time you press Apply Change. 4.3.2 Advanced Settings It is not recommended that settings in this page to be changed unless advanced users want to change to meet their wireless environment for optimal performance AirLive WL-5450AP User’s Manual... - Page 21 It will also confirm the requestor station that the Access Point has reserved it for the time-frame of the requested transmission. If the “Hidden Node” problem is an issue, please specify the packet size. The AirLive WL-5450AP User’s Manual...
- Page 22 802.11g operation. If there is no such kind of mechanism exists, the two kinds of standards may mutually interfere and decrease network’s performance. Apply Change Press to save the new settings on the screen. Press to discard the data you have entered since last time you press Apply Reset Change. AirLive WL-5450AP User’s Manual...
-
Page 23: Security
If Use 802.1x Authentication is selected, the RADIUS Server will proceed to check the 802.1x Authentication. Encryption: WEP If WEP is selected, users will have to Set WEP keys either manually, or select to Use 802.1x Authentication to make the RADIUS server to issue the WEP key dynamically. AirLive WL-5450AP User’s Manual... - Page 24 1812. IP Address: Enter the RADIUS Server’s IP Address provided by your ISP. Password: Enter the password that the AP shares with the RADIUS Server. Apply Change Press to save the new settings on the screen. AirLive WL-5450AP User’s Manual...
-
Page 25: Access Control
Delete All To delete all the clients from access to this Access Point, just press Delete All without selecting the checkbox. Reset If you have made any selection, press Reset will clear all the select mark. AirLive WL-5450AP User’s Manual... -
Page 26: Site Survey
(See page 19). Add WDS AP MAC Address: Enter the MAC Address for the Access Point to establish WDS Comment: You may enter up to 20 characters as a remark to the previous MAC Address. AirLive WL-5450AP User’s Manual... - Page 27 You can delete the WDS Access Points listed above by marking the checkbox. Delete All You can delete all of the WDS Access Points listed above. Reset Press to discard the data you have entered since last time you press Apply Change. AirLive WL-5450AP User’s Manual...
-
Page 28: Tcp/Ip
Client: Select to automatically get the LAN port IP address from ISP (For ADSL/Cable Modem). Server: Select to enable DHCP server function. DHCP Client WL-5450AP IP addresses continuing from 192.168.100.1 to 192.168.100.253 Range Click to show Active DHCP Client table. Show Client Enter the Domain Name Service IP address. - Page 29 You can specify the MAC address of your Access Point to replace the factory Address setting. Apply Change Press to save the new settings on the screen. Press to discard the data you have entered since last time you press Apply Reset Change. AirLive WL-5450AP User’s Manual...
-
Page 30: Other
This function enables users to save the current configurations as a file (i.e. config.dat) To load configuration from a file, enter the file name or click Browse… to find the file from your computer. Save Settings to File: Click SAVE.. to save the current configuration to file. AirLive WL-5450AP User’s Manual... -
Page 31: Password
It is case sensitive. Confirm Password Re-enter the new password for confirmation. Apply Change Press to save the new settings on the screen. Press to discard the data you have entered since last time you press Apply Change. Reset AirLive WL-5450AP User’s Manual... - Page 32 AirLive WL-5450AP User’s Manual...
