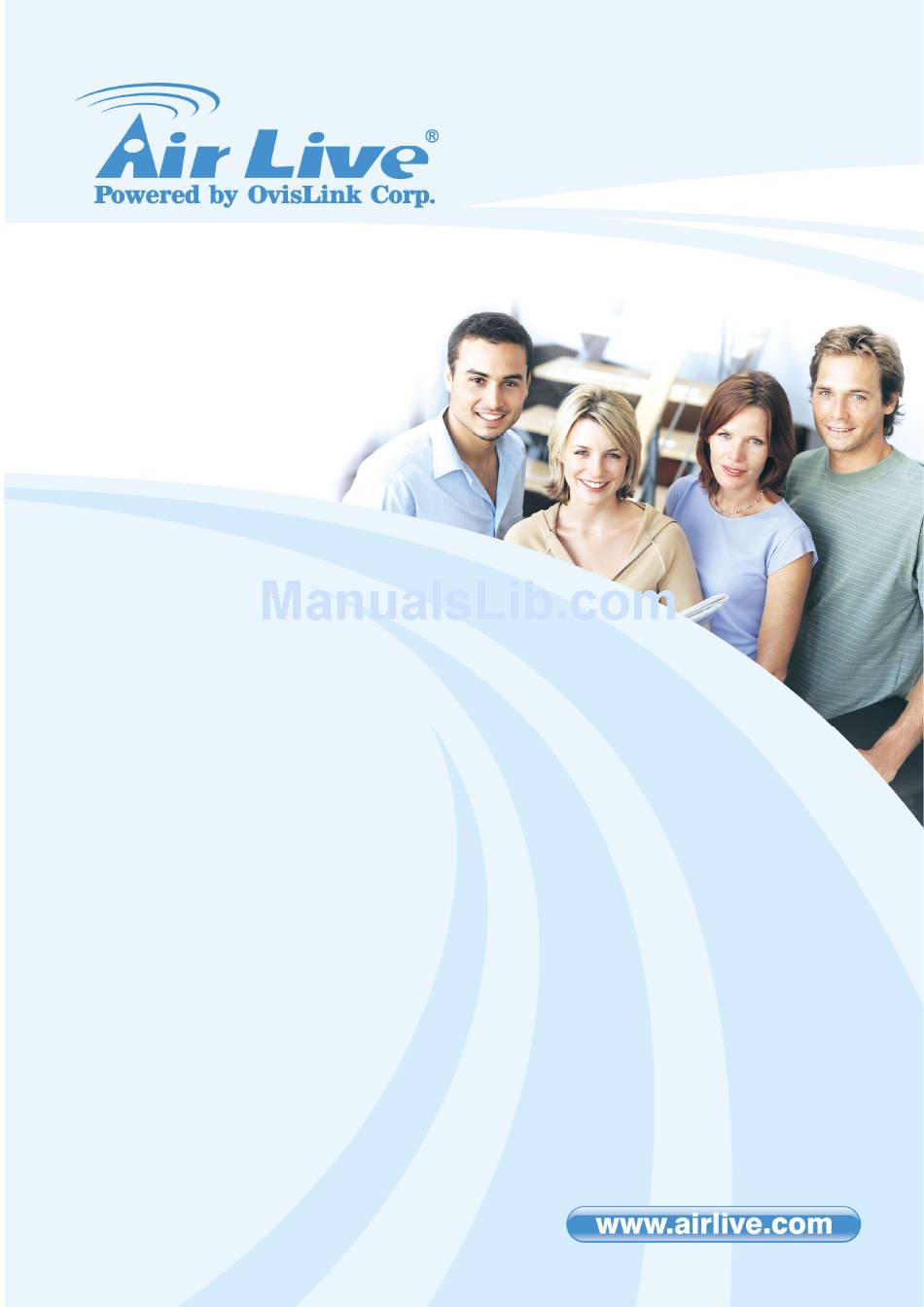

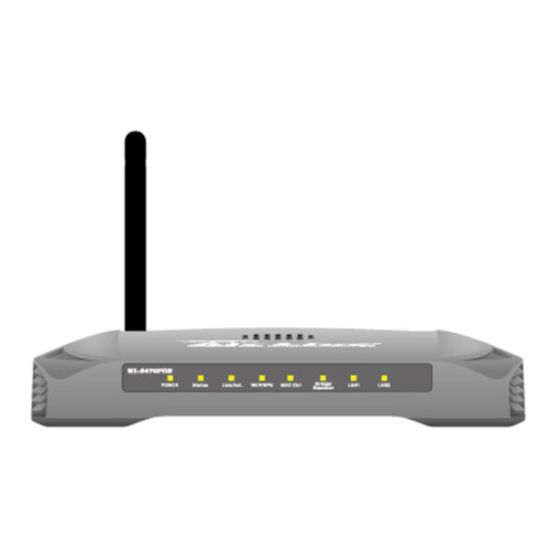

  • Page 1 WL-5470POE 54Mbps PoE Multi-Function Wireless AP User’s Manual...

  • Page 2: Declaration Of Conformity

    OvisLink Corp. 5F., NO.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County, Taiwan Declare that the product 802.11b/g Multi-Function Wireless Access Point AirLive WL-5470POE is in conformity with In accordance with 89/336/EC Directive and 1999/5 EC-R & TTE Directive Clause Description Electromagnetic compatibility and Radio spectrum Matters (ERM);...
  • Page 3 Directiva 1999/5/CE. disposiciones aplicables o exigibles de la Directiva 1999/5/CE. ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ OvisLink Corp. ΔΗΛΩΝΕΙ OvisLink Corp izjavlja, da je ta AirLive WL-5470POE v Ελληνική [Greek] ΟΤΙ AirLive WL-5470POE ΣΥΜΜΟΡΦΩΝΕΤΑΙ Slovensko skladu z bistvenimi zahtevami in ostalimi relevantnimi ΠΡΟΣ...

  • Page 4: Regulatory Information

    Regulatory Information Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 5: Table Of Contents

    Table of Contents 1. Introduction...........................4 1.1 Overview ........................4 1.2 Firmware Features .....................6 1.3 Installing WL-5470POE ....................9 1.3.1 Package Content....................9 1.3.2 Hardware Presentation ..................9 1.3.3 Configuration Setups ..................10 1.3.4 Hardware Connection ................... 11 2. Operation Mode ........................ 13 2.0 Change Operation Mode..................14 2.1 About the Operation Modes ..................
  • Page 6 4.6 NTP Settings......................68 5. System Status ........................69 5.1 System Data ......................69 5.2 Statistics........................70 Active Clients ......................... 70 6 System Recovery ....................... 71 7. Specification ........................72 Appendix Command Line Management................74 WL-5470 POE User’s Manual...

  • Page 7: Introduction

    ACK Timeout and TX Power Regulation The WL-5470POE features ACK timeout function to let you adjust the timeout value for long distance operation. In addition, 5-level TX power adjustment let you match different antennas for law compliance. The ability to set lower TX output power is also crucial if you want to match the AP with external power amplifier.
  • Page 8 Application Example 1 Example 2 WL-5470 POE User’s Manual...

  • Page 9: Firmware Features

    As a result, we are constantly upgrading our AP’s firmware to meet the changing demand of WISP operators. The firmware adds high end features not commonly found in the AP of this class. The AirLive multi-function Access Points not only work for long distance application, they work much better than the competitions.
  • Page 10 Therefore, the WISP operators can offer different class of connection speeds for different subscription fees - just like the ADSL service! The AirLive advance Traffic Control firmware can control the bandwidth by Interface or IP/MAC. Dynamic Signal Survey Function for Antenna Alignment...
  • Page 11 SSH login WL-5470POE provides SSH secure connection for remote management. The program SSH (Secure Shell) is a secure replacement for telnet. It provides an encrypted channel for logging into WL-5420POE over a network, executing commands on WL-5470POE from your workstation. SSH provides strong host-to-host and user authentication as well as secure encrypted communications over an insecure Internet.

  • Page 12: Installing Wl-5470Poe

    This section describes the installation procedure for the WL-5470POE. It starts with a summary of the content of the package you have purchased, followed by steps of how to power up and connect the WL-5470POE. Finally, this section explains how to configure a Windows PC to communicate with the WL-5470POE.

  • Page 13: Configuration Setups

    Press for over 10 seconds to restore factory settings. Performing the Factory Reset will erase all previously entered device settings. Table 2: Connection Ports 1.3.3 Configuration Setups The factory default settings of WL-5470POE are as following: Settings Default Value WL-5470POE Device Name Radio 802.11b/g...

  • Page 14: Hardware Connection

    1.3.4 Hardware Connection Note: Before you starting hardware connection, you are advised to find an appropriate location to place the Access Point. Usually, the best place for the Access Point is at the center of your wireless network, with line of straight to all your wireless stations.
  • Page 15 ．Check the LED: The Power and LAN # LED should be ON. LAN# LED will even blink if there is traffic. The Link/Act LED will be on in static when associated with a station and blink whenever this AP receives data packets in the air.

  • Page 16: Operation Mode

    2. Operation Mode The WL-5470POE device provides all 8 modes of wireless operational applications with: Mode Radio LAN 1 LAN 2 Client Client Bridge WDS Repeater WDS + AP Universal Repeater AP + Client WISP Client Router WISP + Universal...

  • Page 17: Change Operation Mode

    2.0 Change Operation Mode WL-5470POE is default in AP mode. If the mode had been changed, click the “Mode” button to change back. To change operation Mode: 1. Click on “Mode“ 2. Select Operation Mode in the main page 3. Reboot device 4.

  • Page 18: About The Operation Modes

    2.1 About the Operation Modes This device provides four operational applications with Access Point, Bridge, Client (Ad-hoc) and Client (Infrastructure) modes, which are mutually exclusive. This device is shipped with configuration that is functional right out of the box. If you want to change the settings in order to perform more advanced configuration or even change the mode of operation, you can use the web-based utility provided by the manufacturer as described in the following sections.

  • Page 19: Client Mode

    2.1.2 Client Mode If set to Client (Infrastructure) mode, this device can work like a wireless station when it’s connected to a computer so that the computer can send packets from wired end to wireless interface. Refer to the illustration below. This station (AP1 plus the connected computer 1) can associate to another Access Point (AP2), and then can have the Internet access if the other Access Point (AP2) has the Internet connection.

  • Page 20: Bridge Mode

    2.1.3 Bridge Mode The WDS (Wireless Distributed System) function let this access point acts as a wireless LAN access point and repeater at the same time. Users can use this feature to build up a large wireless network in a large space like airports, hotels and schools …etc.

  • Page 21: Wds Repeater

    2.1.4 WDS Repeater Refer to the illustration below. While acting as Bridges, AP1 (with Station 1 being associated to) and AP2 (with Station 2 being associated) can communicate with each other through wireless interface (with WDS). Thus Station 1 can communicate with Station 2 and both Station 1 and Station 2 are able to access the Internet if only AP1 or AP2 has the Internet connection.

  • Page 22: Universal Repeater

    2.1.5 Universal Repeater An universal repeater can also extend the wireless coverage of another wireless AP or router. But the universal repeater does not require the remote device to have WDS function. Therefore, it can work with almost any wireless device. To set the operation mode to Client (Infrastructure), please go to “Mode”...

  • Page 23: Wisp (Client Router) Mode

    2.1.6 WISP (Client Router) mode In WISP mode, the AP will behave just the same as the Client mode for wireless function. However, router functions are added between the wireless WAN side and the Ethernet LAN side. Therefore, the WISP subscriber can share the WISP connection without the need for extra router.

  • Page 24: Wisp + Universal Repeater Mode

    2.1.7 WISP + Universal Repeater mode In this mode, the AP behaves virtually the same as the WISP mode, except one thing: the AP can also send wireless signal to the LAN side. That means the AP can connect with the remote WISP AP and the indoor wireless card, and then provide IP sharing capability all at the same time! To set the operation mode to Client (Infrastructure), please go to “Mode”...

  • Page 25: Gateway (Ap + Router)

    2.1.8 Gateway (AP + Router) In this mode, router functions are added between one Ethernet port and the other network interface. The radio is an AP mode which allow wireless client to share the internet connection. To set the operation mode to Client (Infrastructure), please go to “Mode” field and select the “Gateway” mode.

  • Page 26: Wireless Settings

    This section guides you to configure the mode of the Radio interface. 3.1 Access Point Mode Settings Alias Name: Another name for WL-5470POE. Disable Wireless LAN Interface: Check the box to disable the Wireless LAN Interface, by so doing, you won’t be able to make wireless connection with this Access Point in the network you are located. In other words, this device will not be visible by any wireless station.
  • Page 27 communication. The number of channels supported depends on the region of this Access Point. All stations communicating with the Access Point must use the same channel. Wireless Client Isolation: This is to separate wireless client if needed. Wireless clients can not communicate to each other if the field is enabled.

  • Page 28: Client Mode Settings

    3.2 Client Mode Settings Alias Name: Another name for WL-5470POE. Disable Wireless LAN Interface: Check the box to disable the Wireless LAN Interface, by so doing, you won’t be able to make wireless connection with this Access Point in the network you are located. In other words, this device will not be visible by any wireless station.
  • Page 29 Auto Mac Clone (Single Ethernet Client): If your ISP restricts service to PCs only, use the MAC Clone feature to copy a PC Media Access Control (MAC) address to your router. This procedure will cause the router to appear as a single PC, while allowing online access to multiple computers on your network. Manual MAC Clone Address: You can also manually provide MAC address to the router.

  • Page 30: Bridge Mode Settings

    3.3 Bridge Mode Settings Alias Name: Another name for WL-5470POE. Disable Wireless LAN Interface: Check the box to disable the Wireless LAN Interface, by so doing, you won’t be able to make wireless connection with this Access Point in the network you are located. In other words, this device will not be visible by any wireless station.
  • Page 31 allows a network design to include spare (redundant) links to provide automatic backup paths if an active link fails, without the danger of bridge loops, or the need for manual enabling/disabling of these backup links. AP MAC Address: Fill the MAC address of the remote WDS node which you want to connect to. Site Survey: Use this button to find out the remote WDS node and check the signal strength.

  • Page 32: Wds Repeater Mode Settings

    3.4 WDS Repeater Mode Settings Alias Name: Another name for WL-5470POE. Disable Wireless LAN Interface: Check the box to disable the Wireless LAN Interface, by so doing, you won’t be able to make wireless connection with this Access Point in the network you are located. In other words, this device will not be visible by any wireless station.
  • Page 33 WLAN must use the same SSID. It is case-sensitive and must not exceed 32 characters. A device will not be permitted to join the BSS unless it can provide the unique SSID. An SSID is also referred to as a network name because essentially it is a name that identifies a wireless network.
  • Page 34 3. Click on “Signal Survey” button. 4. A pop up page shows the signal strength. 5. The signal strength refresh every 3 seconds, you can then change your antenna for a better signal. To configure the security connection, please refer to Section 3.9 Wireless Security Settings …… To configure the Advanced Settings, please refer to Section 3.10 Advanced Wireless Settings ……...

  • Page 35: Universal Repeater Mode Settings

    3.5 Universal Repeater Mode Settings Alias Name: Another name for WL-5470POE. Disable Wireless LAN Interface: Check the box to disable the Wireless LAN Interface, by so doing, you won’t be able to make wireless connection with this Access Point in the network you are located. In other words, this device will not be visible by any wireless station.
  • Page 36 802.1d Spanning Tree: Spanning tree is to prevent bridge loop when there are multiple active paths between network nodes. Bridge loop could cause connection fail or broadcast storm. Spanning tree allows a network design to include spare (redundant) links to provide automatic backup paths if an active link fails, without the danger of bridge loops, or the need for manual enabling/disabling of these backup links.

  • Page 37: Wisp Mode Settings

    In this mode, the SSID is the remote WISP CPE to connect to. WAN Port: WL-5470POE provides 4 methods for client to access the internet. This depends on the location and the service which the ISP provides. You need to contact the ISP for detail information.
  • Page 38 Some ISP/WISP has special inquire for TTL feature that did not decrease the TTL value when pass the first router of ISP/WISP. When using PPPoE for WAN access, WL-5470POE provides flexible configuration for TTL value. The default value is 255 and does not have to change in a normal situation. You can check with your ISP/WISP if TTL value causes connection problem.
  • Page 39 Virtual Server: You can use Virtual Server Settings to provide connection on internet. For example, you can have your own web server at home and provide access on internet. This will need port 80 by default for Virtual Server Settings. Special Application: This is to enable internet service such as sound, video and so on.
  • Page 40 This will need port 80 by default for Virtual Server Settings. Remote Management: This is to configure WL-5470POE be managed from internet. Note that port 80 is always used by web service. You can change the port to prevent conflict.

  • Page 41: Wisp + Universal Mode Settings

    Repeater Mode Settings Router Settings Alias Name: Another name for WL-5470POE. Disable Wireless LAN Interface: Check the box to disable the Wireless LAN Interface, by so doing, you won’t be able to make wireless connection with this Access Point in the network you are located. In other words, this device will not be visible by any wireless station.
  • Page 42 Access Point must use the same channel. WAN Port: WL-5470POE provides 4 methods for client to access the internet. This depends on the location and the service which the ISP provides. You need to contact the ISP for detail information.
  • Page 43 When using PPPoE for WAN access, WL-5470POE provides flexible configuration for TTL value. The default value is 255 and does not have to change in a normal situation. You can check with your ISP/WISP if TTL value causes connection problem.
  • Page 44 This will need port 80 by default for Virtual Server Settings. Remote Management: This is to configure WL-5470POE be managed from internet. Note that port 80 is always used by web service. You can change the port to prevent conflict.

  • Page 45: Gateway Mode (Ap + Router) Settings

    AP Mode Settings Router Settings Alias Name: Another name for WL-5470POE. Disable Wireless LAN Interface: Check the box to disable the Wireless LAN Interface, by so doing, you won’t be able to make wireless connection with this Access Point in the network you are located. In other words, this device will not be visible by any wireless station.
  • Page 46 SSID or channel with other AP. WAN Port (LAN1): WL-5470POE provides 4 methods for client to access the internet. This depends on the location and the service which the ISP provides. You need to contact the ISP for detail information. WL-5470 POE User’s Manual...
  • Page 47 Some ISP/WISP has special inquire for TTL feature that did not decrease the TTL value when pass the first router of ISP/WISP. When using PPPoE for WAN access, WL-5470POE provides flexible configuration for TTL value. The default value is 255 and does not have to change in a normal situation. You can check with your ISP/WISP if TTL value causes connection problem.
  • Page 48 Virtual Server: You can use Virtual Server Settings to provide connection on internet. For example, you can have your own web server at home and provide access on internet. This will need port 80 by default for Virtual Server Settings. Special Application: This is to enable internet service such as sound, video and so on.
  • Page 49 IP address or URL. WL-5470POE provide Dynamic DNS client using DynDNS, please visit http://www.dyndns.org for detail. Ping: You can enable to the “Response to WAN Ping” to allow remotely ping your WL-5470POE. DoS Setting: In WL-5470POE, a denial-of-service attack (DoS attack) can block or limit the system sending network flood to your local computer.

  • Page 50: Wireless Security

    WL-5470POE provides WEP, WPA-PSK (TKIP), WPA2-PSK (AES) and WPA2-PSK (AES) security policy. WEP allows you to use data encryption to secure your data from being eavesdropped by malicious people. It allows 2 types of key: 64 (WEP64) and 128 (WEP128).
  • Page 51 Pre-shared Key: This is an ASCII string with 8 to 63 characters. Please make sure that both the WL-5470POE and the wireless client stations use the same key. Group Key Life Time: A group key is used for multicast/broadcast data, and the re-key interval is time period that the system will change the group key periodically.
  • Page 52 Pre-shared Key: This is an ASCII string with 8 to 63 characters. Please make sure that both the WL-5470POE and the wireless client stations use the same key. Encryption Type: There are two encryption types TKIP and CCMP (AES). While CCMP provides better security than TKIP, some wireless client stations may not be equipped with the hardware to support it.
  • Page 53 802.1X (Radius) Authentication by the remote server (RADIUS Server). Security: You can select None, WEP, WPA (TKIP), WPA (AES), WPA2 (AES), WPA2 Mixed method for data encryption. WEP: 802.1x Authentication is enabled and the RADIUS Server will proceed to check the 802.1x Authentication, and make the RADIUS server to issue the WEP key dynamically.

  • Page 54: Advanced Wireless Settings

    3.10 Advanced Wireless Settings When click on Advanced Setup button under client mode, a pop-up window appears and show parameter as follow: Fragmentation: Fragmentation mechanism is used for improving the efficiency when high traffic flows along in the wireless network. If your 802.11g Wireless LAN PC Card often transmit...
  • Page 55 Beacon Interval: Beacon Interval is the amount of time between beacon transmissions. Before a station enters power save mode, the station needs the beacon interval to know when to wake up to receive the beacon (and learn whether there are buffered frames at the access point). Data Rate: By default, the unit adaptively selects the highest possible rate for transmission.

  • Page 56: Access Control

    3.11 Access Control When Enable Wireless Access Control is checked, only those clients whose wireless MAC addresses listed in the access control list can access this Access Point. If the list contains no entries with this function being enabled, then no clients will be able to access this Access Point. Wireless Access Control Mode: Select the Access Control Mode from the pull-down menu.

  • Page 57: Qos Traffic Control

    Therefore, the WISP operators can offer different class of connection speeds for different subscription fees - just like the ADSL service! The AirLive advance firmware can control the bandwidth by Interface or IP/MAC. What type of Traffic Bandwidth Control does the firmware offer? The Traffic Bandwidth limits the “Maximum Data Rate”.
  • Page 58 The AP’s Web UI will tell you which types of output rate it supports, it differs in each wireless mode. In the following example: The AP is in Gateway Mode The WAN Output Rate is 128K The LAN/WLAN Output Rate is 1024K In this setup, the notebook users get an upstream bandwidth of 128K and downstream bandwidth of 1024K.
  • Page 59 Configure the Traffic Control QoS From the Mode Setting page, please choose the “Traffic Control(QoS)” on the bottom of the list. Once you click on the “setup” button, a new window will pop-up with the Traffic Control settings. They are divided into “A”, “B”, “C”, “D”...
  • Page 60 Interface Control Settings: In the Interface Control Settings, the AP only controls the total bandwidth limit of an interface. For example, if you want to limit the output data rate of the LAN to 512K and the output data rate of WLAN to 1024K. You should perform the following steps: Enable the “Interface Traffic Control Enter “512”...
  • Page 61 Please follow the step below to create a new policy “VIP” Enter “VIP” for the “PolicyName” Enter “512” for the “LAN Out Rate” Enter “1024” for the “WLAN Out Rate” Enter “VIP Subscriber” for the “Comment” Click on “Save” button Now the “VIP”...
  • Page 62 If you have defined a Policy already, please choose a Policy name. The “Out Rates” will be automatically pasted from the Policy template. You cannot change the Out Rates if you have chosen a Policy If you want to define new Data Rate, please do not choose any policies. Then you can enter the values in the “LAN”, “WLAN”, or “WAN”...
  • Page 63 Application Example Example1: AP Mode Traffic Control In this example, the AP is installed outdoor to provide Internet service. There are 2 different type of Internet service offered by the WISP: VIP Service: Upstream Data Rate: 512 Kbps Downstream Data Rate: 1024 Kbps Regular Service: Upstream Data Rate: 64 Kbps Downstream Data Rate: 512 Kbp...
  • Page 64 Please fill in the 2 entries as shown on the graphic below Reboot the AP Example2: Client Mode Traffic Control In the following example, the AP is used as the wireless client to the WISP Service. The Service provider need to restrict the bandwidth of the AP to 1024K Downstream and 128K Upstream. Step-by-Step Configuration Please enable the “Interface Traffic Control”...

  • Page 65: System Management

    DHCP Client Range: WL-5060AP IP addresses continuing from 192.168.100.1 to 192.168.100.253 Clone MAC Address: You can specify the MAC address of your Access Point to replace the factory setting. Disable Ping: WL-5470POE did not response LAN ping if this function is checked. WL-5470 POE User’s Manual...
  • Page 66 This can be done by Add DHCP Static Lease Client. MAC Address: You have to fill the MAC address of the device which you want to record in WL-5470POE. Lease IP Address: And assign IP address to the MAC address.

  • Page 67: Upgrade Firmware

    4.2 Upgrade Firmware To Upgrade Firmware: 1. Download the latest firmware from your distributor and save the file on the hard drive. 2. Start the browser, open the configuration page, click on Other, and click “Upgrade Firmware” to enter the Upgrade Firmware window.

  • Page 68: Save / Reload Settings

    4.3 Save / Reload Settings This function enables users to save the current configurations as a file (i.e. config.dat) To load configuration from a file, enter the file name or click Browse… to find the file from your computer. Save Settings to File: Click “SAVE” to save the current configuration to file. When prompted the upper left screen, select “Save this file to disk”, and the upper right screen will prompt you a dialog box to enter the file name and the file location.

  • Page 69: Change Password

    4.4 Change Password For secure reason, it is recommended that you set the account to access the web server of this Access Point. Leaving the user name and password blank will disable the protection. The login screen prompts immediately once you finish setting the account and password. Remember your user name and password for you will be asked to enter them every time you access the web server of this Access Point.

  • Page 70: Enable System Log

    4.5 Enable System Log This function can list all log information about device. Enable Log: Enabled or Disabled display system log information. System All: List system all log information. Wireless Only List: wireless log information only. Refresh: Refresh log information. Clear: Clear all information in window.

  • Page 71: Ntp Settings

    4.6 NTP Settings This function can set system time from local computer or Internet. Current Time: Setting system time Enable NTP client update: Enable or Disable setting system from Internet NTP Server. Time Zone Select: Select system time zone. NTP Server: Select NTP Server by Server List or Manual Input. WL-5470 POE User’s Manual...

  • Page 72: System Status

    5. System Status System status shows device’s current configuration and operation status. To check the status, click the “Status” bottom on the title bar. 5.1 System Data System data highlights the current configuration of the device. System System shows the alive time when device boots up and the current firmware version installed in the device.

  • Page 73: Statistics

    5.2 Statistics Statistics shows the total packets pass through the interface. Active Clients This feature shows the information of wired and wireless client connects to the device. WL-5470 POE User’s Manual...

  • Page 74: System Recovery

    6 System Recovery WL-5470POE provides the system recovery emergency code function that can restore the machine after firmware crashed. Please follow the steps below: 1. Unplug the power of WL-5470POE. 2. Hold the reset button while plugging the power. Do not release the reset button until the "Status" LED goes off.

  • Page 75: Specification

      7. Specification 54Mbps Multi-function POE AP 2 x 10/100Mbps ports, 4MB Flash, 16MB SDRAM 20dBm(EU) or 26dBm(South America) Output Power R-SMA antenna connector IEEE802.3af PoE standard compliance* 8 Wireless Operation Modes Bandwidth Control and Signal Survey Feature Client Isolation, Watchdog, and TX Power Regulation SSH2/HTTP/Telnet managements DHCP Relay Agent Supported Up to 40 Access Control List...
  • Page 76 Hide ESSID 802.1x MAC Access Control MAC Access Table Wireless Client Isolation SSID, Channel, RTS Threshold, Frag Threshold Operating temperature: 0~60℃ Operating humidity (non-condensing): 20~80% Environmental Storage temperature: -20~65℃ Storage humidity: 95% Max Power Supply DC12V / 48VDC(802.3af, LAN 1) FCC, CE Product Weight (g) 180 g...

  • Page 77: Appendix Command Line Management

    Appendix Command Line Management WL-5470POE provides telnet and Secure Shell (SSH) for remote management. You can use telnet or some free software such as putty (http://www.chiark.greenend.org.uk/~sgtatham/putty/download.html) as telnet/SSH client. Refer to the following table for detail. All commands will tack effect only after reboot...
  • Page 78 [tkip|aes] <pass|hex> <key> [gklt] wpa2 [mixed|aes] <pass|hex> <key> [gklt] [off|on <port> <ip_addr> <password> <wep [64|128]|wpa [tkip|aes]|wpa2 [mixed|aes]>] preauth [on|off] [off|on <port> <ip_addr> account <password>] [Mode] Advanced Settings wlan wlan preamble [long|short] bssid [on|off] iapp [on|off] protect11g [on|off] fragment <256~2346> <0~2347> beacon <20~1024>...
  • Page 79 protocol status server access icmp <0:disabled|1:enabled> passthruvpn ipsec <0:disabled|1:enabled> passthruvpn pptp <0:disabled|1:enabled> passthruvpn l2tp <0:disabled|1:enabled> [Mode] Virtual Servers server disp delete [id] clearall add <ser_ip> <server> [proto <from_port [to_port]>] server: 0. Customize 1. Web, 2. FTP, 3. POP3, 4. SMTP, 5. DNS, 6.
  • Page 80 <trig_from_port> <trig_to_port>] proto: 1. TCP+UDP, 2. TCP, 3. [Mode] Remote Management server access web <0:disabled|1:enabled> port web <portnum> access telnet <0:disabled|1:enabled> [Mode] URL Filtering urlfilter customize disp add [string] delete [id] clearall [Mode] MAC Filtering macfilter customize disp add [mac_addr] delete [id] clearall [Mode] IP Filtering...
  • Page 81 enabledos <clearall>[Packets/Second]<sele ctall>[Packets/Second]<sysflood syn>[Packets/Second]<sysfloodfi n>[Packets/Second]<sysfloodud p>[Packets/Second]<sysfloodic mp>[Packets/Second]<persrcipfl oodsyn>[Packets/Second]<persr cipfloodfin>[Packets/Second]<pe enable rsrcipfloodudp>[Packets/Second] <persrcipfloodicmp><tcpudpport scan ><icmpsmurf><ipland><ipspoof> <ipteardrop><pingofdeath><tcps can><tcpsynwithdata><udpbomb ><udpechochargen><srcipblockt ime >[sec] <sysfloodsyn><sysfloodfin><sysf loodudp><sysfloodicmp><persrci pfloodsyn><persrcipfloodfin><pe rsrcipfloodudp><persrcipfloodic mp><tcpudpportscan disable ><icmpsmurf><ipland><ipspoof> <ipteardrop><pingofdeath><tcps can><tcpsynwithdata><udpbom b><udpechochargen><srcipbloc ktime > [Mode] Dynamic DNS ddns <Domain Name><User enabledyndns Name/Email><Password/Key> <Domain Name><User enabletzo Name/Email><Password/Key>...
  • Page 82 (if [pw] is empty, then clear the password [pw] password) [Other] Save / Reload Setting save factorydefault [Other] NTP showcurrenttime setcurrenttime <yyyy/mm/dd/hh/MM/ss> enablentp timezoneselect <zone num> ntpserver <servernum> manualipsetting <ip> disablentp [Other] System Log disable enablesysall [showsysall] enablewlanonly [showwlanonly] clear WL-5470 POE User’s Manual...
