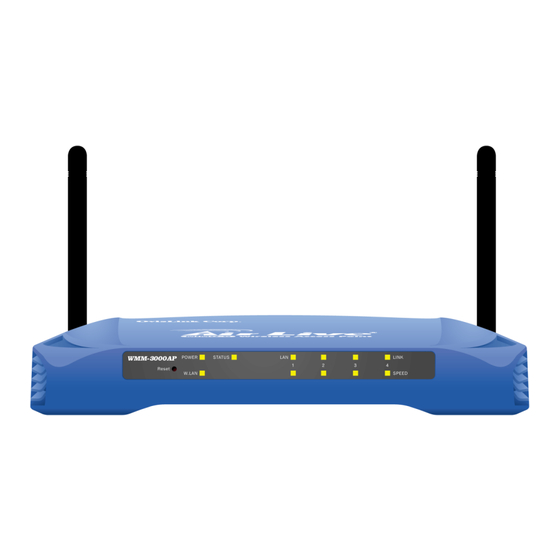

AirLive WMM-3000AP User Manual

Mimo-g wireless ap
Hide thumbs Also See for WMM-3000AP:
Table of Contents

Advertisement

Quick Links

Download this manual
WMM-3000AP
MIMO-G Wireless AP
User's Manual
AirLive WMM-3000AP User's Manual
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WMM-3000AP and is the answer not in the manual?

Questions and answers

Related Manuals for AirLive WMM-3000AP

Summary of Contents for AirLive WMM-3000AP

  • Page 1 WMM-3000AP MIMO-G Wireless AP User’s Manual AirLive WMM-3000AP User’s Manual...

  • Page 2: Declaration Of Conformity

    5F., NO.6, Lane 130, Min-Chuan Rd., Hsin-Tien City, Taipei County, Taiwan Declare that the product MIMO 802.11g Wireless Access Point AirLive WMM-3000AP is in conformity with In accordance with 89/336 EEC-EMC Directive and 1999/5 EC-R & TTE Directive Clause Description Electromagnetic compatibility and Radio spectrum Matters (ERM);...
  • Page 3 1999/5/CE. muiden ehtojen mukainen Ar šo OvisLink Corp. deklarē, ka AirLive WMM- Hér með lýsir OvisLink Corp yfir því að AirLive WMM- Latviski [Latvian] 3000AP atbilst Direktīvas 1999/5/EK būtiskajām Íslenska [Icelandic] 3000AP er í...

  • Page 4: Ce Declaration Of Conformity

    CE Declaration of Conformity This equipment complies with the requirements relating to electromagnetic compatibility, EN 55022/A1 Class B. The specification is subject to change without notice. AirLive WMM-3000AP User’s Manual...

  • Page 5: Table Of Contents

    You can View system log by clicking the View Log button ............29 4.8.3 Firmware Upgrade ....................... 29 4.8.4 Backup Setting ........................30 4.8.5 Reset to default ........................30 4.8.6 Reboot ..........................30 APPENDIX A TCP/IP CONFIGURATION FOR WINDOWS 95/98 ............31 APPENDIX B 802.1X SETTING ....................... 36 AirLive WMM-3000AP User’s Manual...
  • Page 6 APPENDIX C WDS SETTING ........................41 APPENDIX D FAQ AND TROUBLESHOOTING ..................45 AirLive WMM-3000AP User’s Manual...

  • Page 7: Chapter 1 Introduction

    Chapter 1 Introduction Congratulations on your purchase of this outstanding AirLive Wireless AP This product is specifically designed for Small Office and Home Office needs. Instructions for installing and configuring this product can be found in this manual. Before you install and use this product, please read this manual carefully for fully exploiting the functions of this product.

  • Page 8: Packing List

    Advanced functions  System time Supported Allow you to synchronize system time with network time server. 1-2 Packing List  Wireless AP unit  Installation CD-ROM  Power adapter  CAT-5 UTP Fast Ethernet cable AirLive WMM-3000AP User’s Manual...

  • Page 9: Chapter 2 Hardware Installation

    Link status Green LAN port. The corresponding LAN port is sending or receiving Blinking data. Speed 10/100 Data Rate Green Data is transmitting in 100Mbps on the corresponding LAN port. Reset To reset system settings to factory defaults AirLive WMM-3000AP User’s Manual...

  • Page 10: Rear Panel

    2.1.2. Rear Panel Figure 2-2 Rear Panel Ports: Port Description Power inlet Port 1-4 the ports where you will connect networked computers and other devices. AirLive WMM-3000AP User’s Manual...

  • Page 11: Procedure For Hardware Installation

    ON for about 10 seconds, and then M1 will be flashed 3 times to indicate that the self-test operation has finished. Finally, the M1 will be continuously flashed once per second to indicate that this product is in normal operation. AirLive WMM-3000AP User’s Manual...

  • Page 12: Chapter 3 Network Settings And Software Installation

    Tip: The LAN LED of this product and the link LED of network card on your computer must be lighted. Is the TCP/IP environment of your computers properly configured? Tip: If the IP address of this product is 192.168.1.254, the IP address of your computer must be 192.168.1.X and default gateway must be 192.168.1.254. AirLive WMM-3000AP User’s Manual...

  • Page 13: Chapter 4 Configuring Wireless Access Point

    Chapter 4 Configuring Wireless Access Point This product provides Web based configuration scheme, that is, configuring by your Web browser, such as Netscape Communicator or Internet Explorer. This approach can be adopted in any MS Windows, Macintosh or UNIX based platforms. AirLive WMM-3000AP User’s Manual...

  • Page 14: Start-Up And Log In

    After the connection is established, you will see the web user interface of this product. There are two appearances of web user interface: for general users and for system administrator. A window would pop-up asking for Login and Password. Please enter “admin” for login, and “airlive” for password.

  • Page 15: Status

    D. Security Type: shows Wireless Security type information 4.3 View Log Click the View Log button on System Status Page You can see the access logs from this screen also you can download the logs and save to your computer. AirLive WMM-3000AP User’s Manual...

  • Page 16: Client List

    LAN function and turn it on. Then just workable. 4.5 Wizard Setup Wizard will guide you through a basic configuration procedure step by step. Press ”Next >” AirLive WMM-3000AP User’s Manual...
  • Page 17 Setup Wizard – LAN IP Address: enter the IP address of this machine. Setup Wizard – Wireless Setting : for details , please read the Basic Setting  Wireless.: AirLive WMM-3000AP User’s Manual...

  • Page 18: Basic Setting

    Setup Wizard – Configuration is Completed : save and Reboot this machine 4.6 Basic Setting Basic Setting have Primary Setup, DHCP Server, and Wireless setting functions. AirLive WMM-3000AP User’s Manual...

  • Page 19: Primary Setup - Lan Ip Address

    IP address from the IP address pool to the requesting computer. You must specify the starting and ending address of the IP address pool. Domain Name: Optional, this information will be passed to the client. press “More>>” button into the other settings : AirLive WMM-3000AP User’s Manual...
  • Page 20 Gateway: The Gateway Address would be the IP address of an alternate Gateway. This function enables you to assign another gateway to your PC, when DHCP server offers an IP to your PC. press “Client List >” button into client list page AirLive WMM-3000AP User’s Manual...

  • Page 21: Wireless Setting, 802.1X Setting And Wds

    26 or 10 hexadecimal (0, 1, 2…8, 9, A, B…F) digits. 6. Pass-phrase Generator: Since hexadecimal characters are not easily remembered, this device offers a conversion utility to convert a simple word or phrase into hex. 7. 802.1X Setting AirLive WMM-3000AP User’s Manual...
  • Page 22 1. Select Encryntion and Preshare Key Mode If you select HEX,you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits If ASCII,the length of preshare key is from 8 to 63. 2. Fill in the key, Ex 12345678 AirLive WMM-3000AP User’s Manual...
  • Page 23 If you select HEX,you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits If ASCII,the length of preshare key is from 8 to 63. Key value shared by the RADIUS server and this router. This key value is consistent with the key value in the RADIUS server. AirLive WMM-3000AP User’s Manual...
  • Page 24 If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits If ASCII, the length of Pre-share key is from 8 to 63. Key value shared by the RADIUS server and this router. This key value is consistent with the key value in the RADIUS server. AirLive WMM-3000AP User’s Manual...
  • Page 25 If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits If ASCII, the length of Pre-share key is from 8 to 63. 2. Fill in the key, Ex 12345678 AirLive WMM-3000AP User’s Manual...
  • Page 26 If you select HEX, you have to fill in 64 hexadecimal (0, 1, 2…8, 9, A, B…F) digits If ASCII, the length of Pre-share key is from 8 to 63. Key value shared by the RADIUS server and this router. This key value is consistent with the key value in the RADIUS server. AirLive WMM-3000AP User’s Manual...
  • Page 27 WDS operation as defined bythe IEEE802.11 standard has been made available. Using WDS it is possible to wirelessly connect Access Points, and in doing so extend a wired infrastructure to locations where cabling is not possible or inefficient to implement AirLive WMM-3000AP User’s Manual...

  • Page 28: Mac Address Control (Basic Setting Wireless Setting)

    LAN, itmeans the client can't send or receive any data via this device. Choose "allow" or "deny" to allow or deny the clients, whose MAC addresses are not in the "Control table", to associate to the wireless LAN. AirLive WMM-3000AP User’s Manual...
  • Page 29 MAC address of the client you select to the ID selected in the “ID” Combobox. Previous page and Next Page To make this setup page simple and clear, we have divided the “Control table” into several pages. You can use these buttons to navigate to different pages. AirLive WMM-3000AP User’s Manual...

  • Page 30: Advanced Settings

    4.7 Advanced Settings 4.7.1 System Time Set Date and Time using PC’s Date and Time Use PC Date and Time as Machine Set Date and Time manually Selected if you want to Set Date and Time manually. AirLive WMM-3000AP User’s Manual...

  • Page 31: Maintenance

    4.8 Maintenance 4.8.1 Change Password You can change Password here. We strongly recommend you to change the system password for security reason. AirLive WMM-3000AP User’s Manual...

  • Page 32: View Log

    4.8.2 View Log You can View system log by clicking the View Log button 4.8.3 Firmware Upgrade You can upgrade firmware by clicking Firmware Upgrade button. AirLive WMM-3000AP User’s Manual...

  • Page 33: Backup Setting

    Firmware Upgrade button and use the bin file you saved. 4.8.5 Reset to default You can also reset this product to factory default by clicking the Reset to default button. 4.8.6 Reboot You can also reboot this product by clicking the Reboot button. AirLive WMM-3000AP User’s Manual...

  • Page 34: Appendix A Tcp/Ip Configuration For Windows 95/98

    3. Click Add button to add network component into your PC. 4. Double click Protocol to add TCP/IP protocol. 5. Select Microsoft item in the manufactures list. And choose TCP/IP in the Network Protocols. Click OK button to return to Network window. AirLive WMM-3000AP User’s Manual...
  • Page 35 2. Double click Network icon. Select the TCP/IP line that has been associated to your network card in the Configuration tab of the Network window. 3. Click Properties button to set the TCP/IP protocol for this NAT Router. 4. Now, you have two setting methods: AirLive WMM-3000AP User’s Manual...
  • Page 36 Select Obtain an IP address automatically in the IP Address tab. b. Don’t input any value in the Gateway tab. AirLive WMM-3000AP User’s Manual...
  • Page 37 Select Specify an IP address in the IP Address tab. The default IP address of this product is 192.168.1.254. So please use 192.168.1.xxx (xxx is between 1 and 253) for IP Address field and 255.255.255.0 for Subnet Mask field. AirLive WMM-3000AP User’s Manual...
  • Page 38 In the Gateway tab, add the IP address of this product (default IP is 192.168.1.254) in the New gateway field and click Add button. c. In the DNS Configuration tab, add the DNS values which are provided by the ISP into DNS Server Search Order field and click Add button. AirLive WMM-3000AP User’s Manual...

  • Page 39: Appendix B 802.1X Setting

    Note. Windows 2000 RADIUS server only supports PEAP after upgrade to service pack 3 and HotFix Q313664 (You can get more information from http://support.microsoft.com/default.aspx?scid=kb; en-us;313664 2 DUT Configuration: 1.Enable DHCP server. 2.LAN IP address: 192.168.1.254/24. 3.Set RADIUS server IP. 4.Set RADIUS server shared key. AirLive WMM-3000AP User’s Manual...
  • Page 40 3.If choosing use smart card or the certificate as the EAP type, we select to use a certificate on this computer. (Fig 3) 4. We will change EAP type to fit the variable test condition. AirLive WMM-3000AP User’s Manual...
  • Page 41 Figure 2: Enable IEEE 802.1X access control AirLive WMM-3000AP User’s Manual...
  • Page 42 6. Windows XP will prompt that the authentication process is success or fail and end the authentication procedure. ( Fig 6) 7. Terminate the test steps when PC1 get dynamic IP and PING remote host successfully. Figure 4: Certificate information on PC1 AirLive WMM-3000AP User’s Manual...
  • Page 43 PC2. 5. Windows XP will prompt that the authentication process is success or fail and end the authentication procedure. 6. Terminate the test steps when PC2 get dynamic IP and PING remote host AirLive WMM-3000AP User’s Manual...
  • Page 44 If you can not find the information of Mac, please make the cable to plug in lan-port of ap and ping the lan ip address then arp –a. There are some information in the screen. For example: AirLive WMM-3000AP User’s Manual...
  • Page 45 SSID:Default SSID:Default SSID:Default Channel:11 Channel:11 Channel:11 Dhcp Server:Enable Blue Line:Wireless Black Line:Wire If the Settings are ok,the client1 and client2 can get ip from dhcp server of AP1.Then Client1 and Client2 can get information each other. AirLive WMM-3000AP User’s Manual...
  • Page 46 AP1 Setting: AP1 AP2(Remote Mac: 00-50-18-00-0f-fd) AP1 AP3(Remote Mac: 00-50-18-00-0f-fc) AP2 Setting: AP2 AP1(Remote Mac: 00-50-18-00-0f-fe) AirLive WMM-3000AP User’s Manual...
  • Page 47 AP3 Setting AP3 AP1(Remote Mac: 00-50-18-00-0f-fe) AirLive WMM-3000AP User’s Manual...

  • Page 48: Appendix D Faq And Troubleshooting

    Then click and will see the ap list that wireless client can be accessed: If the client can not access your wireless router, please refresh network list again. However, I still can not fine the device which ssid is “default”, please refer to Q3. AirLive WMM-3000AP User’s Manual...
  • Page 49 2.When I use AES encryption of WPA-PSK to connect even if I input the correct pre-share key? A: First, you must check if the driver of wireless client supports AES encryption. Please refer to the below: AirLive WMM-3000AP User’s Manual...
  • Page 50 If SSID is default and click “Properties” to check if the driver of wireless client supports AES encryption. AirLive WMM-3000AP User’s Manual...
