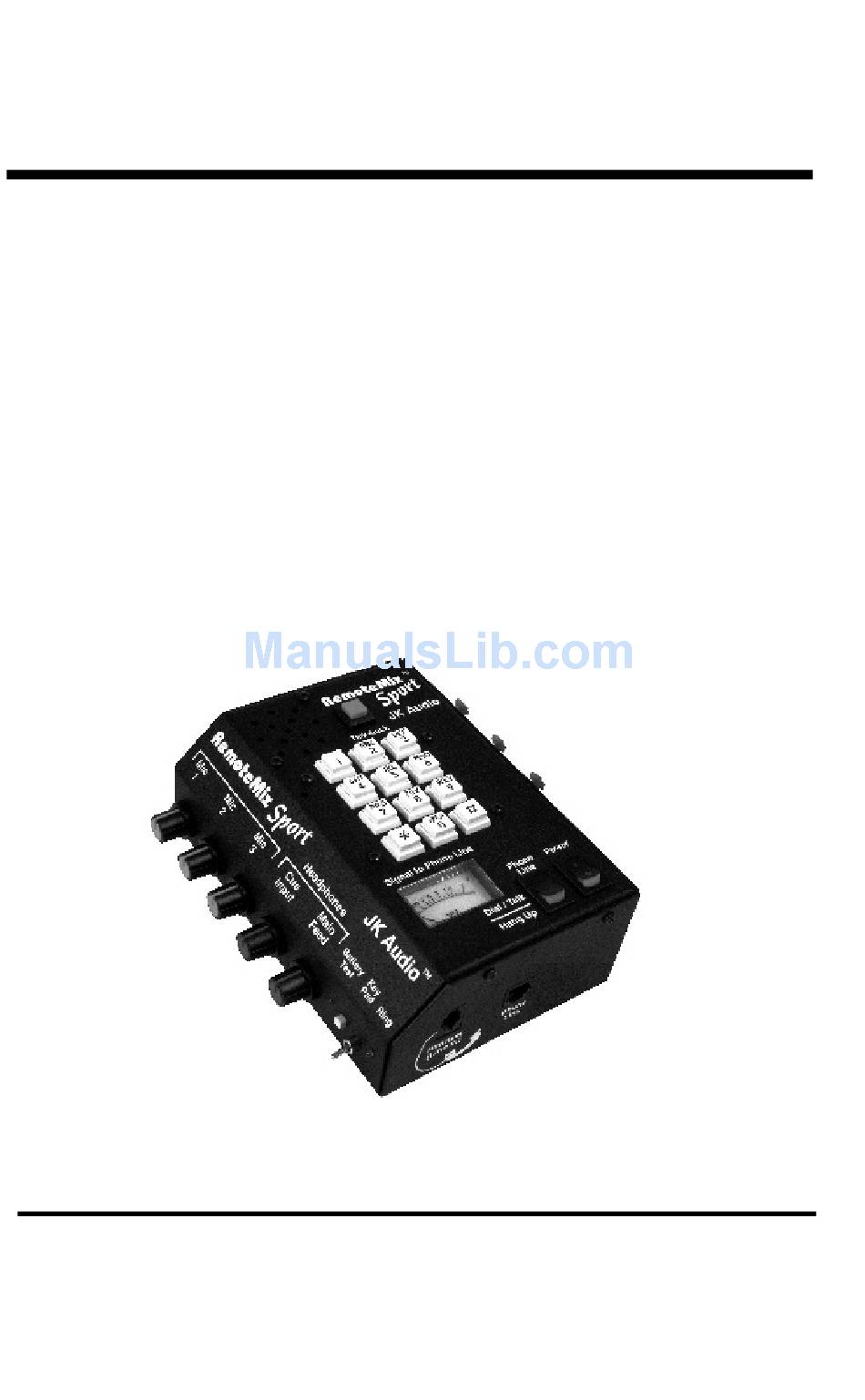

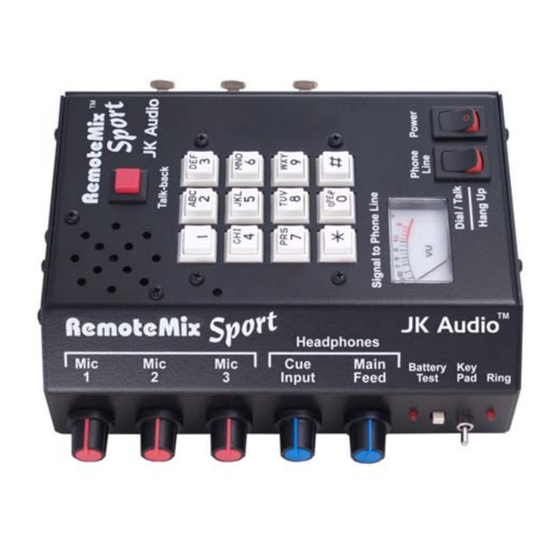

- Page 1 JK Audio Sport RemoteMix Phone LIne Hybrid and Telephone Handset Interface for Remote Broadcasts Users Guide Telephone Interface Products...
- Page 2 Connections RemoteMix Sport is a professional audio mixer designed to work on any standard analog telephone line or simply unplug the handset on most PBX or digital telephones and connect to the built-in universal handset interface. It can also connect to many cellular telephones using a fax/modem adapter available from your cellular telephone manufacturer.
- Page 3 When using the wireless interface, it is important to keep your wireless telephone 12” - 24” away from the RemoteMix Sport and any microphone or headphone cables. This will help prevent unwanted RF noise from entering the unit.
- Page 4 PBX, ISDN, or a key telephone system, You can use the built-in handset interface. Simply disconnect the handset from the coily cord and plug the cord into the RemoteMix Sport PBX Handset Interface Jack. Now select the handset type on the 3 position switch.
- Page 5 This signal does not reach the XLR output. Handset Jack The handset jack on the right side of RemoteMix Sport allows you to plug in a telephone handset and quickly set up a call before you set up your microphones and headphones. All telephone handsets are different, so if yours is not compatible, try an AT&T, Sony, or Radio...
- Page 6 We also provide a high quality, regulated AC to DC adapter to power RemoteMix Sport when AC power is available. Simply plug it into the back of RemoteMix Sport and plug the transformer into a 110 VAC wall outlet. When the power connector is inserted into the jack, the batteries are bypassed.
- Page 7 Hybrid Null Adjustment (optional) The receive side of RemoteMix Sport has a hidden fine tuning control which is adjusted by inserting a small flat blade screwdriver into the back of the unit just below the words Null Adj. and turning left or right.
-
Page 8: Specifications
Specifications Inputs: (3) Female XLR, 1k ohms, -10 mV Microphone RMS (-35 dBm nom.) Mic 1 has a Mic / Line pad switch, Line = +5 dBm nominal 1/4" 20k ohms, 250 mV RMS (-10 Headphone dBm nom.) Cue Input: Auxiliary Handset Jack, biased for Handset: electret microphone type handset. -
Page 9: Fcc Registration
FCC Registration Your new JK Audio product has been registered with the Federal Communications Commission (FCC). This product complies with the standards in Part 68 of the FCC rules. Connection and use with the nationwide telephone network The FCC requires that you connect this telephone equipment to the national telephone network through a USOC RJ-11C modular telephone jack. - Page 10 FCC. Your telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your JK Audio product. If such changes are planned, you'll be notified by your telephone...
-
Page 11: Fcc Part 15 Compliance
Changes or modifications not expressly approved by JK Audio can void the user's authority to operate the equipment. - Page 12 Warranty RemoteMix Sport is covered by a 2 year warranty to be free from defective workmanship and materials. In the event that the RemoteMix Sport needs repair, you must call us to get an authorization, and then carefully pack and ship it to us.
