- Page 1 RemoteMix One ™ Field Interview Tool User Guide JK Audio...
-
Page 2: Thank You
Welcome Thank You Limited Warranty Thank you for purchasing the RemoteMix One is covered by a 2 JK Audio RemoteMix One. year warranty to be free from defective Please read this guide for instructions workmanship and materials. To obtain on using it. -
Page 3: Table Of Contents
Contents Overview Controls & Indicators Getting Connected FAQs Technical Information Overview... - Page 4 XLR Mic Input 4-Conductor 3.5mm Headset Interface (iPhone, most Android Phones & Mic Mute switch Notebooks) 3.5 Mm Stereo Line Input and Output >20 Hours on one 9 Volt Alkaline Battery ¼" Stereo Headphone Jack RemoteMix One™ Field Interview Tool...
-
Page 5: Overview
Introducing the RemoteMix One JK Audio combines professional audio electronics with a flexible communications interface in a rugged new belt pack design. RemoteMix One™ offers a professional look and feel to field reporters and live remote talent. RemoteMix One™ performs live man-on-the-street interviews through your cell phone and can provide two-way IFB connections through a cell phone or notebook for truly flexible remote monitoring. -
Page 6: Controls & Indicators

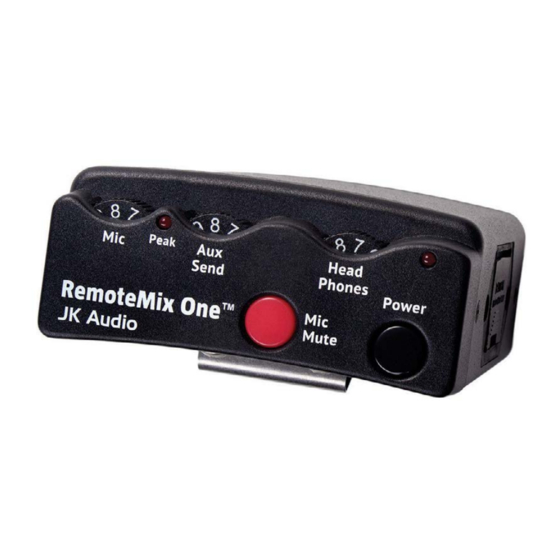

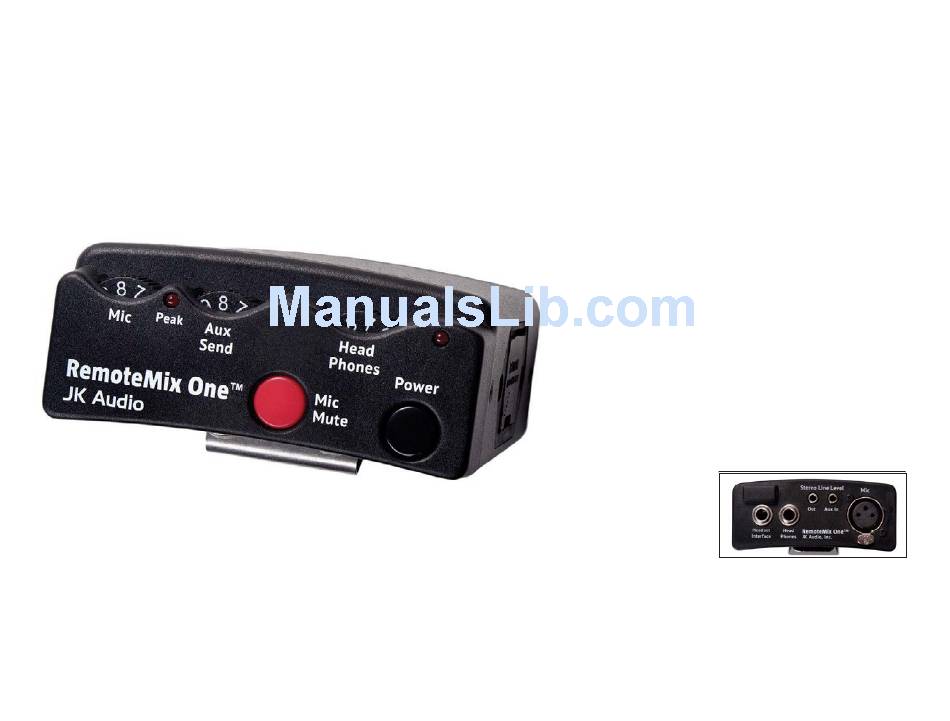

The microphone and Aux Send are a combined input. If you see this red LED flashing, you should decrease the Mic and/or Aux Send input levels. RemoteMix One™ Field Interview Tool... - Page 7 From Phone 4) Headphones Control There are two signal level pots on Sets the level of audio sent to the the left side of the RemoteMix One headphone output jack. that can be adjusted with a small flat 5) Power Indicator blade screwdriver.
-
Page 8: Getting Connected
The 1 watt stereo headphone using the supplied cable. output gives you a mix of the XLR mic input, 3.5 mm Aux Send input and the Headset Interface audio. RemoteMix One™ Field Interview Tool... - Page 9 Getting Connected 3) Stereo Line Level Output 5) Mic Input The unbalanced 3.5 mm stereo fixed Connect your dynamic microphone line level output jack provides your full to the XLR jack. This device will bandwidth microphone signal on the not provide phantom power for a left channel and the Headset Interface condenser type microphone.
-
Page 10: Faqs
Headset Interface. RemoteMix One™ Field Interview Tool... - Page 11 Why is the peak LED still red store. Please contact your JK Audio after I turned down the mic dealer or our Customer Service volume level? department and ask for a CN113 replacement cable.
-
Page 12: Technical Information
100 ohms / -10 dBu nom Headphone 1/4” Stereo 8 ohms / ½ watt per channel Power 9 VDC Battery Size 4.7” x 3.75” x 1.65” (12 x 9.5 x 4.2 cm) Weight 10 ounces (275 grams) RemoteMix One™ Field Interview Tool... -
Page 13: Block Diagram
Block Diagram 3.5 mm Line output Input Headset Jack Headset Interface 3.5 mm line input Headphone JK Audio PC060 Simplified Block Diagram January 10, 2012 Block Diagram... -
Page 14: Declaration Of Conformity
CE marking accordingly: R&TTE Directive 1999/5/EC RoHS Directive 2002/95/EC The Technical File containing supporting documentation is maintained at: JK Audio, Inc (Corporate Headquarters) Compliance Manager 1311 E 6th Street Sandwich, Illinois 60548 USA 815-786-2929 phone 815-786-8502 fax RemoteMix One™ Field Interview Tool... - Page 15 Overview...
- Page 16 RemoteMix One™ Field Interview Tool User Guide Version 6/5/15 JK Audio, Inc. 1311 E 6th St. Sandwich, IL 60548 United States Telephone: 815.786.2929 Toll Free: 1.800.jkaudio Fax: 815.786.8502 www.jkaudio.com © 2015 JK Audio, Inc. All rights reserved. JK Audio...
