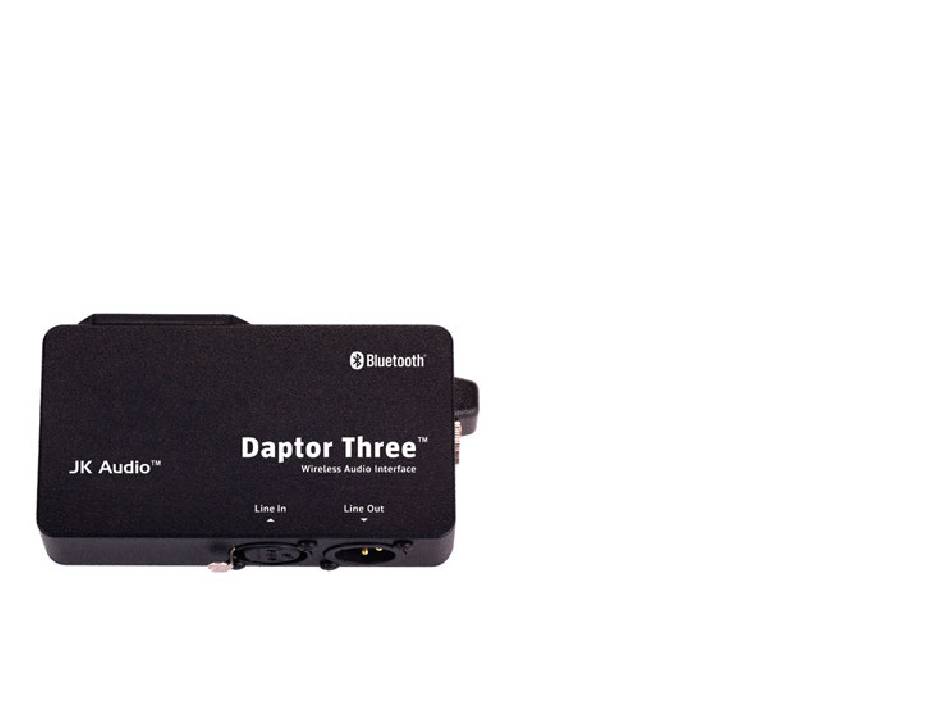

- Page 1 Daptor Three ™ Wireless Audio Interface User Guide JK Audio...
- Page 2 Welcome Thank You Limited Warranty Thank you for purchasing the Daptor Three is covered by a 2 year JK Audio Daptor Three. Please read warranty to be free from defective this guide for instructions on setting workmanship and materials. To obtain up and using your new product.
-
Page 3: Table Of Contents
Contents Overview Setup Bluetooth Wireless Technology 5 Pairing 6 Bluetooth Status LED 7 Master or Headset Mode 8 Connection History, Disconnecting from a Device, Reconnecting to a Device FAQs Technical Information Contents... - Page 4 Features Top View Right Side 9V Battery Drawer Balanced XLR Line In Bluetooth LED Balanced XLR Line Out Multi-Function Button (MFB) 3.5 mm Stereo Line Input Stereo LED 3.5 mm Stereo Line Output Daptor Three Wireless Audio Interface...
-
Page 5: Overview
Transmit, Receive or 2-way Hands-free. Daptor Three functions as either a Master or Headset device. In Master mode, Daptor Three connects to headsets or headset type devices, transmitting A2DP audio, or initiating a 2-way voice band connection to a headset. In Headset mode, Daptor Three connects to wireless phones, computers, or Bluetooth dongles, receiving A2DP audio or a 2-way Hands Free connection. -
Page 6: Setup
Setup Setup Optional: You may use the TRS jacks on side of Daptor Three instead of the XLR jacks on the bottom. Caller Minus Caller Mic 1 Mic 2 Mic 3 Mic 4 Line In 5/6 Aux Send Main Mix Out... - Page 7 2. Connect the mixer’s Mix-Minus bus 4. Pair Daptor Three to your wireless or Aux Send output (this may be phone or notebook computer. labeled FX or Mon but any Aux bus See (pages 4-8).
-
Page 8: Bluetooth Wireless Technology
MFB button for 2 seconds, then button for 6 seconds, then release to release to activate Idle Mode. activate Pairing Mode. In Idle Mode, Daptor Three searches In Pairing Mode, any Bluetooth for paired devices. enabled device within range can pair Connected Mode with your Daptor Three. - Page 9 Upon release, the blue LED will If the Pin on the headset device is not flash rapidly as Daptor Three enters "0000", Daptor Three will not be able to pair Pairing Mode. with it. The Stereo LED will flash Red during the 2.
-
Page 10: Pairing
Stereo (A2DP Stream) LED The second LED on the top of the unit flashes Red or Green to indicate: Red: Daptor Three is Receiving Stereo A2DP audio from the Master Device Green: Daptor Three is Sending Stereo A2DP audio to a Headset Device. -
Page 11: Master Or Headset Mode
Daptor Three, the Stereo LED will accept/reject/end a call. flash red or green to verify if it is in Headset or Master mode. 3. Daptor Three will keep this role until it is changed again. Bluetooth Wireless Technology... - Page 12 17 seconds. Headset Mode: Daptor Three will c) pressed after Daptor Three was left unused and powered off automatically. likely need to be selected in your phone's Bluetooth paired devices list.
-
Page 13: Faqs
Can I send and receive audio at the same time? of the Bluetooth transmitter/receiver? Yes. Daptor Three is capable of sending and receiving audio at the Daptor Three will transmit and receive audio signals up to 66 feet (20 meters) same time. -
Page 14: Technical Information
Technical Information Specifications Input Balanced Female XLR: 20k ohms, -4 dBu nom 1/8" (3.5mm) Stereo: 20k ohms , -10 dBu nom Output Balanced Male XLR: 200 ohms, 0 dBu max 1/8” (3.5mm) Stereo: 200 ohms, -6 dBu max Bluetooth Wireless Technology Standard: Bluetooth 3.0 Range:... - Page 15 Changes or modifications not in a commercial environment. This equipment generates, uses, and can radiate radio expressly approved by JK Audio can void the frequency energy and, if not installed and used user's authority to operate the equipment.
- Page 16 Toll Free: 1.800.jkaudio Fax: 815.786.8502 www.jkaudio.com © 2019 JK Audio, Inc. All rights reserved. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by JK Audio, Inc. is under license.
