JK Audio BlueSet User Manual

Wireless headset interface
Hide thumbs Also See for BlueSet:
Table of Contents

Advertisement

Quick Links

Download this manual
BlueSet
™
Wireless Headset Interface
User Guide
JK Audio

Advertisement

Table of Contents
loading

Related Manuals for JK Audio BlueSet

Summary of Contents for JK Audio BlueSet

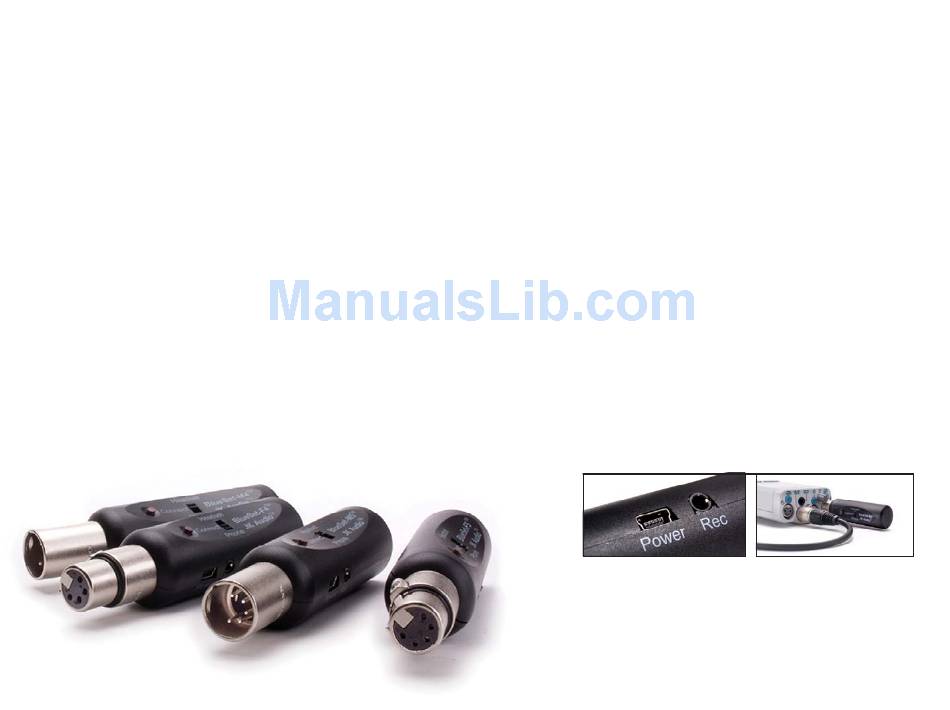

  • Page 1 BlueSet ™ Wireless Headset Interface User Guide JK Audio...

  • Page 2: Thank You

    Welcome Thank You Limited Warranty Thank you for purchasing the JK Audio BlueSet is covered by a 2 year BlueSet Wireless Headset Interface. warranty to be free from defective Please read this guide for instructions workmanship and materials. To obtain...

  • Page 3: Table Of Contents

    Contents Overview Getting to know your BlueSet Starting Up Bluetooth Wireless Technology 4 Status LED 5 Pairing to a Cell Phone 6 Pairing to a Headset 7 Disconnecting, Connection History, Reconnecting FAQ's Technical Information Contents...
  • Page 4 Wireless HD Calls. To take advantage of this extended bandwidth, both phones on the call must support HD Voice, and both phones must be on the same carrier, in coverage areas that support HD Voice. 7 kHz BlueSet Wireless Headset Interface BlueSet Wireless Headset Interface...

  • Page 5: Overview

    Some Bluetooth headsets allow you to switch between two phones, or in this case, switch between your intercom and your cell phone. Phone Connect: Pair BlueSet to your cell phone to grant remote access to the Party-Line for a distant member. The belt pack Mic/Talk button controls audio from the cell phone into the intercom system.

  • Page 6: Getting To Know Your Blueset

    Select <Phone> if you will be using your BlueSet with a cell phone or other master device. See page 8 for more information on Power Rec Bluetooth profiles for different wireless applications.

  • Page 7: Starting Up

    LED will turn off. This button is also used to disconnect If the battery becomes completely and turn off the BlueSet. See page 7. discharged for an extended period of time, the red LED will not flash until it Pairing your BlueSet can begin its charge cycle.

  • Page 8: Bluetooth Wireless Technology

    Upon release, the blue BlueSet. To put the unit in Pairing LED will flash at a slow rate of Mode, press the <Connect Button> 2 secs off, 200ms on. In Idle for 6 seconds.

  • Page 9: Pairing To A Cell Phone

    <Connect Button> on the 5. When bonding is complete, the blue BlueSet for at least 6 seconds. LED will flash at a rate of 2 seconds Upon release, the blue LED should off, 1 second on (2 secs off, 4 secs flash rapidly as the BlueSet enters on for HD Voice).

  • Page 10: Pairing To A Headset

    Pairing to a Headset 3. From the powered-off state, hold the <Connect Button> on the with Bluetooth Wireless BlueSet for at least 6 seconds. After Technology you release it, the blue LED should When you're first connecting to a flash rapidly if the BlueSet is in new device, you should be in an Pairing Mode.
  • Page 11 16 most recent devices. To clear connection history and return to When reconnecting to your cell factory default, with the BlueSet phone, the BlueSet should be set to powered off, set the switch to the <Phone>. For Bluetooth headsets, the <Headset> or <Phone> position, then BlueSet should be set to <Headset>.
  • Page 12 Wireless Applications Master(Phone) or BlueSet will attempt to connect in Headset Mode A2DP stereo streaming mode. The Master device controls the connection, and also has the What is the Difference ability to stream stereo A2DP between Profiles? audio to the Headset device.

  • Page 13: Faq's

    Ideally, the master device will search of the two paired/connected devices. for the headset device. If the BlueSet Transmitting signals over longer isn't pairing with your device, try distances will require more power,...
  • Page 14 BlueSet can be used to replace an electret or dynamic intercom headset. How long will the charge on the battery last? Why doesn’t the BlueSet...

  • Page 15: Battery Information

    This prolong battery life. loss of capacity is irreversible. To While BlueSet was designed to be very get the most from your BlueSet, the rugged and durable, it is not waterproof battery should not be allowed to fully and care should be taken to keep the discharge.
  • Page 16 Pin 1: Headset Mic (low) Pin 2: Headset Mic (high) Pin 3: Headphone (low) Pin 4: Headphone (high) Pins 4 & 5 are mixed together on BlueSet F5/M5 to accomodate dual-sided headsets. Pin 5: Headphone (high) BlueSet Wireless Headset Interface...
  • Page 17 Changes or modifications not expressly approved by JK Audio can void the user's authority to operate the equipment. FCC-B Part 15 Compliance...

  • Page 18: Declaration Of Conformity

    JK Audio, Inc. Manufacturer’s Address: 1311 E 6 Street Sandwich, Illinois 60548 USA Declares that the product: Product Name: BlueSet™ Wireless Headset Interface Model Numbers: BlueSet-F4, BlueSet-M4, BlueSet-F5, BlueSet-M5 Conforms to the following Product Specifications: Safety: AS/NZS 60950.1:2003 CAN/CSA-C22.2 No. 60950-01-03...
  • Page 19 CE marking accordingly: LVD 2006/95/EC (Safety) EMC 04/108/EEC (EMC) RoHS Directive 2002/95/EC The Technical File containing supporting documentation is maintained at: JK Audio, Inc (Corporate Headquarters) Compliance Manager 1311 E 6th Street Sandwich, Illinois 60548 USA +1-815-786-2929 phone...

  • Page 20: Technical Information

    Toll Free: 1.800.jkaudio Fax: 815.786.8502 www.jkaudio.com © 2014 JK Audio, Inc. All rights reserved. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by JK Audio, Inc. is under license.
