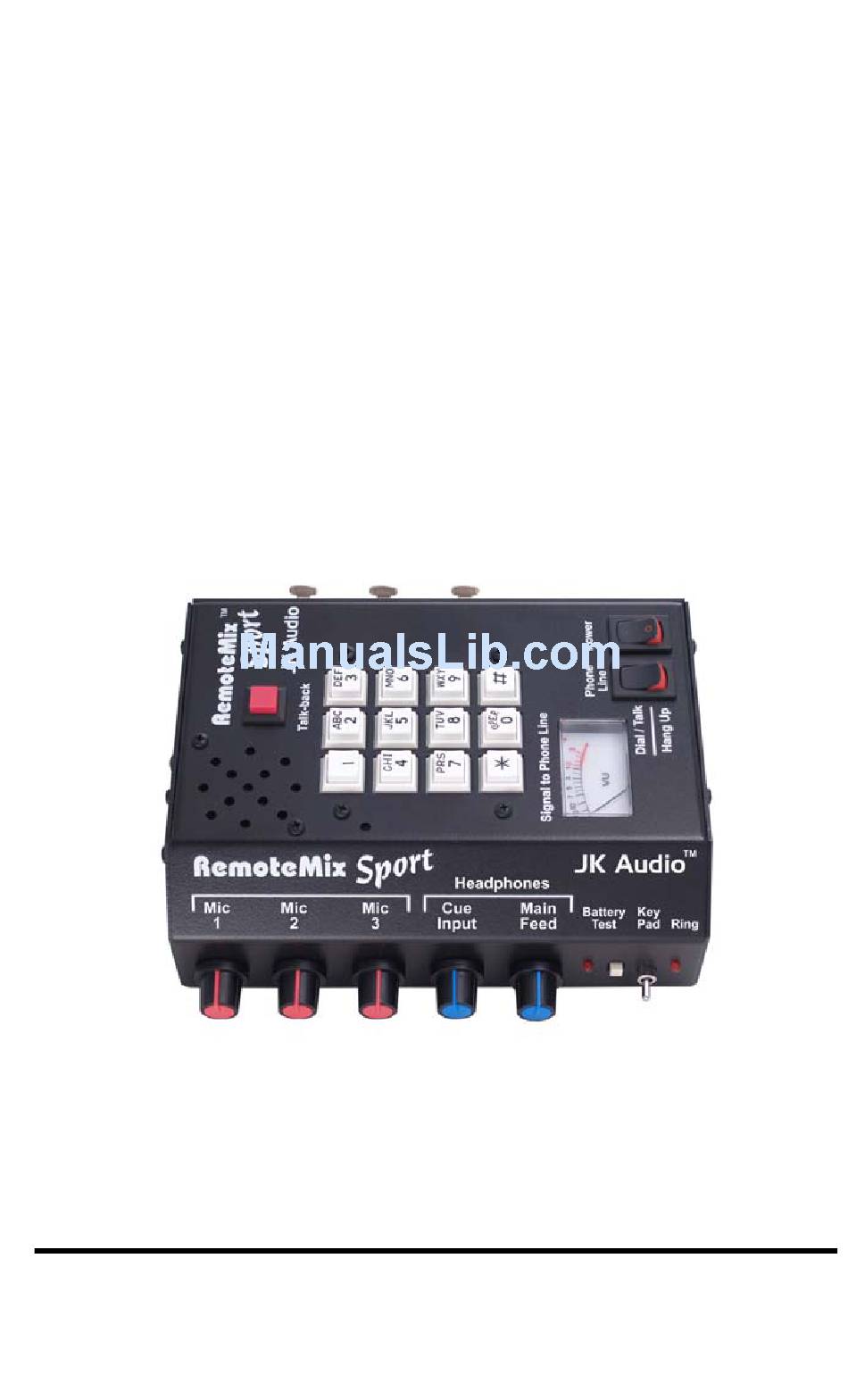

Page 1: User Guide

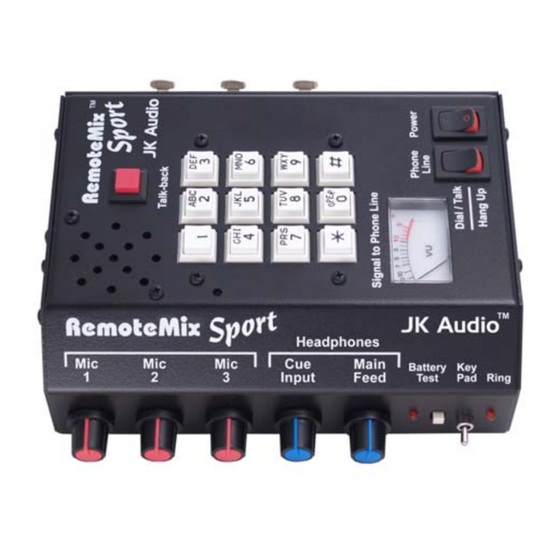

RemoteMix Sport Phone Line Hybrid and Telephone Handset Interface for Remote Broadcasts User Guide JK Audio... - Page 2 Connection RemoteMix Sport is a professional audio mixer designed to work on any standard analog telephone line or you can unplug the hand- set on most PBX or digital telephones and connect the phone to the built-in universal handset interface. It can also connect to many digital cellular telephones using the specially designed cell phone interface cable supplied with the unit.
-
Page 3: Operation
Operation 1. Connect your audio equipment, microphones, cue input, and headphones to the input and output jacks on RemoteMix Sport. 2. (a) Connect the jack marked "Phone Line" to any standard analog telephone line, or (b) Disconnect the handset on an existing telephone and plug... - Page 4 When using the wireless interface, it is important to keep your wireless telephone 12” - 24” away from the RemoteMix Sport and any microphone or headphone cables. This will help prevent un- wanted RF noise from entering the unit.
- Page 5 Disconnect the telephone handset from the coily cord and plug the cord into the RemoteMix Sport PBX Handset Interface Jack. Now select the handset type on the 3 position switch. Trial and error works faster than a chart of handset types, but this basic description may help.
- Page 6 Input 1 only 1/4” Cue Input / Wireless Interface The RemoteMix Sport includes a 1/4” Cue Input that feeds only the headphones. Connect any 50 ohm output to this jack, such as the headphone out from your personal audio player. This signal does not reach the XLR output.
- Page 7 If you are having level problems that cannot be corrected with the controls on the RemoteMix Sport, try adjusting the level on the wireless telephone itself. Ringer RemoteMix Sport does not have an audible ringer but there is a visual ring indicator that will flash for incoming calls.
- Page 8 Operation (continued) Handset Jack The handset jack on the right side of RemoteMix Sport allows you to plug in a telephone handset and quickly set up a call before you set up your microphones and headphones. All telephone handsets are different, so if yours is not compatible, try an AT&T, Sony, or Radio Shack residential telephone handset.
- Page 9 Operation (continued) Talkback Feature A built in speaker lets you monitor the phone line during call setup and station breaks. The monitor speaker volume controlled headphone volume control additional on / off switch (near the A-B-C switch). An internal push-to-talk microphone also helps when setting up your call.
- Page 10 We also provide a high quality, regulated AC to DC adapter to power RemoteMix Sport when AC power is available. Simply plug it into the back of RemoteMix Sport and plug the transformer into a 110 VAC wall outlet.
- Page 11 Why doesn't my RemoteMix Sport ring when a call comes in? The audible ringer found on other RemoteMix units was replaced with a visual ring indicator on the RemoteMix Sport. It is a red LED that flashes when a call comes in. The indicator is located next to the keypad toggle switch on the volume control panel.
- Page 12 From Phone or Headphones volume control depending on which method you are using to monitor the receive signal. 4. On the back of RemoteMix Sport, below the words Null Adj., there is a hole for a small flat blade screwdriver. This is a 10- turn potentiometer to allow for very sensitive adjustments.
-
Page 13: Specifications
Specifications Inputs: Microphone: Female XLR, 1k ohms, -10 mV RMS (-35 dBm nom.) Mic 1 has a Mic / Line pad switch, Line = +5 dBm nominal Cue Input: 1/4", 50 ohms, 250 mV RMS (-10 dBm nom.) Handset: Auxiliary Handset jack, biased for electret microphone type handset. -
Page 14: Fcc Registration
FCC Registration Your new JK Audio product has been registered with the Federal Communications Commission (FCC). This product complies with the standards in Part 68 of the FCC rules. Connection and use with the nationwide telephone network The FCC requires that you connect this telephone equipment to the national telephone network through a USOC RJ-11C modular telephone jack. -
Page 15: Fcc Part 15 Compliance
Your telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your JK Audio product. If such changes are planned, you'll be notified by your telephone company. FCC Part 15 Compliance... -
Page 16: Warranty
Warranty RemoteMix Sport is covered by a two year warranty to be free from defective workmanship and materials. In the event that the RemoteMix Sport needs repair, you must call us to get an authorization, and then carefully pack and ship it to us.
