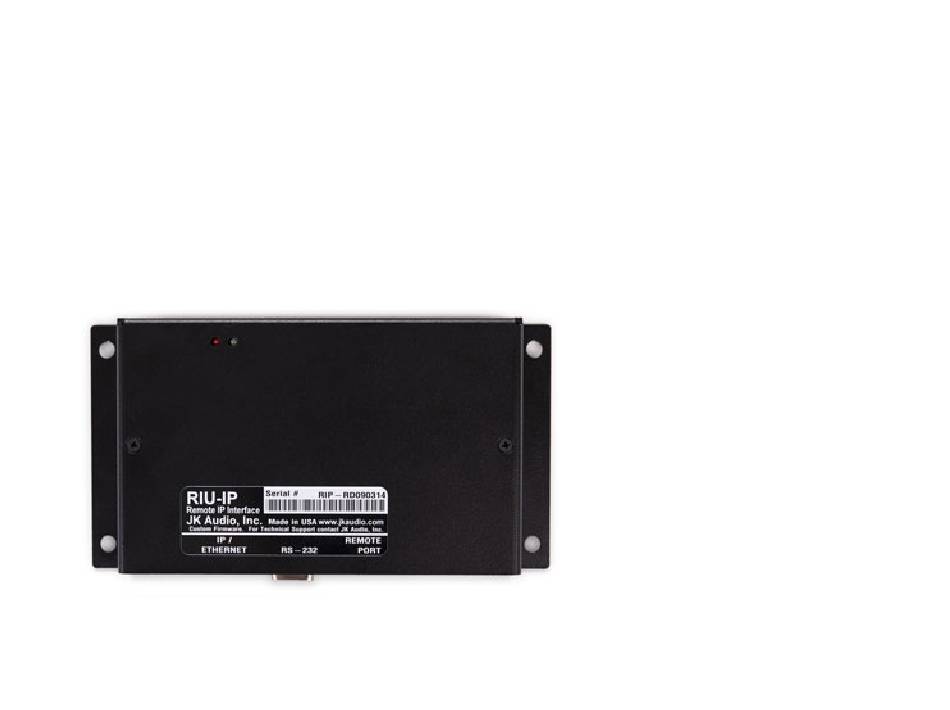

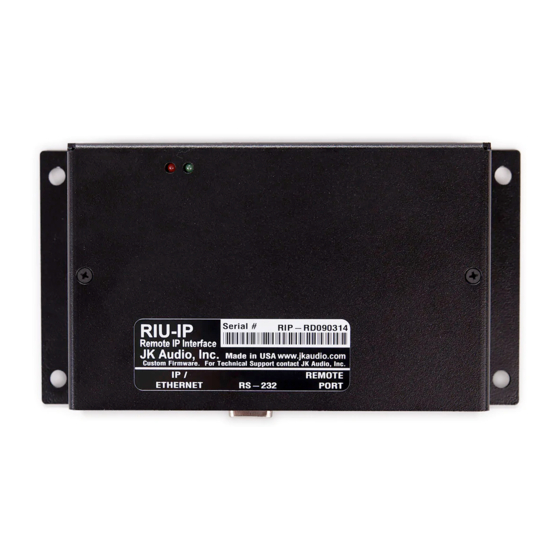

- Page 1 RIU-IP ™ Remote IP Interface User Guide JK Audio...
- Page 2 Welcome Thank You Limited Warranty Thank you for purchasing the RIU-IP is covered by a 2 year warranty JK Audio RIU-IP. Please read this to be free from defective workmanship guide for instructions on setting and materials. To obtain service, up and using your new product.
-
Page 3: Table Of Contents
Contents Overview Setup Applications Settings Compatibility FAQs Technical Information Contents... - Page 4 Features Ring Indicator for Each Line Test Tone Start/Stop per Line Master Send Configuration Call, Drop, Hold, Flash (innkeeper 2 & 4 Only) Dialing Presence On/Off Conference (innkeeper 2 Only) (innkeeper 1x/1rx Only) Caller Ducking On/Off Adjust Transmit and Receive level per line (innkeeper 2 &...
-
Page 5: Overview
Overview Introducing RIU-IP The RIU-IP is a remote control interface designed for use with the JK Audio innkeeper 1x/1rx, innkeeper 2 or innkeeper 4 digital hybrids. This unit contains a web server which allows the user to send and receive control data through their web browser. -
Page 6: Setup
Setup 1. Connect the 10-conductor interface cable (supplied) from the RJ-50 <Remote Port> on the RIU-IP to the <Remote> jack on the back of your JK Audio innkeeper 1x/1rx or innkeeper 2/4. Power will be supplied to the device through this cable so no other power source is necessary. -
Page 7: Setup
To change the IP address see the section on TCP/IP Settings on Page 6. Note: Any time the RIU-IP is reactivated following a power cycle, you need to close all existing browser windows, open a new window and re-enter the URL. Clicking the “Refresh” button will load invalid data to the hybrid. -
Page 8: Applications
All the features that are on the control panel on the innkeeper 1x will be available by remote access through the RIU-IP-1x. However, you will not be able to adjust volume levels remotely with the RIU-IP-1x. - Page 9 2 or innkeeper 4 will be available by remote access through the RIU-IP. You will not have remote access to the phone book or call history; you will need to manually enter each phone number to be dialed.
- Page 10 RIU-IP Remote IP Interface...
- Page 11 http://www.192.168.1.222/index.html http://www.192.168.1.222/index.html Applications...
-
Page 12: Settings
Configuration Change Current Settings This diagram illustrates the Enter the new information in the white Configuration page for the RIU-IP that space provided in the left column. A will enable your system administrator new IP address can be either static... - Page 13 http://www.192.168.1.222/config.html Settings...
-
Page 14: Compatibility
Compatibility Compatibility The RIU-IP is compatible with the innkeeper 1x/1rx, innkeeper 2 and innkeeper 4 if they are have the following minimum firmware versions found on those with the indicated serial numbers or later: Model Version Serial Number innkeeper 1x V3.2.4.1... - Page 15 4 by watching the display as the unit is powered on. Because all of the innkeeper 2 / 4 units shipped prior to release of the RIU-IP had older firmware, the RIU-IP will include new flash chips for each of these units as well as instructions for installation.
-
Page 16: Faqs
I turn the already in use on my network RIU-IP on? system. How do I change the The RIU-IP needs about 30 seconds address to something else? to complete its boot-up sequence. The Please see Page 8 for more... - Page 17 FAQs Can I make a longer cable for How do I connect to my the Remote Port? innkeeper from another location, such as when I am Yes, you can, but be aware that even though they have the same size traveling in another state? connectors that will fit into each of the Talk to your computer network...
-
Page 18: Technical Information
Digital Hybrid Connection: RJ-50 (36” cable included) RS-232 Serial Connection: DB-9 (9600, 8, N, 1) Size: 4.7” x 3.5” x 1.125” Weight: 1 lb. Web Browser Compatibility Firefox: 1.5 or higher Internet Explorer: 6.0 or higher Google Chrome: RIU-IP Remote IP Interface... - Page 20 RIU-IP ™ Remote IP Interface User Guide Version 2/25/19 JK Audio, Inc. 1311 E 6th St. Sandwich, IL 60548 United States Telephone: 815.786.2929 Toll Free: 1.800.jkaudio Fax: 815.786.8502 www.jkaudio.com © 2019 JK Audio, Inc. All rights reserved. JK Audio...
