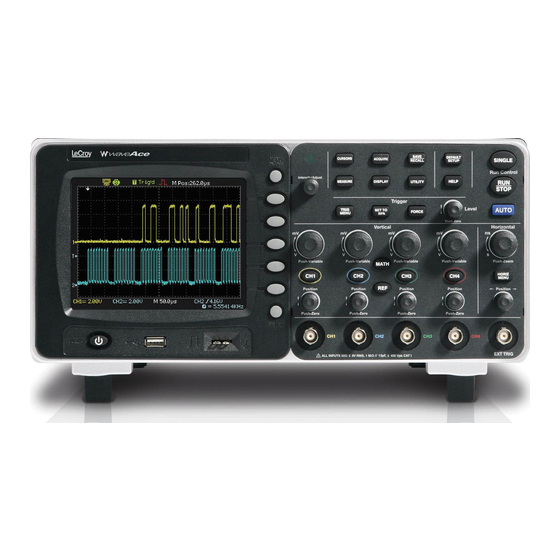

LeCroy WaveAce 202 Specifications

40 mhz–200 mhz
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

WaveAce
Oscilloscopes
™
40 MHz–200 MHz
Debug With Confidence

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WaveAce 202 and is the answer not in the manual?

Questions and answers

Related Manuals for LeCroy WaveAce 202

Summary of Contents for LeCroy WaveAce 202

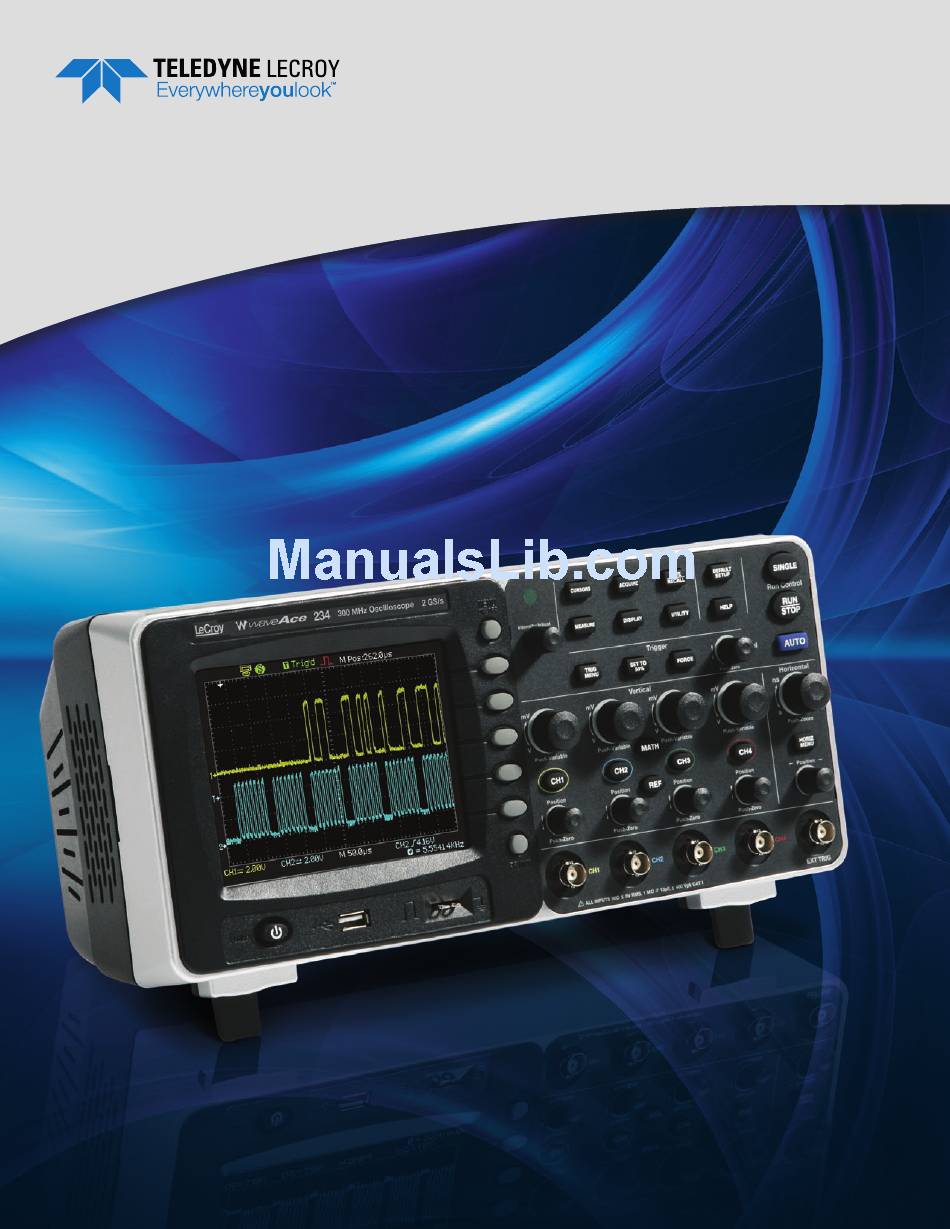

  • Page 1 WaveAce Oscilloscopes ™ 40 MHz–200 MHz Debug With Confidence...
  • Page 2 THE TOOLS AND FEATURES FOR ALL YOUR DEBUG NEEDS Key Features • 40 MHz, 60 MHz, 100 MHz, and 200 MHz bandwidths A good oscilloscope should Long Capture and Zoom • Sample rates up simplify how you work and Small, portable oscilloscopes often to 2 GS/s suffer from short capture time due •...

  • Page 3: Automatic Measurements

    Automatic Measurements Waveform Math Connectivity With 32 standard automatic measure- The WaveAce provides five math The WaveAce provides a USB host port ments the WaveAce simplifies functions including Add, Subtract, on the front panel for saving screen how you work. Display up to five Multiply, Divide and FFT.
  • Page 4 SMART, SIMPLE, EFFICIENT 1. Fast Power Up The WaveAce turns on and is ready for use in under 10 seconds. 2. Display All WaveAce models have a 5.7" color display. 3. Connectivity Saving waveforms, screenshots and setups is easy with the front panel USB port for use with a memory stick.
  • Page 5 8. Push Knobs All WaveAce knobs can be pushed for additional capabilities. Push the V/div knobs to toggle between fixed and variable gain. Push the T/div knob to enter zoom mode and push the position knobs to center the waveform on screen.
  • Page 6 WAVEACE 100 SPECIFICATIONS WaveAce WaveAce Bandwidth 40 MHz 60 MHz Rise Time 8.8 ns 5.8 ns Input Channels Display 5.7” Color, 320 x 240 Resolution Sampling Rate (Single Shot) 500 MS/s (interleaved), 250 MS/s (all channels) Sampling Rate (Equivalent Time) 50 GS/s Peak Detect Period 10 ns...
  • Page 7 WAVEACE 200 SPECIFICATIONS WaveAce WaveAce WaveAce WaveAce WaveAce WaveAce Bandwidth 60 MHz 60 MHz 100 MHz 100 MHz 200 MHz 200 MHz Rise Time 5.8 ns 5.8 ns 3.5 ns 3.5 ns 1.75 ns 1.75 ns Input Channels Display 5.7” Color, 320 x 240 Resolution Sampling Rate (Single Shot) 1 GS/s (all channels) 2 GS/s (interleaved),...

  • Page 8: Ordering Information

    Visit our website to find the most convenient location. © 2010 Teledyne LeCroy, Inc. All rights reserved. Specifications, prices, availability, and delivery subject to change without notice. WaveAceDS-16jan14 Product or brand names are trademarks or requested trademarks of their respective holders.

This manual is also suitable for:

Waveace204Waveace212Waveace214Waveace 222Waveace 224Waveace 101 ... Show all
