DTX-MFM2/GFM2/SFM2 Fiber Modules
Users Manual
Getting Acquainted
The following sections introduce the fiber modules'
features.
Installing and Removing Fiber Modules

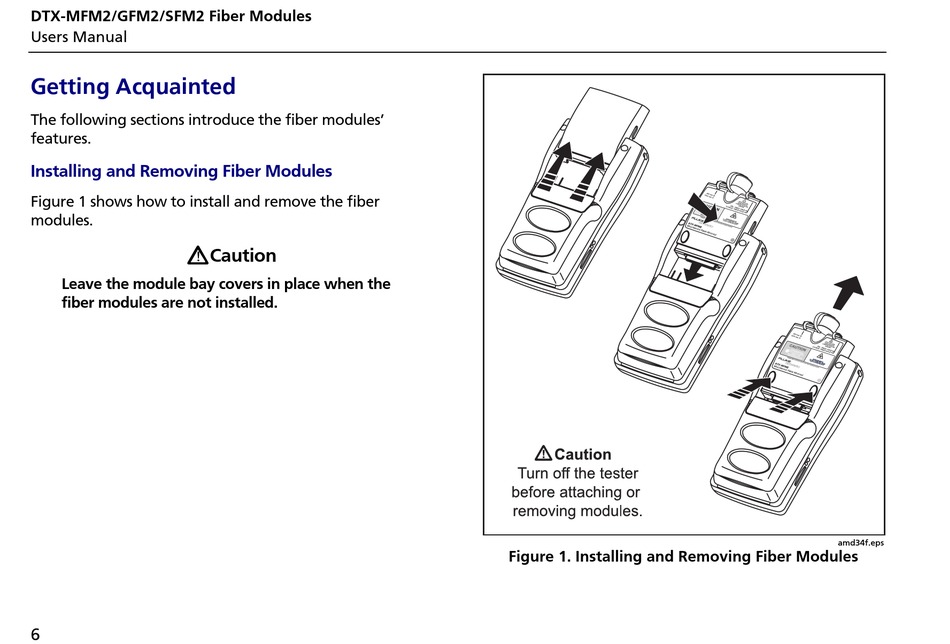

Figure 1 shows how to install and remove the fiber
modules.
W
Caution
Leave the module bay covers in place when the
fiber modules are not installed.
6
Figure 1. Installing and Removing Fiber Modules
amd34f.eps
