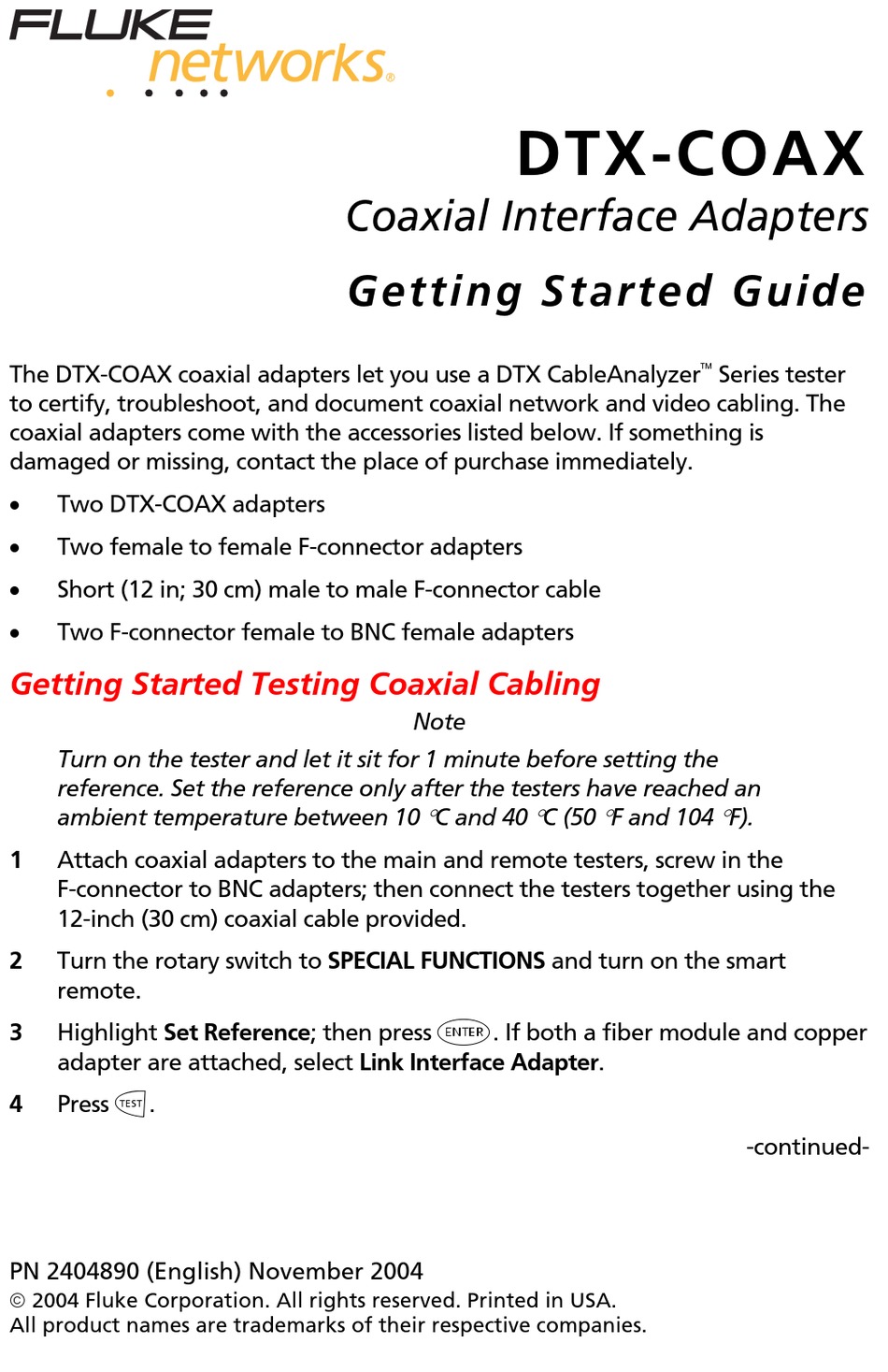

Fluke DTX-COAX Getting Started Manual

The DTX-COAX coaxial adapters let you use a DTX CableAnalyzer
to certify, troubleshoot, and document coaxial network and video cabling. The
coaxial adapters come with the accessories listed below. If something is
damaged or missing, contact the place of purchase immediately.
•

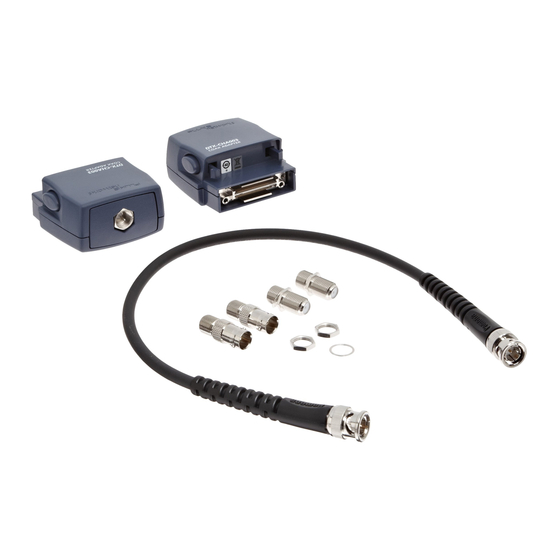

Two DTX-COAX adapters
•
Two female to female F-connector adapters
•
Short (12 in; 30 cm) male to male F-connector cable
•
Two F-connector female to BNC female adapters

Getting Started Testing Coaxial Cabling

Turn on the tester and let it sit for 1 minute before setting the
reference. Set the reference only after the testers have reached an
ambient temperature between 10
1 Attach coaxial adapters to the main and remote testers, screw in the
F-connector to BNC adapters; then connect the testers together using the
12-inch (30 cm) coaxial cable provided.
2 Turn the rotary switch to SPECIAL FUNCTIONS and turn on the smart
remote.
3 Highlight Set Reference; then press
adapter are attached, select Link Interface Adapter.
P
4 Press .
PN 2404890 (English) November 2004
 2004 Fluke Corporation. All rights reserved. Printed in USA.
All product names are trademarks of their respective companies.
Coaxial Interface Adapters
Getting Started Guide
Note
°
C and 40
H
. If both a fiber module and copper
DTX-COAX
° °
C (50 F and 104

Series tester
°
F).
-continued-
