DSX-PLA004S/CHA004S
10 Gigabit Permanent Link/Channel Adapters

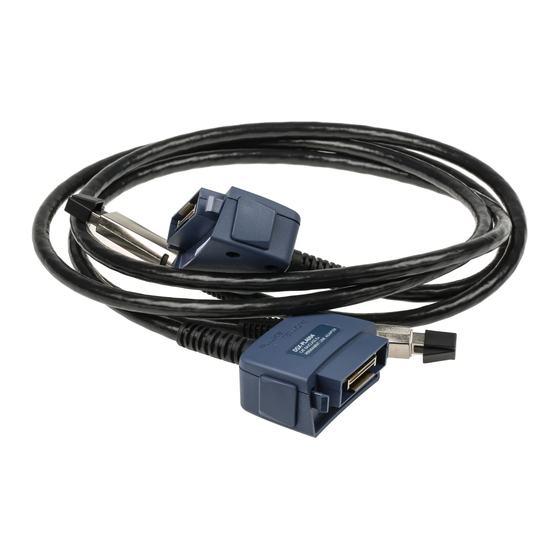

The DSX-PLA004S/CHA004S are sets of two permanent link or two channel adapters for
use with Fluke Networks DSX CableAnalyzer
and certify installed permanent links and channels to ANSI/TIA/EIA Cat 6A standards and
verify that links will support 10 Gigabit Ethernet applications. The adapter's minimal
effect on test results ensures that your results exceed the accuracy and repeatability
specifications given in the proposed TIA-568-B, ISO 11801, and IEEE 802.3an
(10GBASE-T) standards.
Symbols
Warning or Caution: Risk of damage or destruction to equipment or
W
software. See explanations in the manuals.
X
Warning: Risk of fire, electric shock, or personal injury.
This product complies with the WEEE Directive marking requirements. The
~
affixed label indicates that you must not discard this electrical/electronic
product in domestic household waste. Product Category: With reference
to the equipment types in the WEEE Directive Annex I, this product is
classed as category 9 "Monitoring and Control Instrumentation" product.
Do not dispose of this product as unsorted municipal waste.
To return unwanted products, contact the manufacturer's web site shown
on the product or your local sales office or distributor.
40 year Environment Friendly Use Period (EFUP) under China Regulation -
Administrative Measure on the Control of Pollution Caused by Electronic
Information Products. This is the period of time before any of the
identified hazardous substances are likely to leak out, causing possible
harm to health and the environment.
PN 4329932 (English) May 2013, Rev. 2 6/2017
2013-2017 Fluke Corporation
All product names are trademarks of their respective companies.
Users Guide
modules. These adapters let you test
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSX-PLA004S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fluke DSX-PLA004S

Summary of Contents for Fluke DSX-PLA004S

  • Page 1: Users Guide

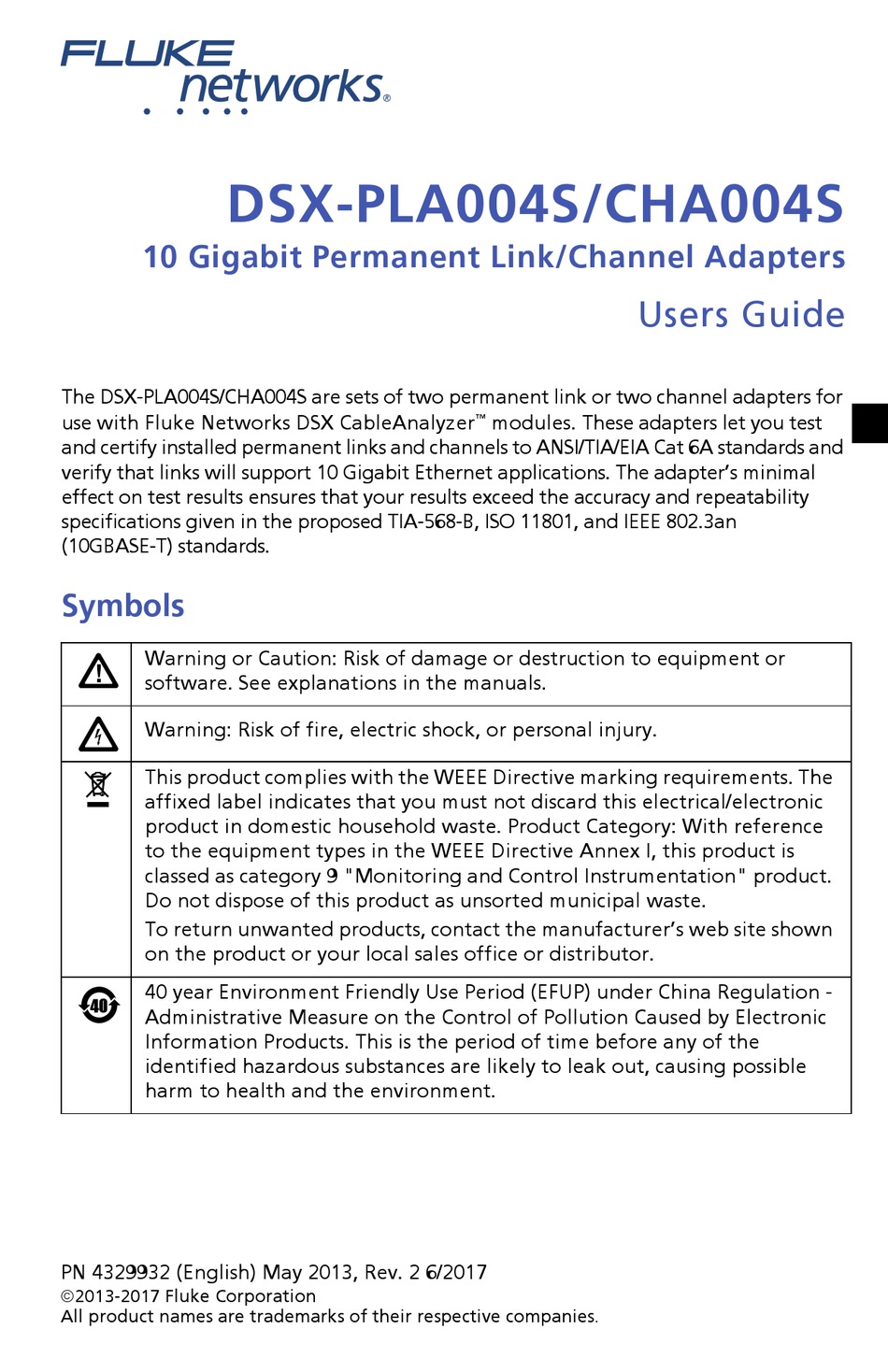

    DSX-PLA004S/CHA004S 10 Gigabit Permanent Link/Channel Adapters Users Guide The DSX-PLA004S/CHA004S are sets of two permanent link or two channel adapters for use with Fluke Networks DSX CableAnalyzer modules. These adapters let you test ™ and certify installed permanent links and channels to ANSI/TIA/EIA Cat 6A standards and verify that links will support 10 Gigabit Ethernet applications.
