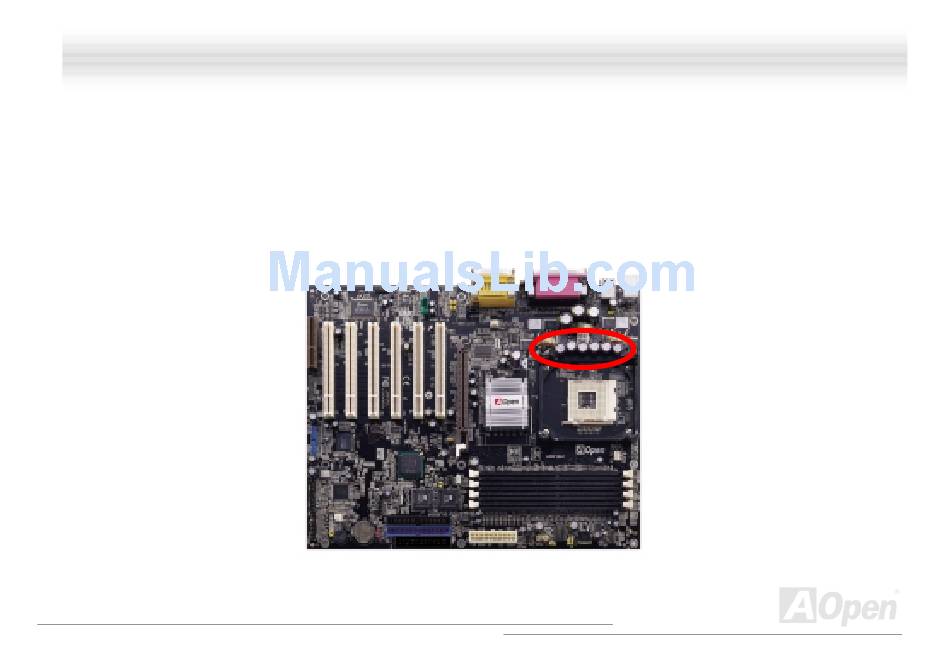

The quality of low ESR capacitor (Low Equivalent Series Resistance) during high frequency operation is very important for the
stability of CPU power. The idea of where to put these capacitors is another know-how that requires experience and detail
calculation.
Moreover, AX4B Max / AX4B U2 implements 2200μF capacitors that have much larger capacity than normal capacitor (1000
and 1500μf) and provide better stability for CPU power.
