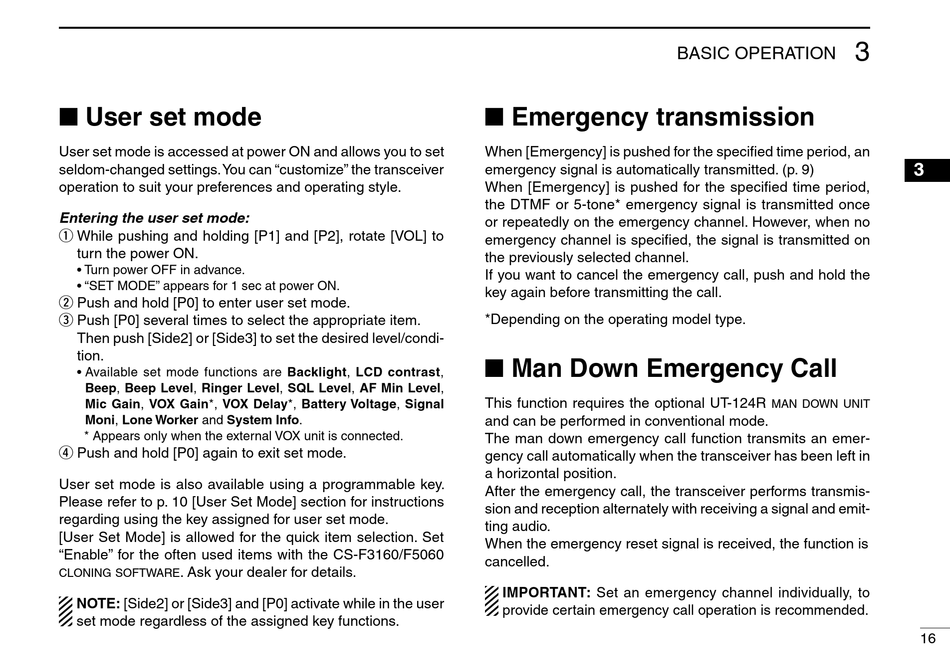

■ User set mode

User set mode is accessed at power ON and allows you to set
seldom-changed settings. You can "customize" the transceiver
operation to suit your preferences and operating style.
Entering the user set mode:
q While pushing and holding [P1] and [P2], rotate [VOL] to
turn the power ON.
• Turn power OFF in advance.
• "SET MODE" appears for 1 sec at power ON.
w Push and hold [P0] to enter user set mode.
e Push [P0] several times to select the appropriate item.
Then push [Side2] or [Side3] to set the desired level/condi-
tion.
• Available set mode functions are Backlight, LCD contrast,
Beep, Beep Level, Ringer Level, SQL Level, AF Min Level,
Mic Gain, VOX Gain*, VOX Delay*, Battery Voltage, Signal
Moni, Lone Worker and System Info.
* Appears only when the external VOX unit is connected.
r Push and hold [P0] again to exit set mode.
User set mode is also available using a programmable key.
Please refer to p. 10 [User Set Mode] section for instructions
regarding using the key assigned for user set mode.
[User Set Mode] is allowed for the quick item selection. Set
"Enable" for the often used items with the CS-F3160/F5060
. Ask your dealer for details.
cloning software
NOTE: [Side2] or [Side3] and [P0] activate while in the user
set mode regardless of the assigned key functions.

■ Emergency transmission

When [Emergency] is pushed for the specified time period, an
emergency signal is automatically transmitted. (p. 9)
When [Emergency] is pushed for the specified time period,
the DTMF or 5-tone* emergency signal is transmitted once
or repeatedly on the emergency channel. However, when no
emergency channel is specified, the signal is transmitted on
the previously selected channel.
If you want to cancel the emergency call, push and hold the
key again before transmitting the call.
*Depending on the operating model type.

■ Man Down Emergency Call

This function requires the optional UT-124R
and can be performed in conventional mode.
The man down emergency call function transmits an emer-
gency call automatically when the transceiver has been left in
a horizontal position.
After the emergency call, the transceiver performs transmis-
sion and reception alternately with receiving a signal and emit-
ting audio.
When the emergency reset signal is received, the function is
cancelled.
IMPORTANT: Set an emergency channel individually, to
provide certain emergency call operation is recommended.
3
BASIC OPERATION
man down unit
