6
BATTERY CHARGING

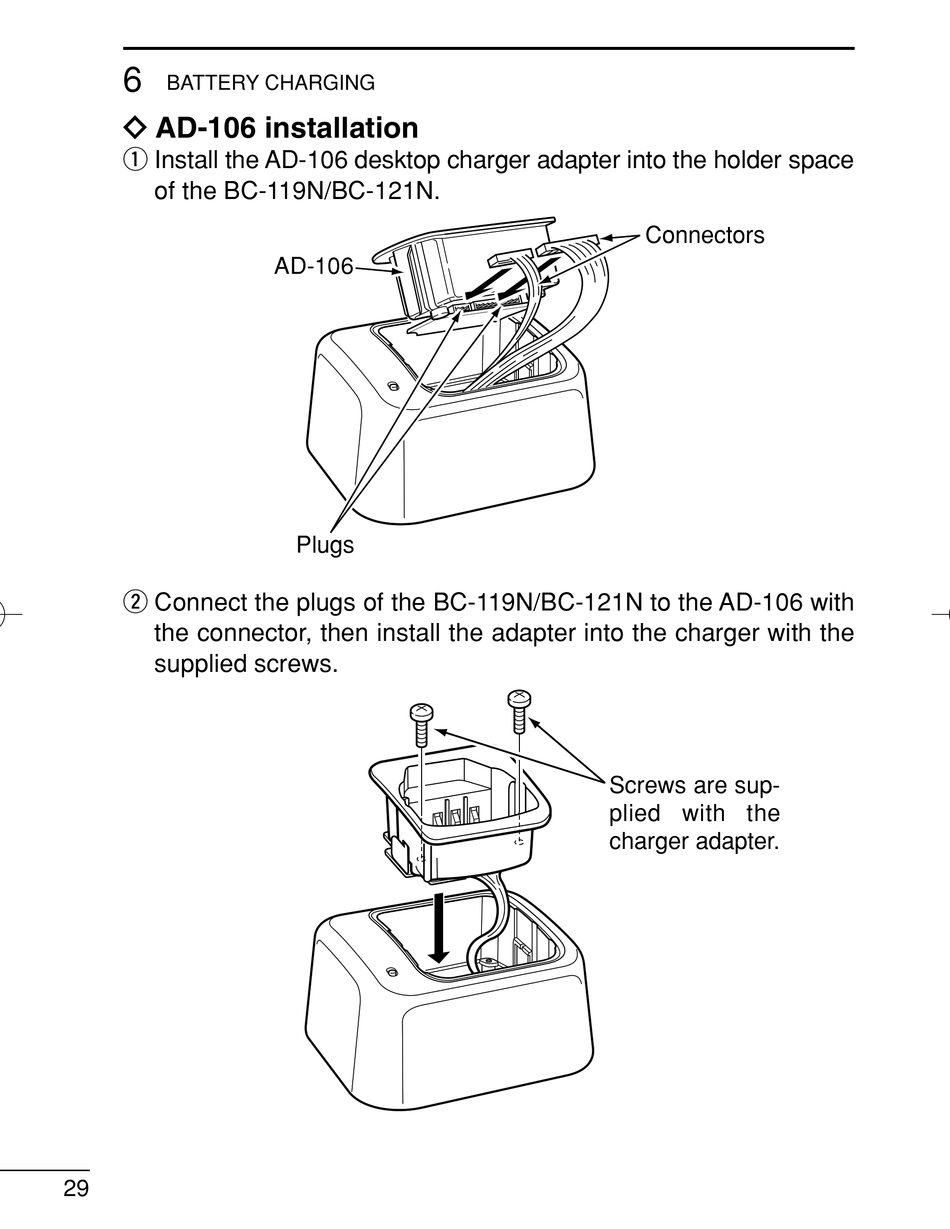

ï AD-106 installation
q Install the AD-106 desktop charger adapter into the holder space
of the BC-119N/BC-121N.
w Connect the plugs of the BC-119N/BC-121N to the AD-106 with
the connector, then install the adapter into the charger with the
supplied screws.
29
AD-106
Plugs
Connectors
Screws are sup-
plied with the
charger adapter.
