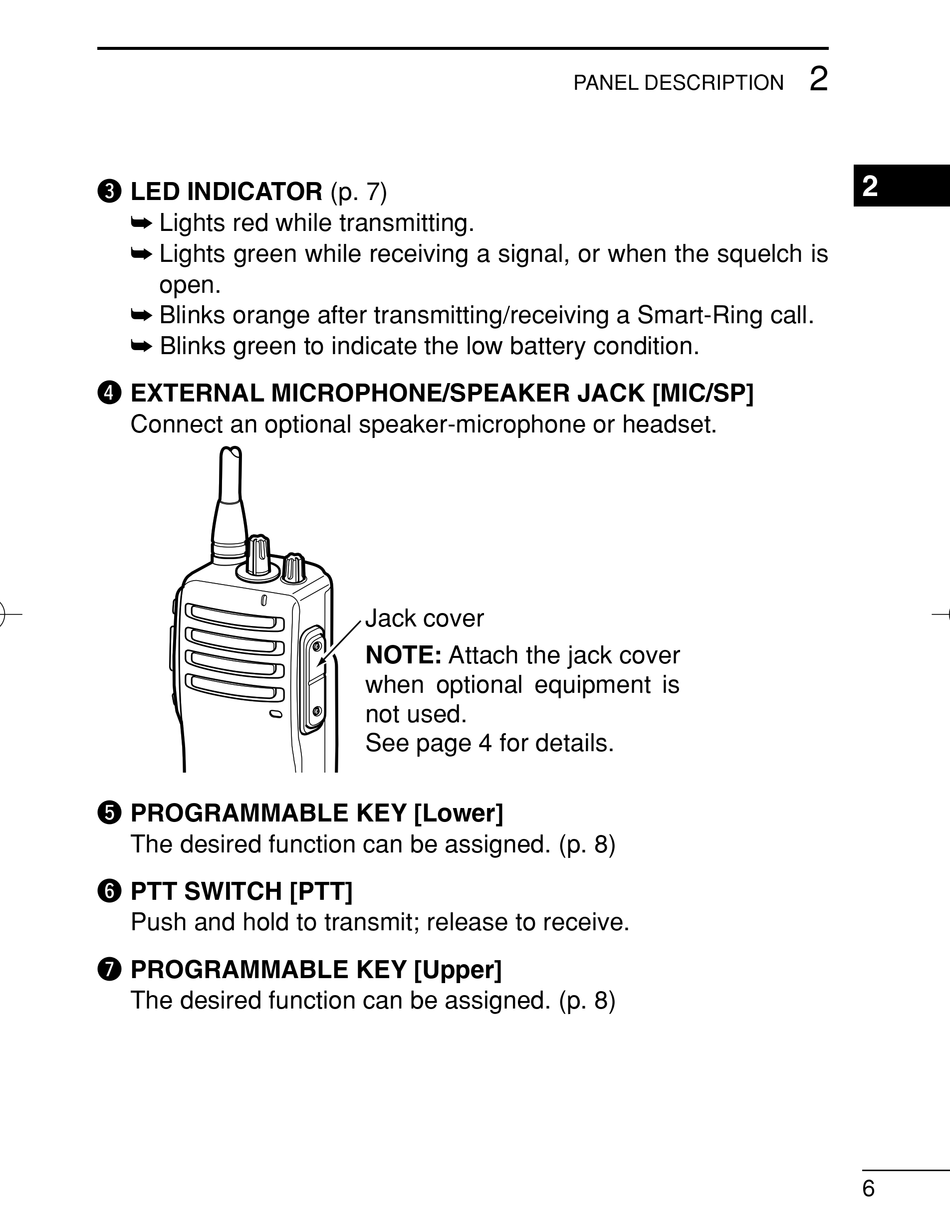

Icom IC-F25SR Instruction Manual page 11

e LED INDICATOR (p. 7)
➥ Lights red while transmitting.
➥ Lights green while receiving a signal, or when the squelch is
open.
➥ Blinks orange after transmitting/receiving a Smart-Ring call.
➥ Blinks green to indicate the low battery condition.
r EXTERNAL MICROPHONE/SPEAKER JACK [MIC/SP]
Connect an optional speaker-microphone or headset.
t PROGRAMMABLE KEY [Lower]
The desired function can be assigned. (p. 8)
y PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
u PROGRAMMABLE KEY [Upper]
The desired function can be assigned. (p. 8)
Jack cover
NOTE: Attach the jack cover
when optional equipment is
not used.
See page 4 for details.
PANEL DESCRIPTION
2
2
6
