Ferroli PREXTHERM N 107 Operating & Installation Manual
Ferroli high-efficiency steel boiler for liquid fuels and/or gas
Hide thumbs
Also See for PREXTHERM N 107:
Table of Contents
Related Manuals for Ferroli PREXTHERM N 107
Summary of Contents for Ferroli PREXTHERM N 107

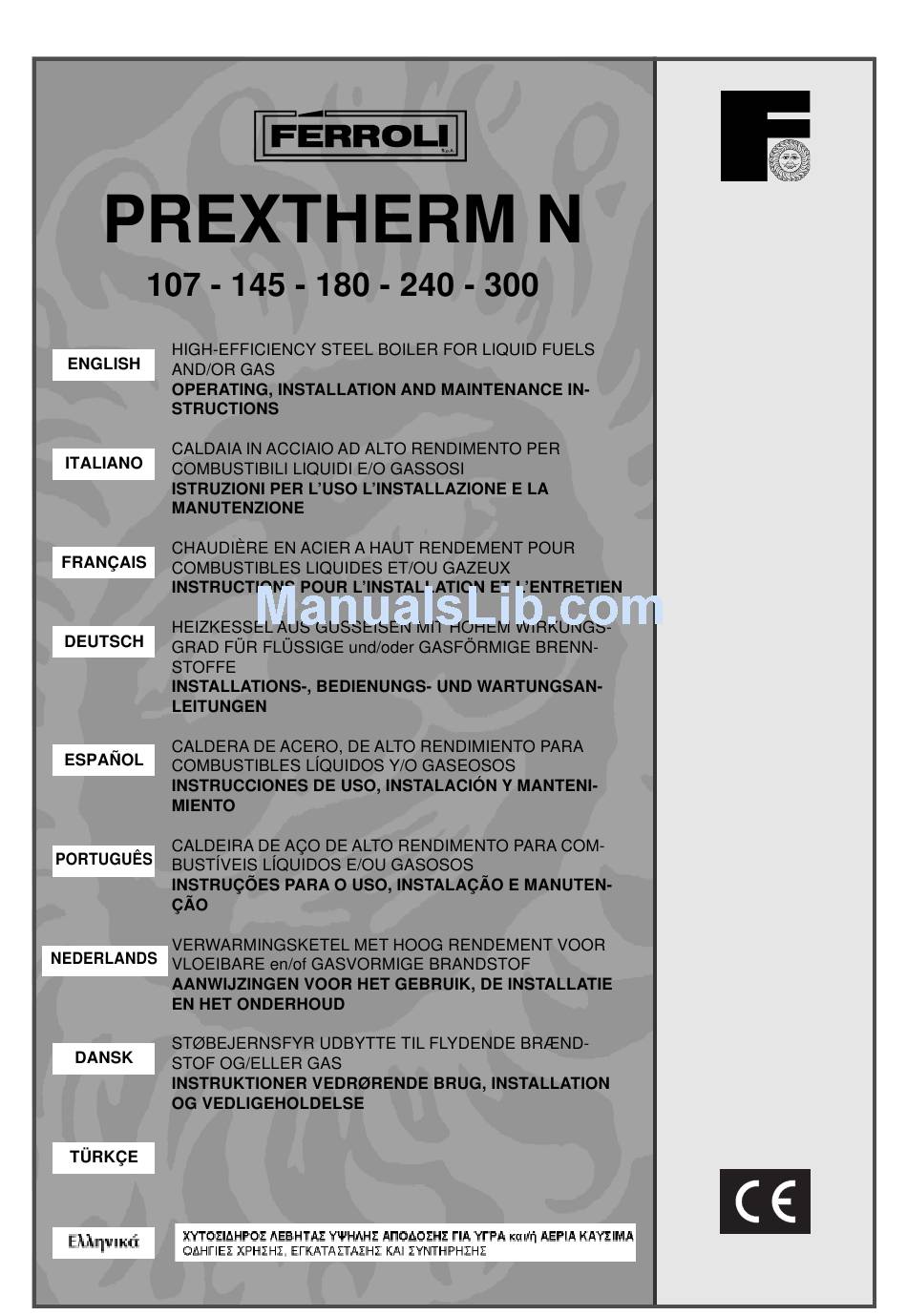

- Page 1 S›v› ve / veya gazl› yak›tlar için yüksek verimli çelik kazan Montaj, kullan›m ve bak›m k›lavuzu Montaj, kullan›m ve bak›m k›lavuzu Montaj, kullan›m ve bak›m k›lavuzu Montaj, kullan›m ve bak›m k›lavuzu Montaj, kullan›m ve bak›m k›lavuzu...
- Page 2 PREXTHERM N Certification The CE Mark attests that Ferroli appliances conform to the requirements specified in the applicable European directives. In particular, this appliance conforms to the following EEC directives: • Gas directive 90/396 • Efficiency directive 92/42 • Low voltage directive 73/23 (amended by 93/ •...
-
Page 3: Installation
PREXTHERM N 1. OPERATING INSTRUCTIONS 1.1 Control panel 1 Ready for electronic control unit 2 Thermohydrometer 3 Safety thermostat 4 Control thermostat, 2 Stages 5 “0 - I - TEST” boiler switch 6 Burner lockout indicator light 7 Burner (not supplied or supplied separately) fig. - Page 4 PREXTHERM N 2.1 Water connections Make the water connections to the appliance according to the indications shown both next to each fitting and in Figure 5 of this booklet. The connections must be made in such a way that the pipes are not under stress. The safety valve must be fitted in the central heating circuit, as close as possible to the boiler, without there being any obstructions or on-off devices between the boiler and the valve.
-
Page 5: Flue Connections
PREXTHERM N 2.4 Flue connections The boiler should be connected to a suitable flue, manufactured in compliance with the standards in force. The pipe between the boiler and the flue must be made from material suitable for this purpose, that is, resistant to both high temperatures and corrosion. The joints should be carefully sealed and the entire length of the pipe between the boiler and the flue should be thermally insulated, to avoid the formation of condensate. - Page 6 PREXTHERM N Fasten the 2 front “side support brackets” Place the sides on the boiler shell. “1” Secure the sides at the front and rear. Fit the wiring protection box “1” using the screws “2” on the sides, and position the pre-wired control panel. Fit the control panel to the sides using the tabs “1”.
-
Page 7: Service And Maintenance
All the adjustment, commissioning and maintenance operations must be performed by Qualified Personnel, in compliance with the standards in force. FERROLI S.p.A. declines all liability for damage to persons and/or things deriving from the tampering with the appliance by unqualified or unauthorised persons. -
Page 8: Maintenance
PREXTHERM N 3.4 Maintenance To ensure the maximum reliability of the heating system and minimum running costs, the boiler must be cleaned regularly, at least once a year. These maintenance operations must be performed by qualified and specialist personnel. In any case, it is good practice to check the condition inside the boiler once a week, by opening the front door, so as to avoid anomalous operation for extended periods. -
Page 9: Main Wiring Diagram
PREXTHERM N Main wiring diagram fig. 6 Electrical connection diagram fig. 7 32 Pump (not supplied) 160 Auxiliary contact 49 Safety thermostat 170 Boiler setting thermostat, 1 stage 72 Room thermostat (not supplied) 171 Boiler setting thermostat, 2 stage 98 Switch 189 Lockout indicator light (not supplied) 114 Water pressure Switch 211 Burner connector...
