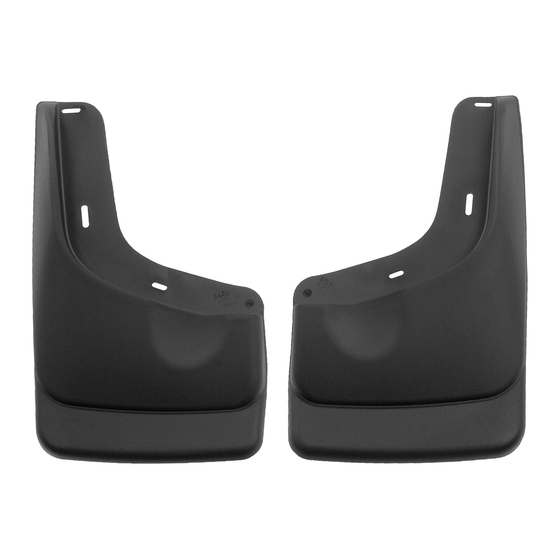

HUSKY LINERS 56561 Installation Instructions

FORD F-150 WITH FACTORY FENDER FLARES
FORD F-150 WITHOUT FACTORY FLARES AND WITH FACTORY RUNNING BOARD
Install Paint Protection Film before mud guards (see other side)
Please read instructions thoroughly before installation.

Tools Required

1/8" drill bit / Drill
•
Short #2 Phillips screwdriver
•
Center punch
•
NOTE: Turn the front wheels all the way to the left or right for mud guard installation. However, it may be necessary
to remove the wheels depending on the tools being used for installation.

F-150 with flares

1. Clean and degrease the mud guard location area on the fender before installation.

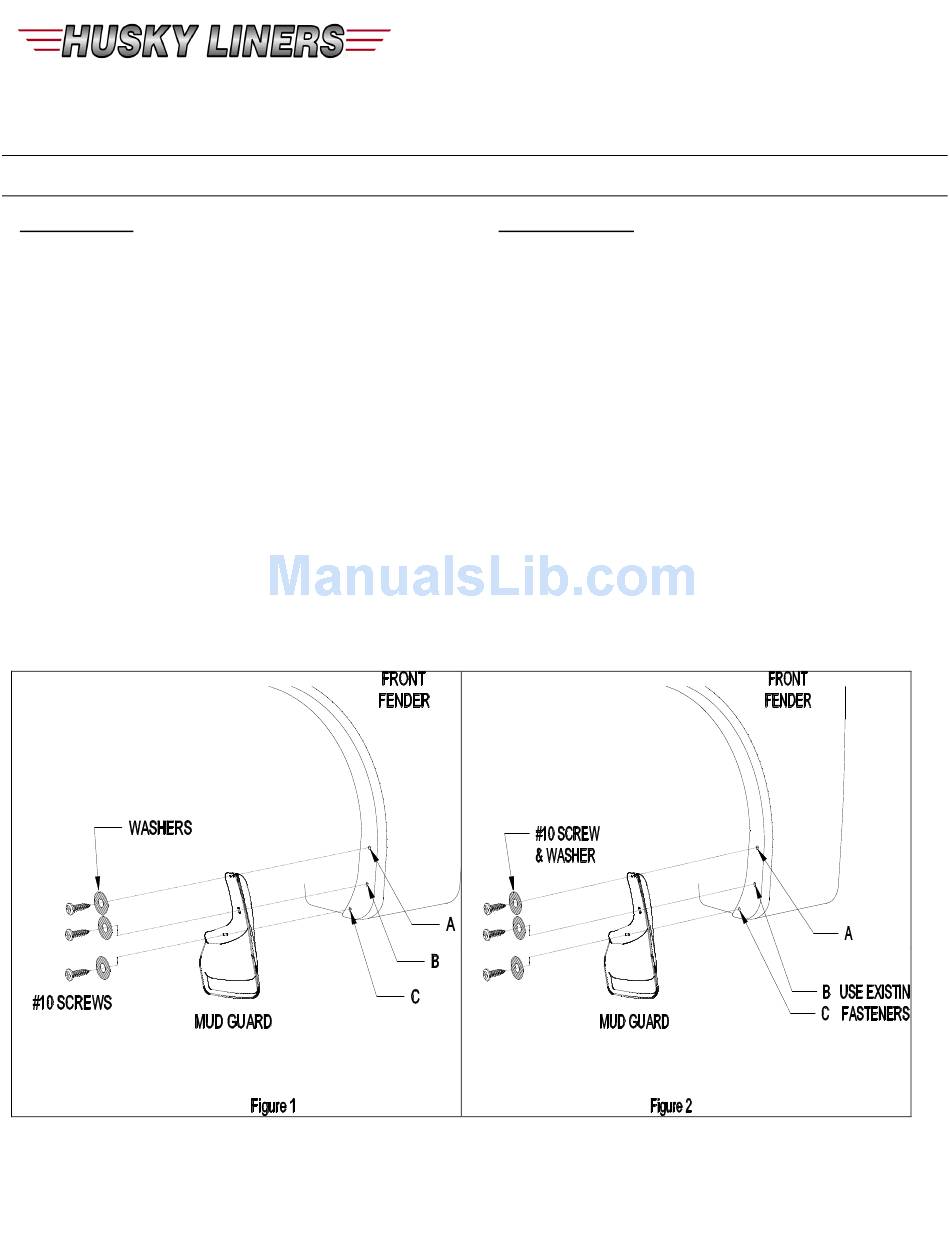

2. Using the mud guard as a template, place the mud guard against fender, mark, center punch and drill 1/8" hole at location B
(Figure 1).
3. Attach mud guard to front fender with #10 screw and washer at location B, check fit and make sure mud guard is parallel to
ground before tightening.
4. Mark, center punch and drill 1/8" holes at locations A and C (Figure 1).
5. Install #10 screws and washers at locations A and C.

F-150 without flares and with running boards

1. Clean and degrease the mud guard location area on the fender before installation.
2. Remove existing fasteners from locations B and C (Figure 2).
3. Attach mud guard to front fender with existing fasteners at locations B and C. Make sure bottom edge of mud guard is parallel to
the ground before tightening fasteners.
4. Using mud guard as a template, mark, center punch, and drill 1/8" holes at locations A and D.
Attach mud guard to fender with #10 screws and washers at locations A and D.
FRONT MUD GUARD INSTALLATION INSTRUCTIONS
F-150 with flares
PART NO.

Package Contents

Driver & passenger side rear mud guard
•
#10 screw (qty. 6)
•
Washers (qty. 6)
•
Paint Protection Film (1 set)
•
Instruction sheet
•
F-150 without flares and with factory running board
5659 / 5656
5659_5656 Front Instr#1170E.doc
Rev: 1
