HUSKY LINERS 6317 Care And Use Instructions

THANK YOU FOR SELECTING A HUSKY FLOOR LINER
FROM WINFIELD CONSUMER PRODUCTS
CARE AND USE INSTRUCTIONS

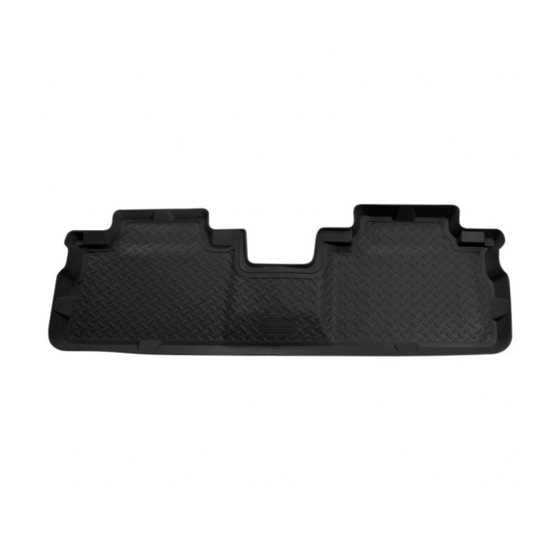

Your new floor liner is custom molded to fit your particular vehicle. The liner is made to take the place of
your factory floor mats. For correct fit, it is necessary to remove the factory floor mat before installing your
new floor liner. However, do not remove the factory-installed carpeting.
Your liner is made from an engineering resin that is lightweight and extremely tough and durable. The
® ®
easiest way to clean your liner is with a damp cloth or sponge. If using a cleaner, 409 or Glass Plus work
® ®
well. Use of Armor All , Son-of-a-Gun or similar items is discouraged as these products make the liner
slick.
INSTALLATION INSTRUCTIONS FOR YOUR FORD
ESCAPE/MAZDA TRIBUTE SECOND SEAT FLOOR LINER
FRONT OF VEHICLE
1 2
FORD ESCAPE'S AND MAZDA TRIBUTE'S COME EQUIPPED WITH TWO STYLES OF CENTER
CONSOLES (SEE PHOTOS ON BACK). YOUR HUSKY LINER WILL ACCOMMODATE BOTH
CONSOLE STYLES BUT SOME TRIMMING MAY BE REQUIRED. TEST FIT YOUR LINER TO
DETERMINE IF YOUR LINER NEEDS TRIMMED. IF TRIMMING IS NECESSARY, IT IS EASILY
DONE BY TRIMMING ALONG THE INSIDE THE RAISED BAND ON OF THE LINER (SEE ABOVE).
ADDITIONAL TRIM AREAS ARE PROVIDED TO ACCOMMODATE THE POWER SEAT TRACK
MOVEMENT ON THE OPTIONAL DRIVER'S SIDE POWER SEAT (SEE #1 AND #2 ABOVE). TRIM
THE RECESSED PORTION OF THE WALL AWAY USING A UTILITY KNIFE OR HEAVY SHEARS.
ADDITIONAL PHOTOS ARE INCLUDED ON THE BACK OF THIS INSTRUCTION SHEET TO AID IN
TRIMMING.
