HUSKY LINERS 5622 Installation Instructions

88-99 GM TRUCK / 92-99 SUBURBAN, TAHOE, YUKON MUD GUARD FRONT/REAR
WITH FENDER FLARES - INSTALLATION INSTRUCTIONS
(see other side for vehicles with out fender flares)
Please read instructions thoroughly before installation.
Tools Required:
1/8" drill bit / Drill
Center punch / Hammer
Short Phillips screwdriver or drill attachment
Marking utensil (fine tip marker, grease pencil, etc.)
NOTE: Turn the front wheels all the way to the left or right for front mud guard installation. It may be necessary
to remove the rear wheels for rear mud guard installation.
FRONT FENDER
1. Clean and degrease the mud guard location area on the front fender before installation.
2. Remove existing fastener from location G and attach mud guard with existing fastener at location G (Figure1), check fit and alignment
before tightening.
3. Using mud guard as a template, center punch, drill 1/8" holes at locations D & E (through mud guard) and F and fasten with #10 screws.
REAR FENDER
1. Clean and degrease the mud guard location area on the rear fender before installation.
2. Remove existing fastener from location F and attach mud guard with existing fastener at location F (Figure 2), check fit and level before
tightening.
3. Using mud guard as a template, center punch, drill 1/8" holes at locations D & E (through mud guard) and G and fasten with #10 screws.
Painting Instructions
1. Clean mud guard with a soap and water solution to remove dirt and other contaminates.
2. Sand painting surface with 320 grit sand paper.
3. Apply a coating of flexible primer-adhesion promoter.
4. Apply a flexible paint as directed by the paint manufacturer
Package Contents

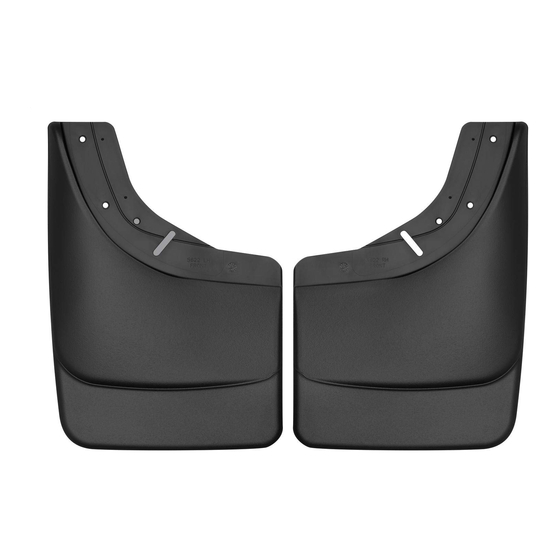

Driver (LH) & passenger (RH) side mud guards
#10 screw (qty. 6)
Instruction sheet
5622
PART NO.
5622 with and with_out #3A7.doc
Rev: 3
