Generac Power Systems Guardian 0043733 Owner's Manual page 59

ITEM PART NO.
1 **0C4905
2 **057822
3 **077043E
4 **050967
5 0A6283
6 057822
7 053660
8 042568
9 022473
10 084918A
*084918B
11 084427
12 022097
13 049813
14 055934D
15 077043A
*USED ON 50HZ VOLTAGE GENERATORS ONLY.
**USED ON NATURAL GAS & L/P VAPOR UNITS ONLY.
Section 7 — Exploded Views and Parts Lists
TO THERMOSTAT
HOUSING
1
2
9
12
8
QTY. DESCRIPTION
1 BARBED EL 45 FITTING
2 CLAMP HOSE #8 .53-1.00
1 CONDUIT FLEX 1" BLACK (15"LG)
1 HOSE 5/8 ID RIA 250F (46"LG)
1 HOSE PREFORMED BLOCK HEATER
2 CLAMP HOSE #8 .53-1.00
1 BARBED STR 1/4 NPT X 5/8
4 SCREW HHC M6-1.0 X 20 G8.8
4 WASHER FLAT 1/4-M6 ZINC
1 HEATER ENG 1000W 120V
1 HEATER BLOCK 1000W 240V
1 BRACKET HEATER W/WELDNUTS
4 WASHER LOCK M6-1/4
2 NUT HEX M6 X 1.0 G8 YEL CHR
1 CLAMP VINYL 1.06 X .406 Z (NOT SHOWN)
1 CONDUIT FLEX .38 ID (42"LG) (NOT SHOWN) (USED ON HEATER CORD)

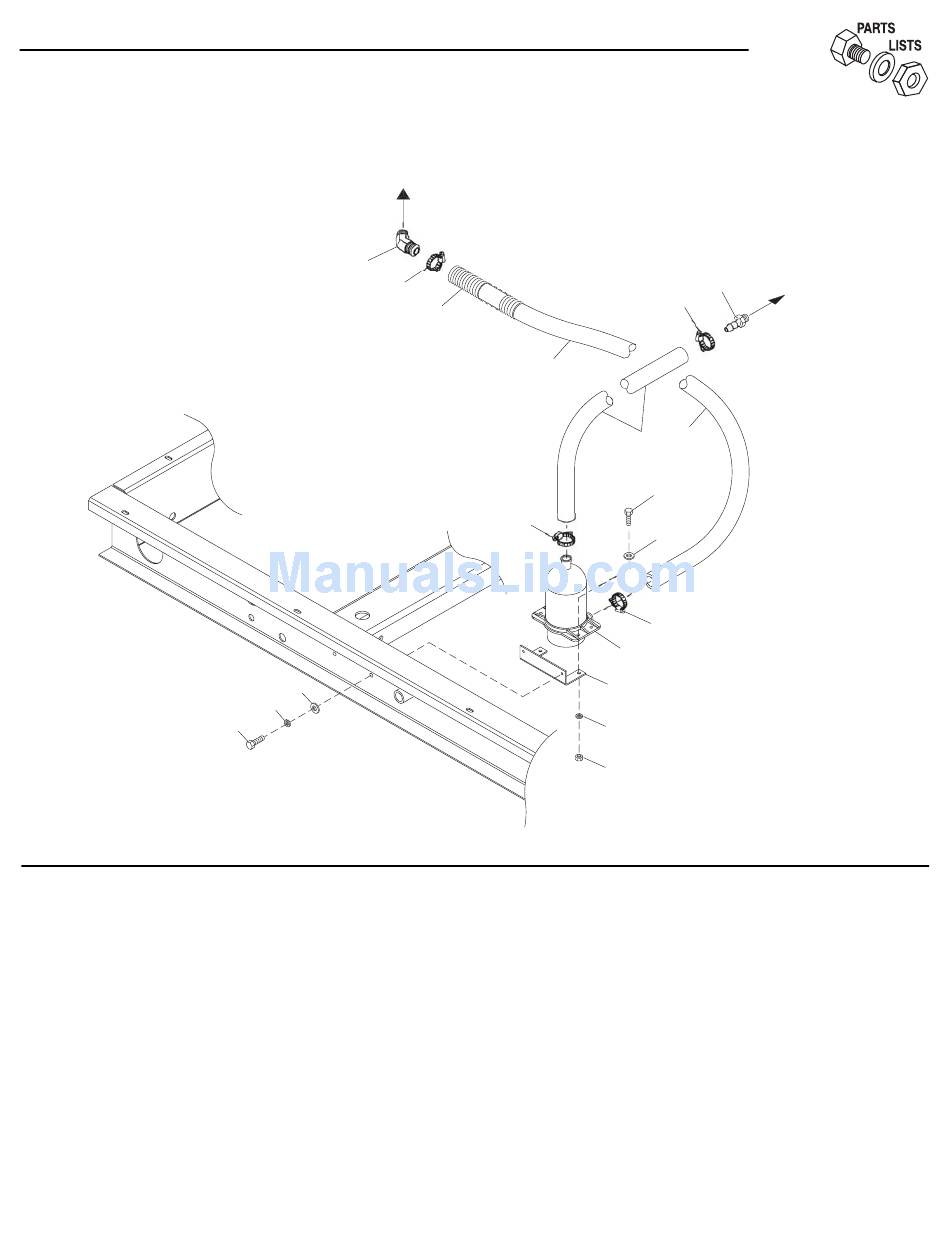

Guardian Liquid-cooled 40 kW Generators
Engine Coolant Heater – Drawing No. 0E2352
3
4
6
7
6
4
5
8
9
2
10
11
12
13
Generac ® Power Systems, Inc. 57
TO ENGINE
BLOCK
