Generac Power Systems Guardian 0043733 Owner's Manual page 58

ITEM PART NO.
1 098290
2 0A3439
3 098958A
4 021888
5 082508
9 036409
11 043146
12 098941A
13 098942A
14 098225
15 022097
16 064526
17 029333A
18 074031
19 051716
20 049226
21 076040
22 098647
23 036409
24 0C2184
56 Generac ® Power Systems, Inc.
Section 7 — Exploded Views and Parts Lists
(Model No. 0043733, 0043734 & 0043735) Guardian Liquid-cooled 40 kW Generators

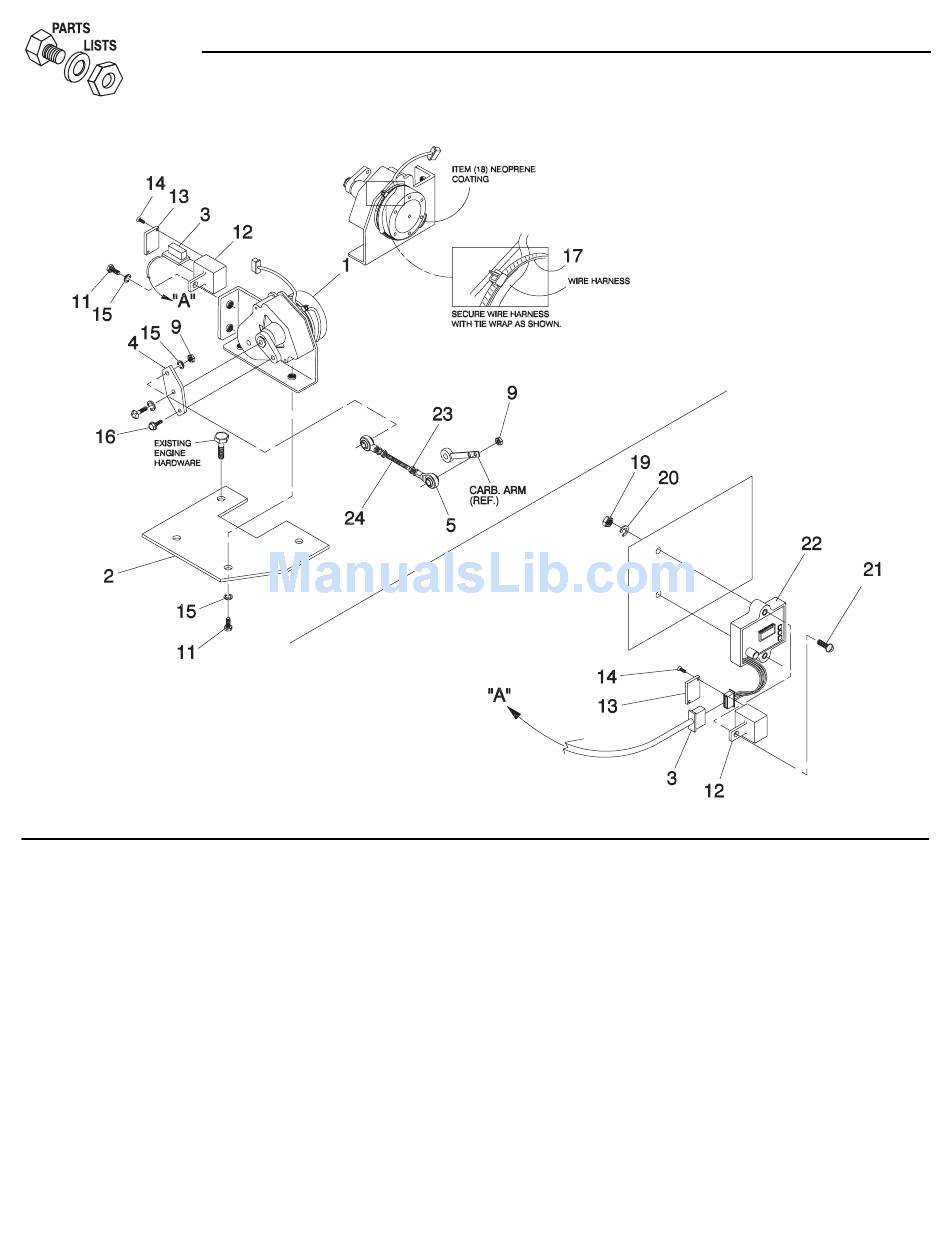

Electronic Governor – Drawing No. 0A2615-F
QTY. DESCRIPTION
1 ASSEMBLY MOTOR STEPPER
1 BRACKET GOVERNOR MOUNTING
1 CONNECTOR INTERFACE ASSEMBLY
1 LEVER STEPPER MOTOR
2 BALL JOINT 1/4-28
2 NUT HEX 1/4-28 STEEL
3 SCREW HHC M6-1.0 X 10 G8.8
2 HOUSING GOVERNOR CONNECT
2 COVER CONN HOUSING
4 SCREW FHM #2 X 5/8 SELF TAP
4 WASHER LOCK M6-1/4
1 SCREW TAP HWH #6-25 X 3/8 ZINC
1 TIE WRAP 7.4" X .19" BLACK UL
- NEOPRENE LIQUID COATING (NOT SHOWN)
2 NUT HEX M5-0.8 G8 YEL CHR
2 WASHER LOCK M5
2 SCREW PPHM M5-0.8 X 16
1 ASSEMBLY L.C. ELECTRONIC GOVERNOR
2 NUT HEX 1/4-28 STEEL
1 STUD THR 1/4-28 X 3-1/2 G2 ZINC
