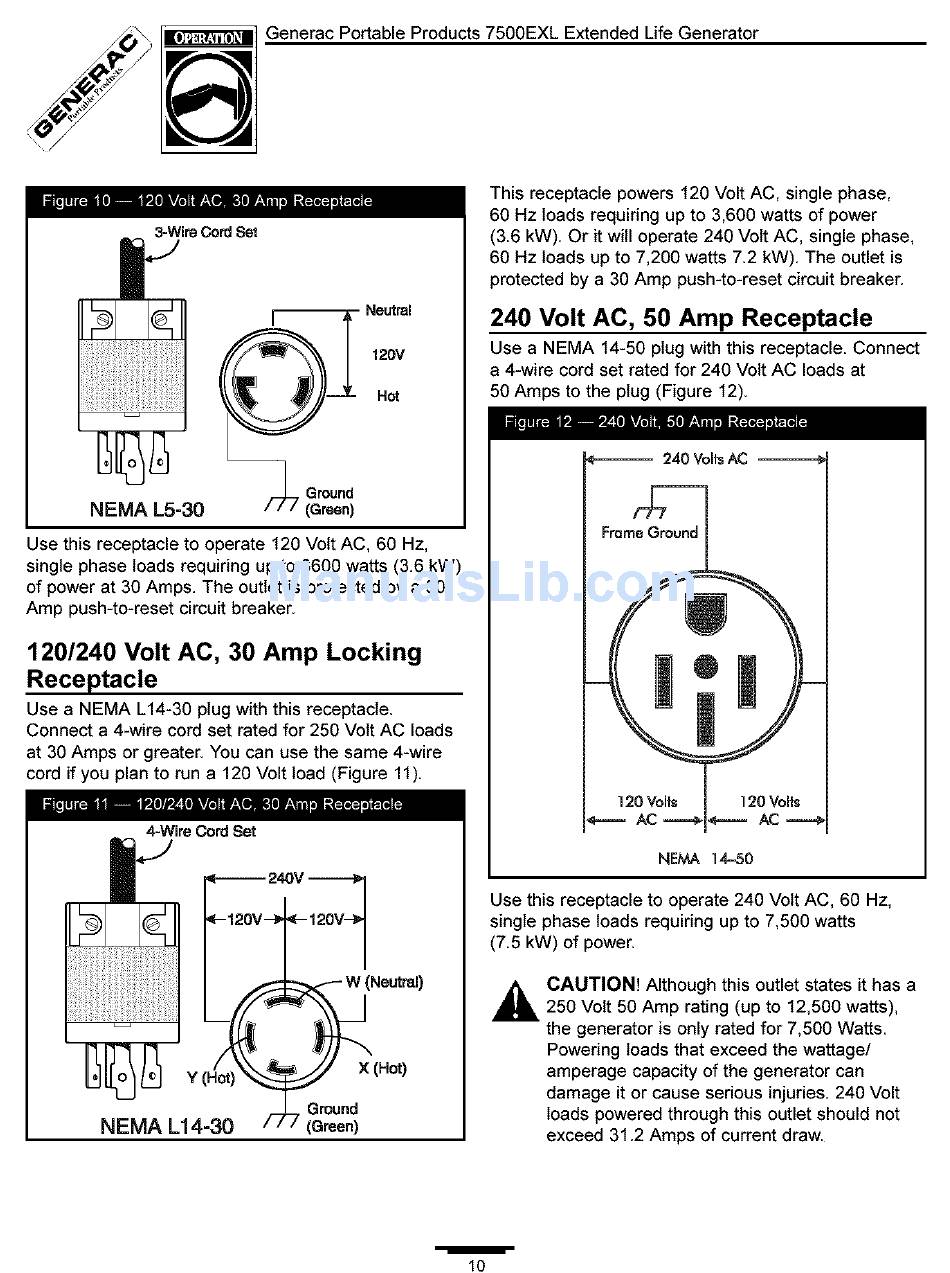

3-Wire Cord Set
Generac Portable Products 7500EXL Extended Life Generator
NEMA L5-30
r7_7 Ground
(Green)
Neutral
120V
Hot
Use this receptacle to operate 120 Volt AC, 60 Hz,
single phase loads requiring up to 3600 watts (3.6 kW)
of power at 30 Amps. The outlet is protected by a 30
Amp push-to-reset circuit breaker.
120/240 Volt AC, 30 Amp Locking
Receptacle
Use a NEMA L14-30 plug with this receptacle.
Connect a 4=wire cord set rated for 250 Volt AC loads
at 30 Amps or greater. You can use the same 4-wire
cord if you plan to run a 120 Volt load (Figure 11)
4-Wire Cord Set
Y (Hot)
X (Hot)
Ground
NEMA L14-30
(Green)
This receptacle powers 120 Volt AC, single phase,
60 Hz loads requiring up to 3,600 watts of power
(3.6 kW). Or it will operate 240 Volt AC, single phase,
60 Hz loads up to 7,200 watts 7.2 kW). The outlet is
protected by a 30 Amp push-to-reset circuit breaker.
240 Volt AC, 50 Amp Receptacle
Use a NEMA 14-50 plug with this receptacle Connect
a 4-wire cord set rated for 240 Volt AC loads at
50 Amps to the plug (Figure 12).
_========= 240 Volts A¢ ===========_
NEMA ]4-50
Use this receptacle to operate 240 Volt AC, 60 Hz,
single phase loads requiring up to 7,500 watts
(7.5 kW) of power.
A
CAUTION!
Although this outlet states it has a
250 Volt 50 Amp rating (up to 12,500 watts),
the generator is only rated for 7,500 Watts.
Powering loads that exceed the wattage/
amperage capacity of the generator can
damage it or cause serious injuries. 240 Volt
loads powered through this outlet should not
exceed 31.2 Amps of current draw.
/
10
