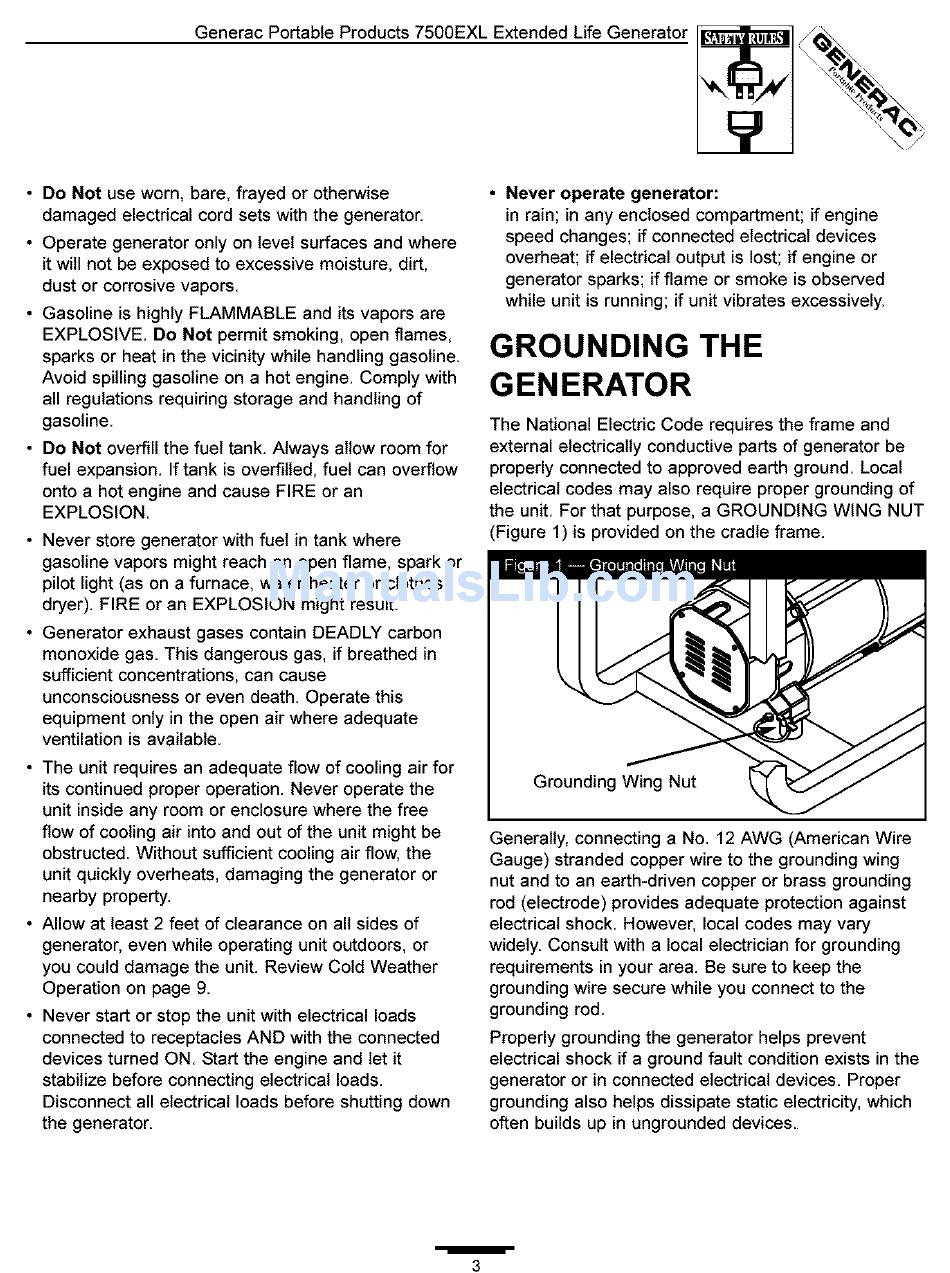

Generac Portable Products 7 500EXL Extended L ifeGenerator
• DoNot useworn,bare,frayedor otherwise
damaged electrical cordsetswiththegenerator.
• Operate generator onlyonlevelsurfaces a ndwhere
it willnotbeexposed toexcessive moisture, dirt,
dustor corrosive vapors.
• Gasoline is highlyFLAMMABLE a nditsvaporsare
EXPLOSIVE. DoNot permit s moking, openflames,
sparksor heatin thevicinity whilehandling gasoline.
Avoidspilling gasoline ona hotengine. C omply with
all regulations r equiring s torage andhandling of
gasoline.
• DoNotoverfill t hefueltank.Always allowroomfor
fuelexpansion. If tankis overfitled, fuelcanoverflow
ontoa hotengine andcauseFIREor an
EXPLOSION.
• Never s toregenerator withfuelin tankwhere
gasoline vaporsmight r eachanopenflame,sparkor
pilotlight(asona furnace, w aterheater o r clothes
dryer). F IREor an EXPLOSION m ightresult.
• Generator exhaust g asescontain DEADLY carbon
monoxide g as.Thisdangerous g as,if breathed in
sufficient c oncentrations, cancause
unconsciousness or evendeath. O perate this
equipment onlyintheopenairwhere adequate
ventilation is available.
• Theunitrequires anadequate flowofcooling airfor
itscontinued proper o peration. Neveroperate the
unitinsideanyroomorenclosure where thefree
flowofcooling airintoandoutofthe unitmight b e
obstructed. Without s ufficient cooling airflow,the
unitquickly overheats, damaging t he generator or
nearby property.
• Allowat least2 feetof clearance o nallsidesof
generator, evenwhileoperating unitoutdoors, or
youcoulddamage the unit.Review ColdWeather
Operation o n page9.
• Never s tartorstopthe unitwithelectrical loads
connected t o receptacles ANDwiththe connected
devices turnedON.Start t heengine andlet it
stabilize before connecting e lectrical loads.
Disconnect allelectrical loadsbefore shutting down
thegenerator.
• Never operate generator:
in rain; in any enclosed compartment; if engine
speed changes; if connected electrical devices
overheat; if electrical output is lost; if engine or
generator sparks; if flame or smoke is observed
while unit is running; if unit vibrates excessively.
GROUNDING THE
GENERATOR
The National Electric Code requires the frame and
external electrically conductive parts of generator be
properly connected to approved earth ground. Local
electrical codes may also require proper grounding of
the unit. For that purpose, a GROUNDING WING NUT
(Figure 1) is provided on the cradle frame.
Grounding Wing Nut
Generally, connecting a No. 12 AWG (American Wire
Gauge) stranded copper wire to the grounding wing
nut and to an earth-driven copper or brass grounding
rod (electrode) provides adequate protection against
electrical shock. However, local codes may vary
widely. Consult with a local electrician for grounding
requirements in your area. Be sure to keep the
grounding wire secure while you connect to the
grounding rod.
Properly grounding the generator helps prevent
electrical shock if a ground fault condition exists in the
generator or in connected electrical devices. Proper
grounding also helps dissipate static electricity, which
often builds up in ungrounded devices.
/
3
