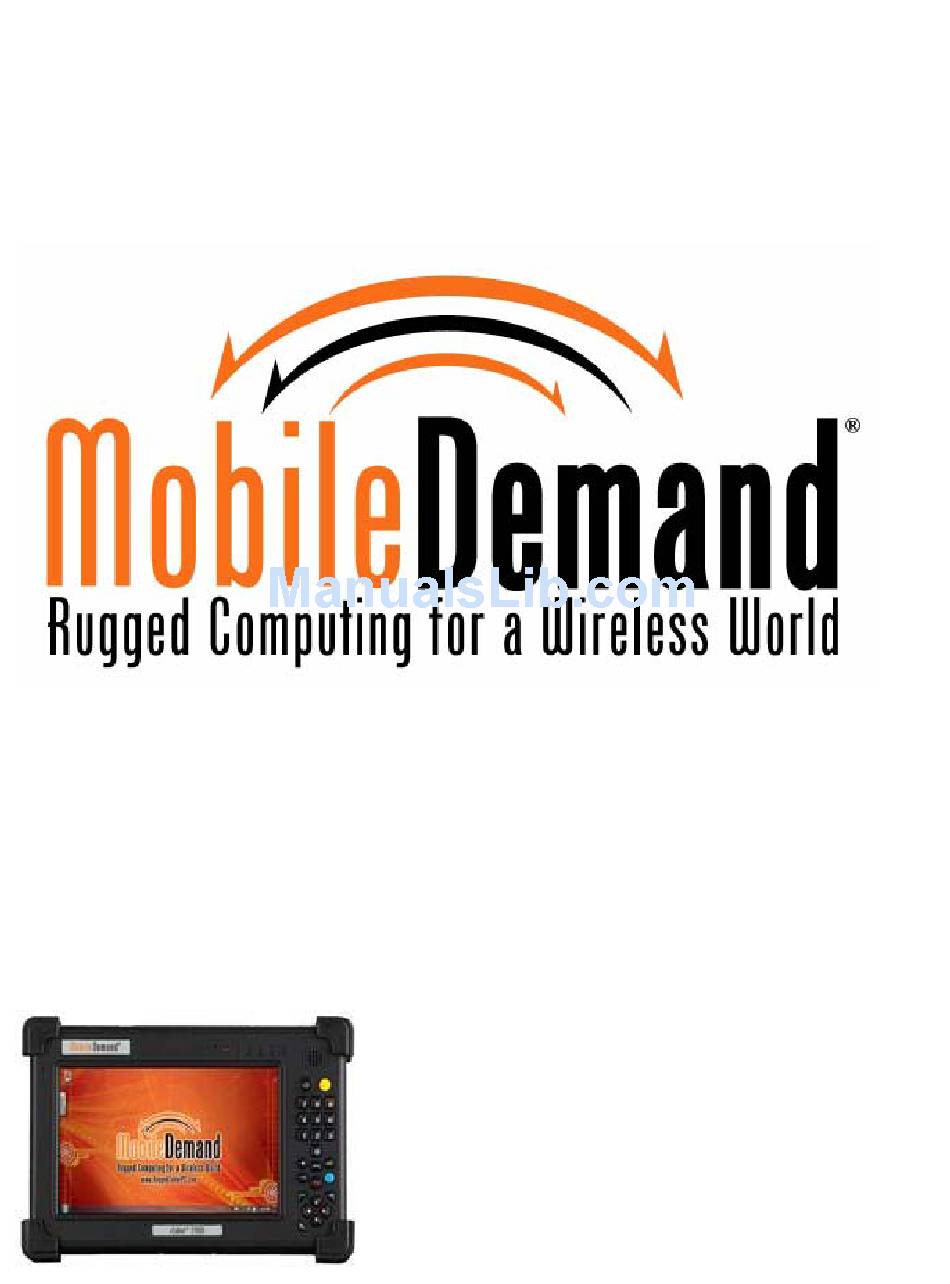

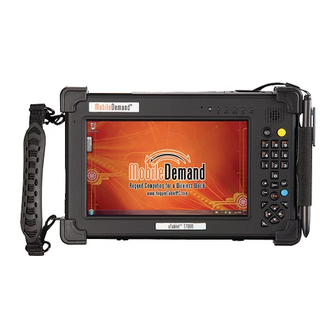

  • Page 1 T7000 Rugged Tablet PC User's Guide...
  • Page 2 Products that are referred to in this document may be either trademarks and/or registered trademarks of the respective owners. The publisher and the author make no claim to these trademarks. MobileDemand is a registered trademark of MobileDemand, LC. MobileDemand logos are registered trademarks of MobileDemand, LC.

  • Page 3: Table Of Contents

    ............................4 About Your xTablet T7000 Rugged Tablet PC ............................5 About Windows 7 Professional Quick Start ..............................8 ............................8 Turning On the xTablet T7000 for the First Time ............................9 Turning Off the xTablet T7000 Hardware and Software ..............................12 ............................13 Front View LED Indicators ............................14...
  • Page 4 Contents Appendix ..............................38 ............................38 Federal Communications Commission Statement ............................39 European Notice ............................40 Safety Caution ............................40 Battery Disposal ............................40 CAUTION FOR ADAPTER ............................40 BATTERY CAUTION xTablet T7000 Rugged Tablet PC User's Guide...
  • Page 5 Before You Begin xTablet T7000 Rugged Tablet PC User's Guide...

  • Page 6: Before You Begin

    Internet. This user's guide contains all the information you need to set up and use your xTablet T7000. It describes all the features of the xTablet T7000 in an easy-to-read yet thorough manner.

  • Page 7: Safety And Maintenance

    Slots and openings in the system cabinet are for ventilation purposes. Do not block or cover these openings or the system could overheat. Do not use or store the xTablet T7000 near a source of heat or dust.

  • Page 8: Features

    Processor Z530P (512K Cache, 1.60 GHz, 533 MHz FSB) Hard Drive The xTablet T7000 has a high-capacity hard disk drive or a solid state drive option to store your favorite programs and large multimedia files. Built-in Wireless LAN and LAN Capability A built-in 802.11a/b/g/n and 10/100 Mbps Ethernet port allow you to access the Internet or a local area...

  • Page 9: About Windows 7 Professional

    Are compatible with Windows 7. Can be added to a security-enhanced wireless network in less than a minute (for "Compatible with Windows 7" wireless products). Are ready to use out of the box. xTablet T7000 Rugged Tablet PC User's Guide...
  • Page 10 Before You Begin xTablet T7000 Rugged Tablet PC User's Guide...
  • Page 11 Quick Start xTablet T7000 Rugged Tablet PC User's Guide...

  • Page 12: Quick Start

    Quick Start Use the following procedures to turn on your xTablet T7000 rugged tablet PC and get it up and running: "Turning On the xTablet T7000 for the First Time" "Turning Off Your xTablet T7000 Turning On the xTablet T7000 for the First Time Use the following instructions the first time an xTablet T7000 is turned on.

  • Page 13: Turning Off The Xtablet T7000

    If you are going to be away from the xTablet T7000 for a short period, there are ways of conserving power without shutting down the system. See the "Power Management" chapter for more information.
  • Page 14 Quick Start xTablet T7000 Rugged Tablet PC User's Guide...
  • Page 15 Hardware and Software xTablet T7000 Rugged Tablet PC User's Guide...

  • Page 16: Hardware And Software

    Hardware and Software Before you begin using your xTablet T7000 rugged tablet PC, read this chapter to familiarize yourself with the main components installed in the system. This chapter introduces the different components and controls of your xTablet T7000, including hardware components, software, audio and video systems, and a full array of ports and connectors, including standard input/output (I/O) ports for quickly and easily adding peripheral devices.

  • Page 17: Front View

    Hardware and Software Front View 1. Microphone 2. Light sensor 3. LED indicators 4. Speaker 5. Keypad xTablet T7000 Rugged Tablet PC User's Guide...

  • Page 18: Led Indicators

    Flashing Red Battery is at slow -pow er (critical) state and needs recharging Green xTablet T7000 is reading from or w riting to the built-in hard disk No light WLAN is not pow ered and Bluetooth is not pow ered...

  • Page 19: Front View Buttons

    Plus/Minus Button Same function as on a standard keyboard Up/Dow n/Left/Right Buttons Same function as on a standard keyboard Security Button Similar function as pressing [Ctrl] + [Alt] + [Delete] on a standard keyboard xTablet T7000 Rugged Tablet PC User's Guide...

  • Page 20: Right And Bottom View

    The following jacks, ports, and connectors can be built into the right and bottom sides of the xTablet T7000 unit. Microphone jack Headphone jack USB port RJ-45 jack Docking and multi I/O connectors MobileDemand has three main configurations available: xTablet T7000 Rugged Tablet PC User's Guide...

  • Page 21: Configuration 1 - I/O 3

    With the built-in Ethernet LAN, you can make LAN connection without installing PC cards. Connection speed is 10/100 Mbps. Headphone jack Connect a stereo headset or external speakers to this jack to listen to multimedia. Microphone-in jack Connect a microphone in this jack to record audio. xTablet T7000 Rugged Tablet PC User's Guide...

  • Page 22: Configuration 2 - I/O 6

    With the built-in Ethernet LAN, you can make LAN connection without installing PC cards. Connection speed is 10/100 Mbps. 9-pin Serial communications jack Use this jack to connect to your printer for hard-copy printing. xTablet T7000 Rugged Tablet PC User's Guide...

  • Page 23: Configuration 3 - I/O 4

    USB ports The Universal Serial Bus (USB) is the latest standard for attaching monitors, input devices, scanners, and other devices to a PC. USB devices can be chained together on a single cable. xTablet T7000 Rugged Tablet PC User's Guide...

  • Page 24: Top View

    3. GPS Antenna Cover 4. SD card slot The SD card slot can be used as an interface between your xTablet T7000 and a variety of devices. Press an SD card into the SD card slot until it latches into place.

  • Page 25: Left View

    AC adapter that is included 2. Security lock slot (Kensington slot) install an anti-theft device to this lock Back View 1. Camera 2. Battery 1 3. Battery 1 latch 4. Battery 2 latch 5. Battery 2 xTablet T7000 Rugged Tablet PC User's Guide...

  • Page 26: Camera

    When you are ready to use the camera, you must take the xTablet T7000 out of its dock before you can use the camera. Then you need to activate the utility before you can capture and retain the pictures or videos you want to take.

  • Page 27: Stylus

    Hardware and Software Stylus You can use the stylus (touch pen) like a mouse, a pen, or your finger on the xTablet T7000 display to perform regular left-click and right-click functions and to write in applications where applicable. When you are not using the stylus, you should store the stylus in the stylus holder that is on the right side of the xTablet T7000.

  • Page 28: Remove The Rubber Card Cover

    To remove the card slot cover 1. With the xTablet T7000 face down, use a Phillips screwdriver to unscrew and remove the card slot cover caps on either side of the cover. 2. Detach the rubber cover hinges from the xTablet T7000.

  • Page 29: Measure The Distance From Cover To T7000

    You must measure the distance from the top of the lip on the express card cover to the xTablet T7000 when it is resting on, but not secured to, the T7000.

  • Page 30: Adjust The Distance

    Hardware and Software Adjust the Distance When the distance from the lip of the express card cover to the xTablet T7000 is not within the recommended ideal range (3/8” to ½”) – you can adjust the distance using the rubber spacers provided in the kit to achieve the ideal distance.

  • Page 31: Secure The Express Card Cover

    2. Press the express card cover down firmly and hold it against the top of the xTablet T7000. 3. Insert the short screws through the top and tighten to fasten the express card cover to the top of the xTablet T7000.

  • Page 32: Global Positioning System (Optional)

    The ScanWizard application is installed on the xTablet T7000 desktop as a shortcut for you. It activates the bar code scanner that is built into your xTablet T7000, such as the Intermec EA15 2-D Imager Engine. Contact the MobileDemand technical support at 319-363-4121 for assistance.
  • Page 33 Power Management xTablet T7000 Rugged Tablet PC User's Guide...

  • Page 34: Power Management

    Battery" "Replacing the Battery Pack " Caution: The xTablet T7000 Rugged Tablet PC processor was specially designed to consume little power, and generates very little heat. However, working in a hot environment, or working for long periods may raise the temperature.

  • Page 35: Monitoring The Battery Power

    Note: If you do not see the Power icon in the taskbar, select Start > Control Panel > Notification Area Icons, select the Show icon and notifications behavior from the Power drop-down list, then tap OK. xTablet T7000 Rugged Tablet PC User's Guide...

  • Page 36: Configuring The Low Battery Alarms

    Power Management Configuring the Low Battery Alarms You can configure how your xTablet T7000 will respond to a low battery condition or a critical battery condition. To configure the alarms 1. Select Start > Control Panel > Power Options, then click Change plan settings on the power plan you want to modify, such as the recommended Balanced plan.

  • Page 37: Charging The Battery

    Charging the Battery When you use the AC adapter to connect your xTablet T7000 to a power outlet, the internal battery will automatically begin to recharge. While the battery is charging, the Battery Charge indicators on the LED indicator panel will be active after 6 to12 seconds.

  • Page 38: Replacing The Battery Pack

    Power Management Replacing the Battery Pack Note: The battery packs are hot-swappable. Over time, battery capacity gradually decreases. MobileDemand recommends that you replace your battery packs when you notice that they begin to store significantly less charge. To change the battery 1.
  • Page 39 Calibration xTablet T7000 Rugged Tablet PC User's Guide...

  • Page 40: Calibration

    1. Select Start > Control Panel > Tablet PC Settings, then tap Calibrate to activate the calibration screen. 2. Hold the pen and position your stylus as you normally do when working with the xTablet T7000. 3. Use the pen tip to click on the center of the crosshairs. The wheel moves to another location on- screen.
  • Page 41 Appendix xTablet T7000 Rugged Tablet PC User's Guide...

  • Page 42: Appendix

    This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instruction as documented in this manual. xTablet T7000 Rugged Tablet PC User's Guide...

  • Page 43: European Notice

    European standards dictate maximum radiated transmit power of 100mW EIRP and frequency range 2.400-2.4835GHz; In France, the equipment must be restricted to the 2.4465-2.4835GHz frequency range and must be restricted to indoor use. xTablet T7000 Rugged Tablet PC User's Guide...

  • Page 44: Safety Caution

    The manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution of the connecting xTablet T7000 Rugged Tablet PC User's Guide...
  • Page 45 “To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the Equivalent Isotropically Radiated Power (EIRP) is not more than that required for successful communication.” xTablet T7000 Rugged Tablet PC User's Guide...
  • Page 46 Appendix xTablet T7000 Rugged Tablet PC User's Guide...
