OPERATION

2.1 KNOW THE GENERATOR

Read the Owner's Manual and Safety Rules before
operating this generator.
Compare the generator to this illustration to become familiarized with
the locations of various controls and adjustments. Save this manual for
future reference.

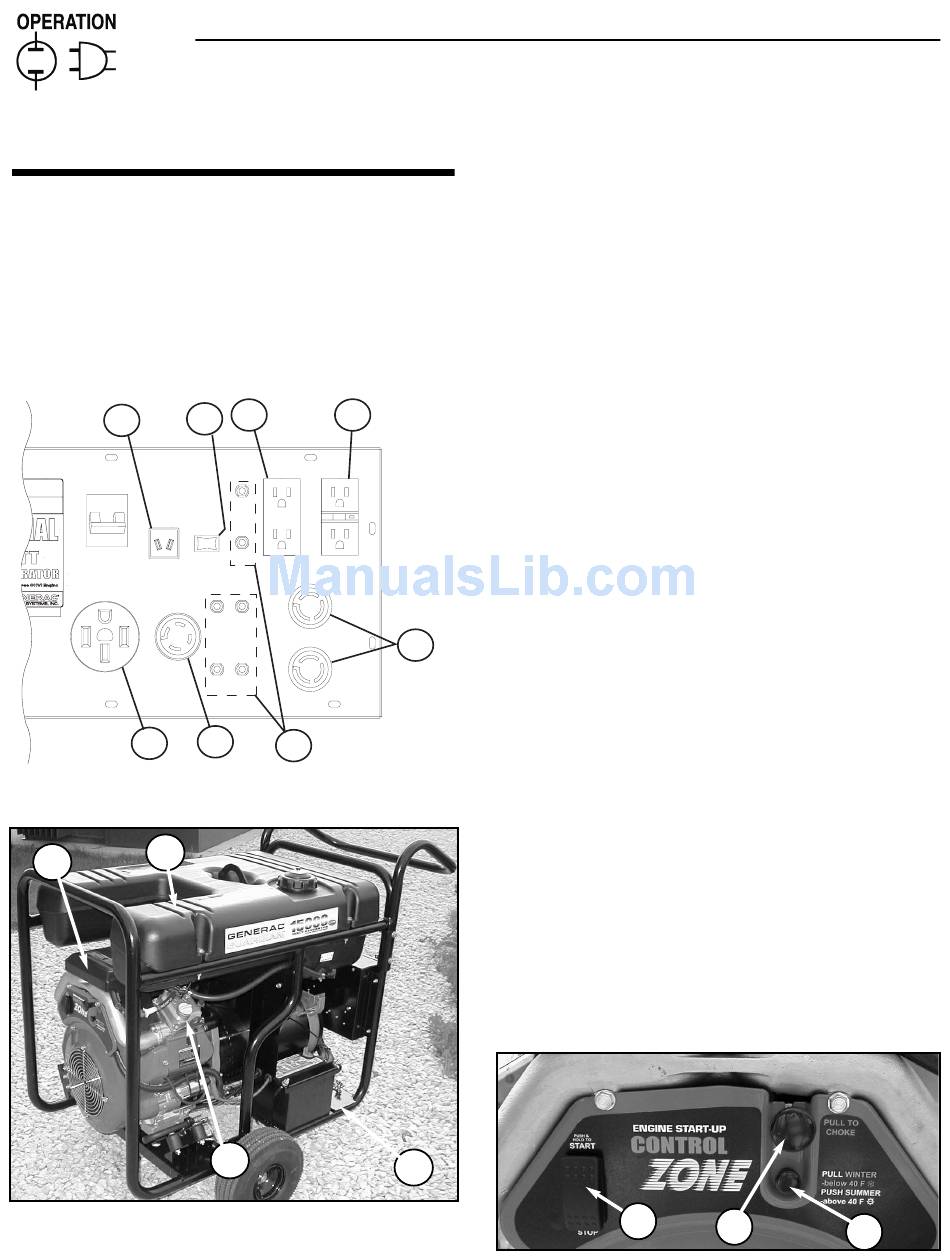

Figure 4 - Control Panel
1
QUARTZ
HOURS
HOUR METER
12Vdc
50A
10A
CIRCUIT BREAKERS - PUSH TO RESET
120V/240V
30A
120V/240V
50A
6
Figure 5 - Generator Controls
11
7
6
Section 2 – Operation
Commercial-Industrial-Residential Portable Generator System
2
3
13
1/10
20A
GFCI
TEST RESET
IDLE
TEST RESET
CONTROL
20A
ON OFF
120V
120V
20A 20A
120V
GFCI
30A
30A 30A
30A 30A
120V
30A
5
10
15
1) 12 Volt DC, 10 Amp Receptacle – This receptacle allows
the capability to recharge a 12 volt DC storage battery with
provided battery charge cables.
2) 120 Volt AC, 20 Amp, Duplex Receptacle – Supplies
electrical power for the operation of 120 Volt AC, 20 Amp,
single-phase, 60 Hz electrical lighting, appliance, tool and
motor loads.
3) 120 Volt AC, 20A Duplex GFCI Receptacle –
Supplies ground fault protected electrical power for operation of
120 volt AC 20 amp, single-phase, 60 Hz electric lighting,
appliances, tools and motor loads.
4) 120 Volt AC, 30 Amp Locking Receptacle – Supplies
electrical power for the operation of 120 Volt AC, 30 Amp, single-
phase, 60 Hz electrical lighting, appliance, tool and motor loads.
5) 120/240 Volt AC, 30 Amp Locking Receptacle –
Supplies electrical power for the operation of 120 and/or 240 Volt
AC, 30 Amp, single-phase, 60 Hz, electrical lighting, appliance,
tool and motor loads.
6) 120/240 Volt AC, 50 Amp Receptacle – Supplies
electrical power for the operation of 120/240 Volt AC, 50 Amp,
single-phase, 60 Hz, welder or motor loads.
7) Air Cleaner – Filters intake air as it is drawn into the engine.
8) Choke Knob – Used when starting a cold engine.
4
9) Winter / Summer Valve – See "Cold Weather Operation."
(Section 2, page 12.)
10) Circuit Breakers (AC) – Each receptacle is provided with a
push-to-reset circuit breaker to protect the generator against
electrical overload.
11) Fuel Tank – Tank holds 16 U.S. gallons of fuel.
12) Grounding Lug – Ground the generator to an approved earth
ground here. See page 9 for details.
13) Idle Control Switch – The idle control runs the engine at
normal (high) speeds when there is an electrical load present and
runs the engine at idle (low) speeds when a load is not present.
14) Start/Run/Stop Switch – Controls the operation of the
generator.
15) Oil Fill – Use this point to add oil to engine.
12
Figure 6 - Engine Control Panel
14
8
9
