Use this receptacle to operate 120 Volt AC, 60 Hz, single phase loads
requiring up to 3600 watts (3.6 kW) of power at 30 Amps. The outlet is
protected by a 30 Amp push-to-reset circuit breaker.
2.2.4 120/240V AC, 30 AMP RECEPTACLE
Use a NEMA L14-30 plug with this receptacle. Connect a suitable 4-
wire grounded cord set to the plug and to the desired load. The cord set
should be rated for 250 Volts AC at 30 Amps (or greater).

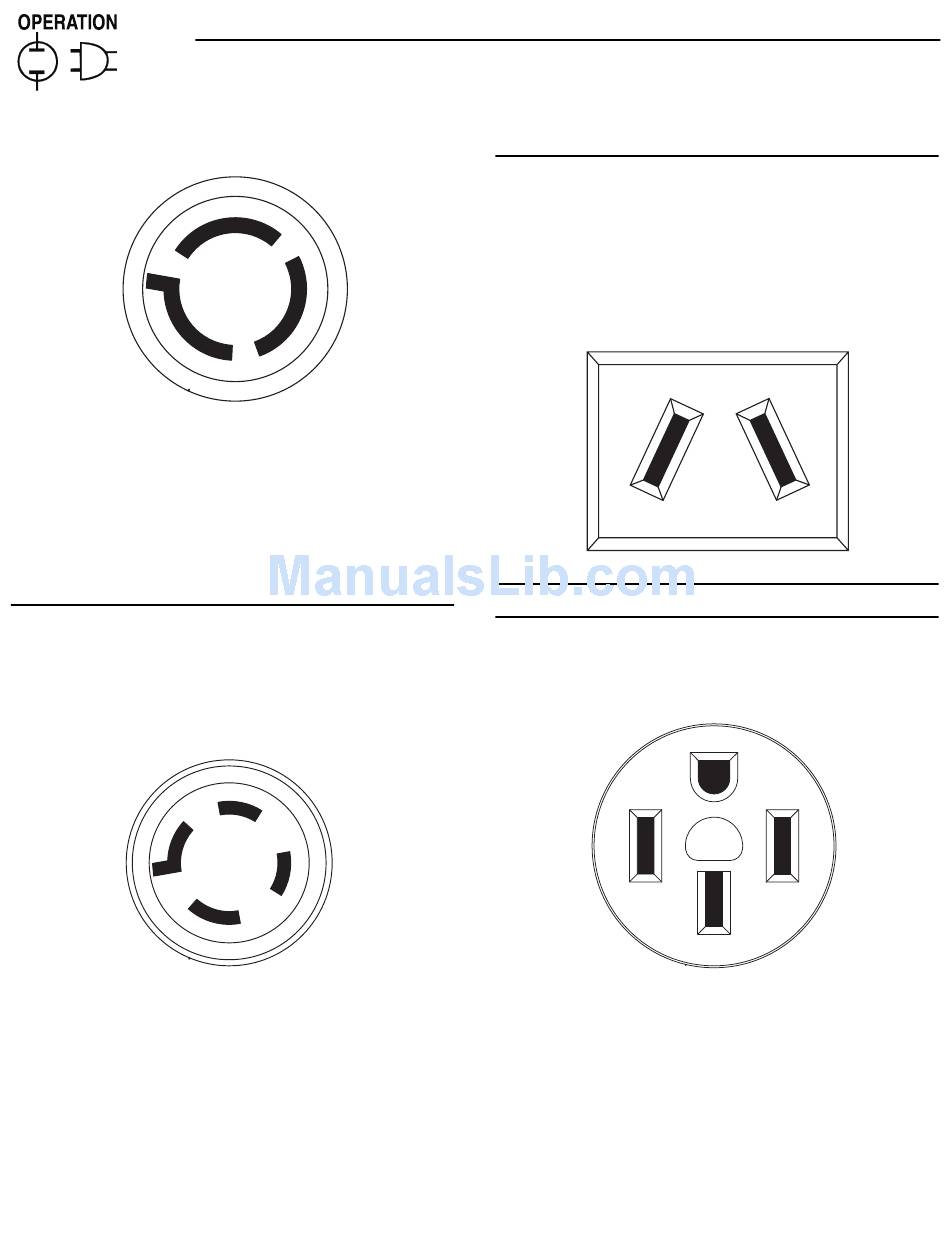

Figure 10 - 120/240 VAC, 30 Amp Receptacle
120V/240V
Use this receptacle to operate 120 Volt AC, 60 Hz, single phase loads
requiring up to 3600 watts (3.6 kW) of power at 30 Amps or 240 Volt AC,
60 Hz, single phase loads requiring up to 7200 watts (7.2 kW) of power
at 30 Amps. The outlet is protected by two 30 Amp push-to-reset circuit
breakers.
8
Section 2 – Operation
Commercial-Industrial-Residential Portable Generator System
120V
30A
30A

2.2.5 12 VOLT DC, 10 AMP RECEPTACLE

This receptacle allows you to recharge a 12 Volt automotive or utility
style storage battery with the battery charge cables provided. This
receptacle can not recharge 6 Volt batteries and can not be used to
crank an engine having a discharged battery. See the section "Charging
a Battery" (page 12) before attempting to recharge a battery.
Figure 11 - 12 Volt DC, 10 Amp Receptacle
2.2.6 120/240 VOLT AC, 50 AMP RECEPTACLE
Use a NEMA 14-50 plug with this receptacle. Connect a 4-wire cord set
rated for 250 Volts AC at 50 Amps to the plug.
Figure 12 - 120/240 VAC, 50 Amp Receptacle
120V/240V
Use this receptacle to operate 120/240 Volt AC, 60 Hz electrical loads
requiring up to 12,000 watts (12.0 kW) of power. This receptacle is
protected by a 50 Amp 2-pole circuit breaker.
50A
