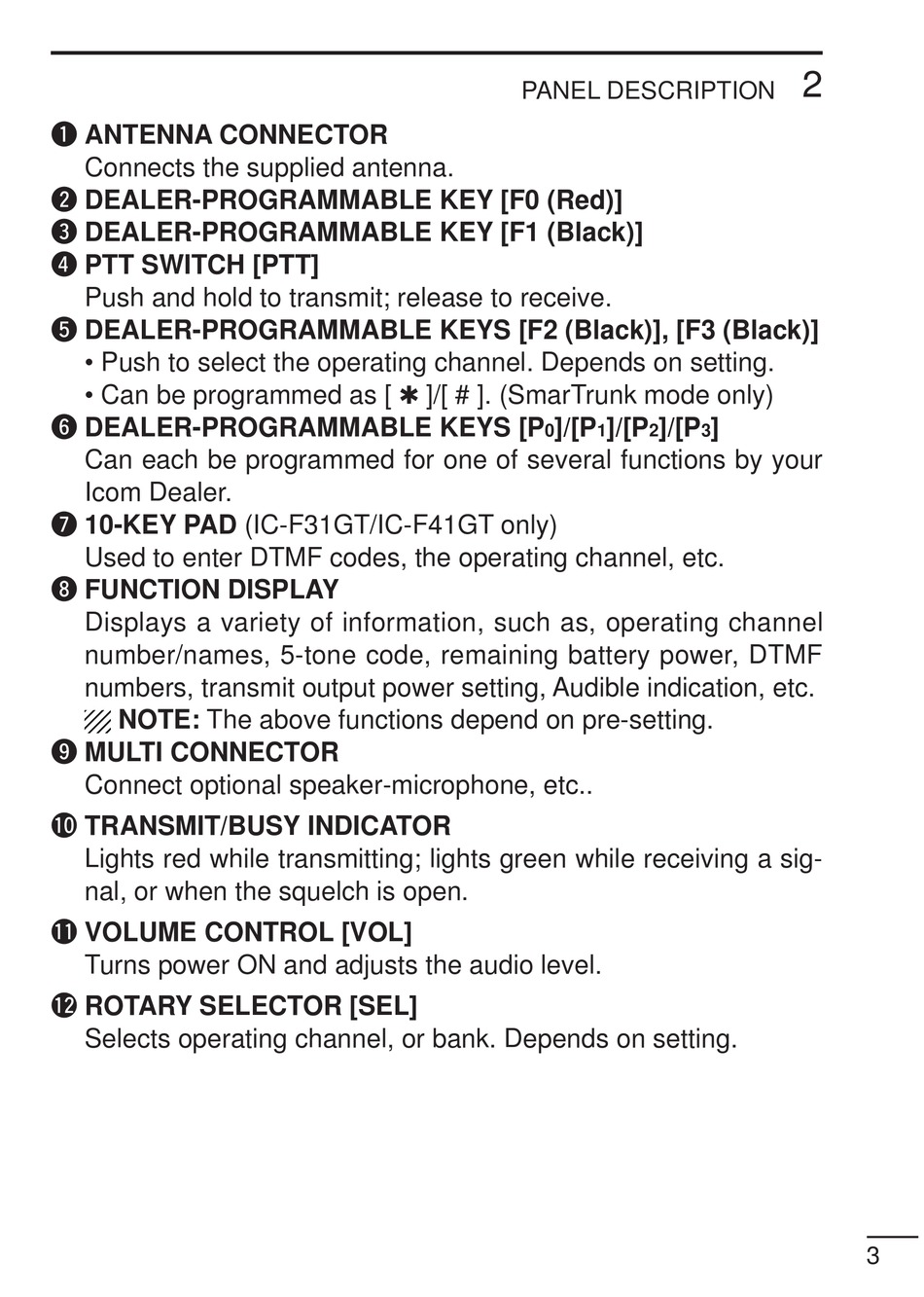

q ANTENNA CONNECTOR
Connects the supplied antenna.
w DEALER-PROGRAMMABLE KEY [F0 (Red)]
e DEALER-PROGRAMMABLE KEY [F1 (Black)]
r PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
t DEALER-PROGRAMMABLE KEYS [F2 (Black)], [F3 (Black)]
• Push to select the operating channel. Depends on setting.
• Can be programmed as [
y DEALER-PROGRAMMABLE KEYS [P
Can each be programmed for one of several functions by your
Icom Dealer.
u 10-KEY PAD (IC-F31GT/IC-F41GT only)
Used to enter DTMF codes, the operating channel, etc.
i FUNCTION DISPLAY
Displays a variety of information, such as, operating channel
number/names, 5-tone code, remaining battery power, DTMF
numbers, transmit output power setting, Audible indication, etc.
NOTE: The above functions depend on pre-setting.
o MULTI CONNECTOR
Connect optional speaker-microphone, etc..
!0 TRANSMIT/BUSY INDICATOR
Lights red while transmitting; lights green while receiving a sig-
nal, or when the squelch is open.
!1 VOLUME CONTROL [VOL]
Turns power ON and adjusts the audio level.
!2 ROTARY SELECTOR [SEL]
Selects operating channel, or bank. Depends on setting.
PANEL DESCRIPTION
]/[ # ]. (SmarTrunk mode only)
]/[P
0 1
]/[P ]/[P ]
2 3
2
3
