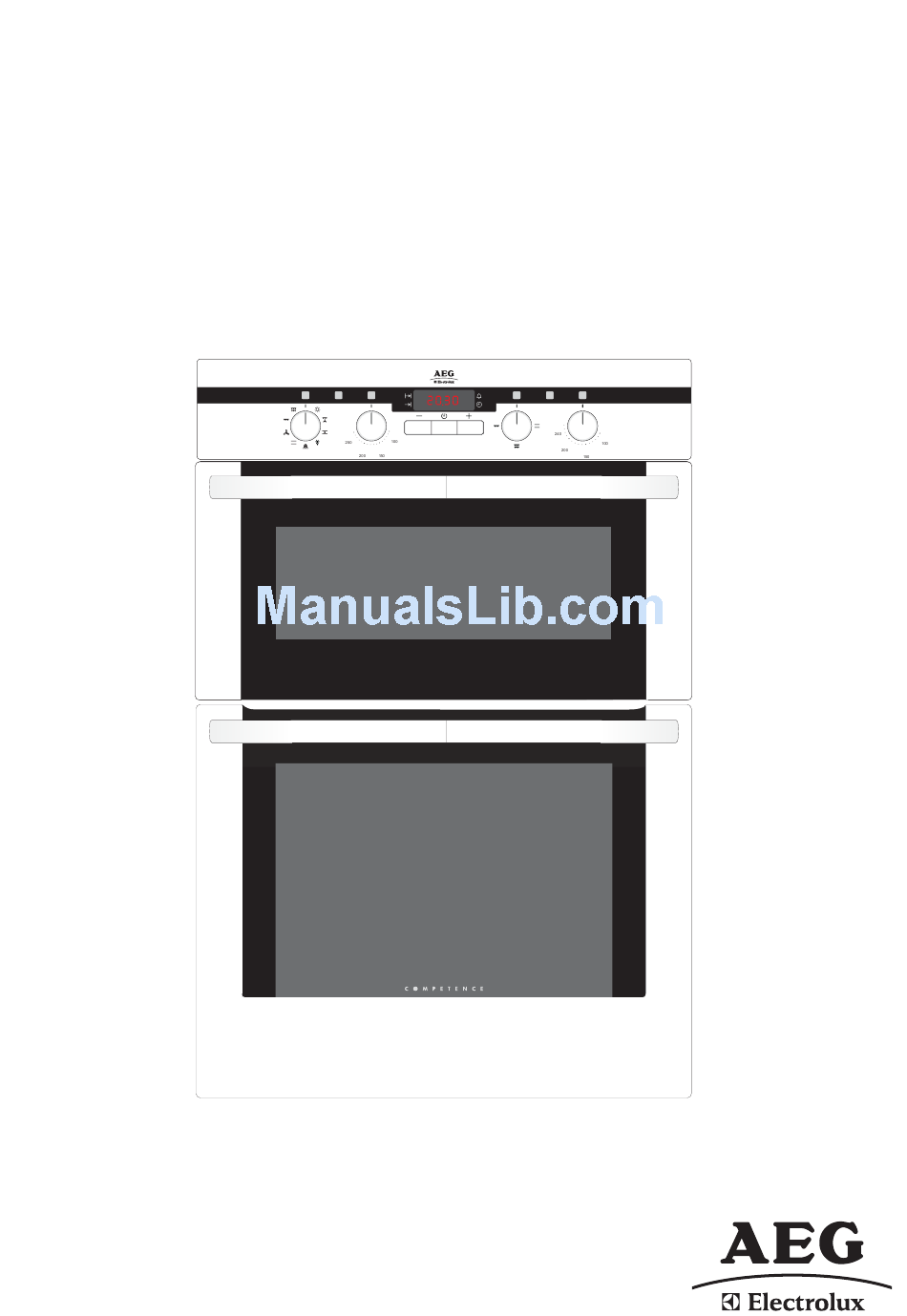

- Page 1 COMPETENCE D4101-5-ME Built-in Electric Multifunction Double Oven Installation and Operating Instructions PERFEKT IN FORM UND FUNKTION...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION These warnings are provided in the interests of your Do not leave the grill pan handle in position when grilling as it will become hot. safety. Ensure that you understand them all before installing or using the appliance. Your safety is of Always support the grill pan when it is in the withdrawn paramount importance. -
Page 3: Table Of Contents
CONTENTS Speedcook Using Speedcook Things To Note FOR THE USER Hints And Tips Important Safety Information Rotitherm Roasting Description of The Appliance Using Rotitherm Roasting Getting To Know Your Appliance Things To Note Grill And Oven Furniture Hints And Tips Telescopic Runners Before Using The Appliance Rotitherm Roasting Chart... -
Page 4: Description Of The Appliance

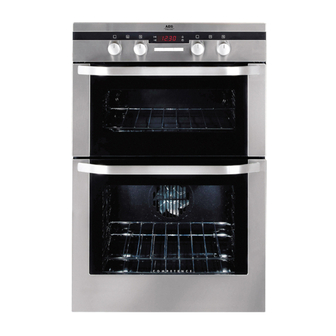

DESCRIPTION OF THE APPLIANCE BUILT-IN ELECTRIC MULTIFUNCTION DOUBLE OVEN Electronic Timer Control Panel Second Oven/Grill Main Oven Your built-in oven comprises of a conventional second oven and dual grill in the top compartment. The multifunction oven can be automatically controlled by the electronic timer. -
Page 5: Getting To Know Your Appliance
GETTING TO KNOW YOUR APPLIANCE THE CONTROL PANEL - Multifunction Main Oven Selector Oven Light Rotitherm Roasting Speedcook Fan Controlled Defrosting Pizza Conventional Cooking Ventitherm ® Fan Operated Cooking Single Economy Grill Full Width Dual Grill - Main Oven Selector Indicator Neon - Main Oven Temperature Control - Main Oven Temperature Indicator Neon - Electronic Timer... -
Page 6: Grill And Oven Furniture
GRILL AND OVEN FURNITURE TELESCOPIC RUNNERS Your appliance may be fitted with telescopic runners The following items of oven furniture have been in the grill and main oven. supplied with the appliance:- To fit the shelf into the telescopic runner, 1. -
Page 7: Before Using The Appliance
BEFORE USING THE APPLIANCE RATING PLATE POP IN POP OUT CONTROLS This is situated on the lower front frame of the These control knobs can remain flush with the control appliance and can be seen upon opening the door. panel when not in use, or pushed and released to Alternatively the rating plate may also be found on stand out from the panel for easy operation. -
Page 8: Electronic Timer
ELECTRONIC TIMER COOK TIME END TIME COUNTDOWN TIME DECREASE CONTROL SELECTOR CONTROL G INCREASE CONTROL NOTE: The time of day must be set before the main oven will operate manually. 1. HOW TO SET THE TIME OF DAY The oven has a 24 hour clock. When the electricity supply is first switched ON, the display will show 12.00 and the 'Time' ( ) indicator... - Page 9 TO CANCEL THE COUNTDOWN If you change your mind and want to cancel the 'Countdown', press the Selector Control button until the 'Countdown' ( ) indicator neon flashes and then the decrease control ( - ) until 0.00 shows in the display as Fig.
-
Page 10: Things To Note
B) TO SET THE TIMER TO SWITCH OFF ONLY Ensure the electricity supply is switched ON and that the correct time of day is displayed, e.g. 10.00am as Fig. 9. ii) Place food in the oven. iii) To set the length of cooking time, press the Selector Control button until the 'Cook Time' ) indicator neon is illuminated. -
Page 11: Full Width Dual Grill
FULL WIDTH DUAL GRILL CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. YOUNG CHILDREN SHOULD BE KEPT AWAY. The grill is a dual circuit grill which means that the full area of the grill can be used or for economy purposes, the centre section only can be used when cooking smaller quantities of food. -
Page 12: The Grill Pan And Handles
THE GRILL PAN AND HANDLES The grill pan is supplied with removable handles. To attach the handles, place the wirework under the cut out in the pan so that the metal plate hooks over the top of the grill pan. Ensure the handles are positively located. -
Page 13: Grilling Chart
• Preheat the grill on full setting for a few minutes to seal meat or for toasting. Adjust the heat setting and the shelf position as necessary during cooking. • The food should be turned over during cooking as required GRILLING CHART FOOD POSITION... -
Page 14: Second Oven
SECOND OVEN The second oven is the smaller of the two ovens. It is heated by elements in the top and bottom of the oven. It is designed for cooking smaller quantities of food. It gives especially good results if used to cook fruit cakes, sweet and savoury flans or quiche. -
Page 15: Hints And Tips
HINTS AND TIPS • Arrange the shelves in the required positions before switching the oven ON. Shelf positions are counted from the bottom upwards. • There should always be at least 2.5cm (1”) between the top of the food and the element. This gives best cooking results and allows room for rise in yeast mixtures, Yorkshire puddings etc. -
Page 16: Second Oven Cooking Chart
SECOND OVEN COOKING CHART SECOND OVEN FOOD POSITION COOKING APPROX TEMP°C COOK TIME (m) Biscuits 170 - 190 10 - 20 Bread 200 - 220 25 - 30 Bread rolls/buns 200 - 220 15 - 20 Cakes: Small & Queen 180 - 190 18 - 25 Sponges... -
Page 17: Ventitherm ® Fan Operated Cooking
VENTITHERM ® FAN OPERATED COOKING The fan oven is particularly suitable for cooking larger quantities of food. The advantages of fan oven cooking are: PREHEATING The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. Without preheating however, you may need to add an extra 5 –... -
Page 18: Using The Telescopic Runners (Where Fitted)
USING THE TELESCOPIC RUNNERS (where fitted) 1. Ensure the telescopic runners are pushed back FORM into the oven cavity before fitting the shelf. 2. Holding the front edge of the shelf with both RETAINING hands, place the rear shelf forms over the HOOK telescopic runners. -
Page 19: Conventional Cooking
CONVENTIONAL COOKING This form of cooking gives you the opportunity to cook without the fan in operation. It is particularly suitable for dishes which require extra base browning such as pizzas, quiches and flans. Gratins, lasagnes and hotpots which require extra top browning also cook well in the conventional oven. For best results cook on one level. -
Page 20: Hints And Tips
HINTS AND TIPS • Single level cooking gives best results. If you require more than one level of cooking use the fan oven function. • The middle shelf allows for the best heat distribution. To increase base browning simply lower the shelf position. To increase top browning, raise the shelf position. -
Page 21: Main Oven Cooking Chart
MAIN OVEN COOKING CHART The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperatures by 10°C to suit individual preferences and requirements. VENTITHERM ® FAN OPERATED CONVENTIONAL COOKING OVEN Food Position Cooking Position Cooking... -
Page 22: Roasting Chart
ROASTING CHART INTERNAL TEMPERATURES – Rare : 50-60°C; Medium : 60-70°C; Well done : 70-80°C MEAT COOKING TIME TEMPERATURE 20-35 minutes per ½kg (1lb) Beef/ Beef boned 160-180°C and 20-35 minutes over Mutton/Lamb 160-180°C 25-35 minutes per ½kg (1lb) and 25-35 minutes over Pork/Veal/Ham 160-180°C 30-40 minutes per ½kg (1lb) -
Page 23: Main Oven Full Width Dual Grill
MAIN OVEN FULL WIDTH DUAL GRILL CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE. YOUNG CHILDREN SHOULD BE KEPT AWAY. The grill is a dual circuit grill which means that the full area of the grill can be used or for economy purposes, the centre section only can be used when cooking smaller quantities of food. -
Page 24: Hints And Tips
HINTS AND TIPS • Most foods should be placed on the grid in the grill pan to allow maximum circulation of air to lift the food out of the fats and juices. • Adjust the grid and grill pan runner position to allow for different thicknesses of food. -
Page 25: Pizza
PIZZA This setting can be used for foods such as pizza where base browning and crispness are required. The lower elements operate in conjunction with the oven fan. USING PIZZA • Pop out and turn the main oven multifunction selector to Pizza. •... -
Page 26: Speedcook
SPEEDCOOK Speedcook is ideal for quick preheating of the oven before selecting an alternative cooking function. It can also be used for cooking chilled and frozen convenience foods without the need for preheating. COOKING TIMES Cooking times for convenience foods should be the same or slightly quicker than those stated on the packaging. This may vary depending on the dish and the quantity of food being cooked. -
Page 27: Rotitherm Roasting
ROTITHERM ROASTING Rotitherm Roasting offers an alternative method of cooking food items normally associated with conventional grilling. Rotitherm Roasting helps to minimise cooking smells in the kitchen and allows you to grill in the main oven with the oven door closed. With the exception of toast and rare steaks you can Rotitherm Roast all the foods you would normally cook under a conventional grill. -
Page 28: Hints And Tips
HINTS AND TIPS • Prepare foods in the same way as for conventional grilling. Brush lean meats and fish lightly with a little oil or butter to keep them moist during cooking. • Most food should be placed on the grill pan grid in the 'high' position in the grill pan to allow maximum circulation of air around the food. -
Page 29: Fan Controlled Defrosting
FAN CONTROLLED DEFROSTING This main oven function enables you to defrost most foods without heat faster than some conventional methods as the oven fan circulates air around the food. It is particularly suitable for delicate frozen foods which are to be served cold e.g. -
Page 30: Care And Cleaning
CARE AND CLEANING Before cleaning always allow the appliance to cool down before switching off at the electricity supply. CLEANING MATERIALS Before using any cleaning materials on your appliance, check that they are suitable and that their use is recommended by the manufacturer. Cleaners that contain bleach should NOT be used as they may dull the surface finishes. -
Page 31: Cleaning Inside The Ovens
CLEANING INSIDE THE OVENS The vitreous enamel coating in the ovens can be cleaned using normal oven cleaners or aerosol oven cleaners with care. Ensure that the manufacturers instructions are followed and that all parts are well rinsed afterwards. Aerosol cleaners must not come into contact with elements, the door seal, or any painted finishes as this may cause damage. -
Page 32: Cleaning The Grill And Oven Furniture
TO REMOVE THE INNER GLASS 1. Fully open the oven door. 2. Firmly grasp the rear edge of the inner glass panel with both hands. 3. Push the glass panel towards you until it clears the hinge location points at the rear. 4. -
Page 33: Replacing An Oven Light Bulb
REPLACING AN OVEN LIGHT BULB (MAIN OVEN) The type of bulb required is a 300°C 25 watt small Edison Screw. Disconnect appliance from electricity supply before replacing the bulb. 1. Make sure the appliance is cool before replacing a bulb. 2. -
Page 34: Something Not Working
SOMETHING NOT WORKING Please carry out the following checks on your appliance before calling a Service Engineer. It may be that the problem is a simple one which you can solve yourself without the expense of a service call. In-guarantee customers should make sure that the checks have been made as the engineer will make a charge if the fault is not a mechanical or electrical breakdown. -
Page 35: Zanussi Warranty Australia
AEG-ELECTROLUX WARRANTY AUSTRALIA Nothing in this warranty, limits any rights you may have under the trade practices act or any other Commonwealth or State legislation. Such rights cannot be changed by the conditions in this warranty. Subject to the conditions below, this appliance is warranted by Andi-Co Australia Pty. Ltd. -
Page 36: Zanussi Warranty New Zealand
AEG-ELECTROLUX APPLIANCE WARRANTY – NEW ZEALAND This appliance is warranted by Electrolux Home Products (NZ) Ltd (“the Company”) from the date of purchase. The following terms and conditions apply: The Company or its Authorised Service Centre will pay the cost of repairing or replacing all parts of the appliance which the Company or its Authorised Service Centre find defective for a period of 24 months following the date of purchase (the "Warranty Period"). -
Page 37: Technical Details
TECHNICAL DETAILS Voltage: 230-240 Volts AC 50Hz Wattage: 5.6-6.1kW Height: 897 mm Width: 592 mm Depth: 563 mm (excluding handles and knobs) Weight: 59kg This appliance complies with: European Council Directive 73/23/EEC. EMC Directive 89/336/EEC. CE Marking Directive 93/68/EEC. Energy Label Directive 2002/40/EC. -
Page 38: Installation Instructions
INSTALLATION INSTRUCTIONS WARNINGS • This appliance must be installed by a qualified electrician/competent person. Safety may be impaired if installation is not carried accordance with these instructions. • This appliance must be earthed. • Do not remove the screws from the earth tab extending from the oven mains terminal block (Fig. -
Page 39: Choice Of Electrical Connection
CHOICE OF ELECTRICAL CONNECTION • There are three possible ways to connect your appliance. In each case the appliance should be operated using at least 6mm twin core and earth PVC insulated. Please choose from the most appropriate after reading the different methods:- a) By connecting the appliance to a cooker point (having a double pole isolating switch with at least 3mm contact separation in all poles and... -
Page 40: Recommended Cabinet Dimensions
RECOMMENDED CABINET DIMENSIONS (IN MILLIMETRES) Cross section through cabinet showing oven positioned Fig. 3 Built In Installation... -
Page 41: How To Finish Unpacking
HOW TO FINISH UNPACKING • Place packed appliance next to the space in which it will be installed. • Remove the appliance packing except for bottom tray which should be left in position until the appliance is ready to be fitted into its cabinet. NOTE: It is imperative that the appliance is left in the base to protect both the appliance and the floor. -
Page 42: Connecting To The Mains Terminal
CONNECTING TO THE MAINS TERMINAL Warning: This appliance must be earthed. • We recommend you use a new length of 6mm twin core and earthed cable to ensure your safety. • Make connection as shown in Fig. 7 by proceeding as follows:- •... -
Page 43: Fitting Into The Cabinet
FITTING INTO THE CABINET IMPORTANT: Ensure that the oven is switched off at the wall before any further work is carried out. • Using a tape measure establish the internal width of the cabinet. Refer to page 39 if greater than 565mm. - Page 44 This instruction booklet is accurate at the date of printing, but will be superseded if specifications or appearance are changed. To buy accessories, consumables and spare parts at our online shop please visit: http://www.aeg-electrolux.co.uk Part Number: 311808000...
