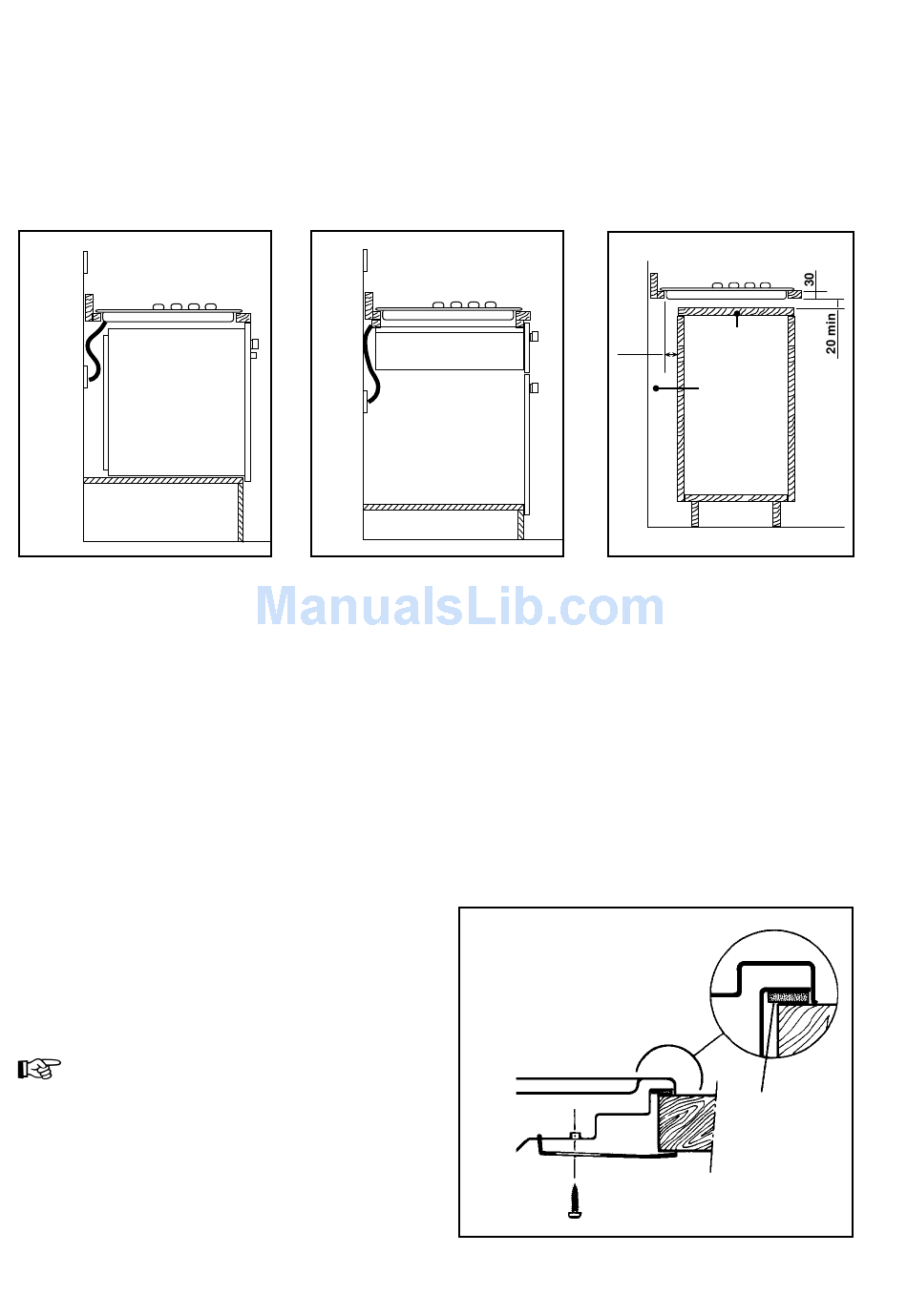

Building In

Building over a cupboard or drawer
If the hob is to be installed above a cupboard or
drawer it will be necessary to fit a heat resistant board
below the base of the hob on the underside of the
work surface.
1
ON/OFF SWITCH
FLEX
OUTLET
FO 0763
Building over a kitchen unit with door
Proper arrangements must be taken in designing the
furniture unit, in order to avoid any contact with the
bottom of the hob which can be heated when it is
operated. The recommended solution is shown in
diagram 3.
The panel fitted under the hob ("a") should be easily
removable to allow easy access if technical assistance
is needed. The space behind the kitchen unit ("b") can
be used for connections.
Fitting the hob to the worktop
Before fitting the hob into the cut out, an adhesive
sealing gasket supplied with the hob must be fitted to
the edge of the cut out. It is essential that no gaps are
left in this seal in order to prevent spillage near the
hob seeping into the cabinet below.
1) Place the sealing gasket all around the edge
of the cut out.
2) Place the hob into the cut out and secure it by
means of the relevant fixing clamps and
screws, as shown in the diagram.
It is also recommended to carry out the electrical
connection to the hob as shown in diagrams 1 and 2.
2
ON/OFF SWITCH
FLEX
OUTLET
FO 0764
FO 0402
3
a
60
b
FO 1013
Dimensions are given in mm.
a
a) Sealing gasket
15
