LENCO DVP-738X2 User Manual

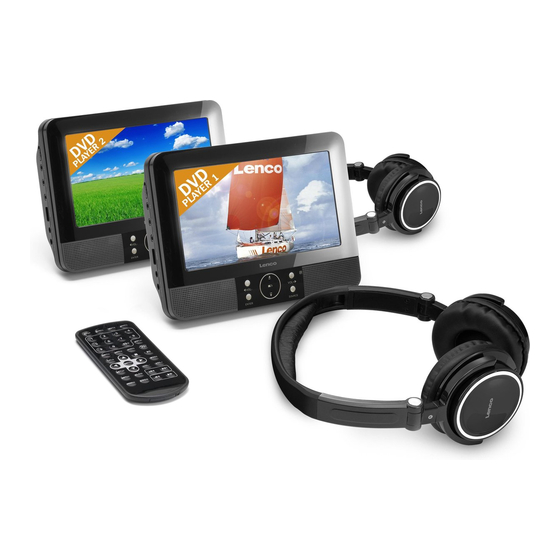

17,5 cm (7”) portable dvd player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
17,5 cm (7") portable dvd player
USER'S MANUAL
DVP-738X2
Before connecting, operating or adjusting this product,
For information and support,WWW.lenco.eu
please read this user's manual carefully and completely.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVP-738X2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LENCO DVP-738X2

Summary of Contents for LENCO DVP-738X2

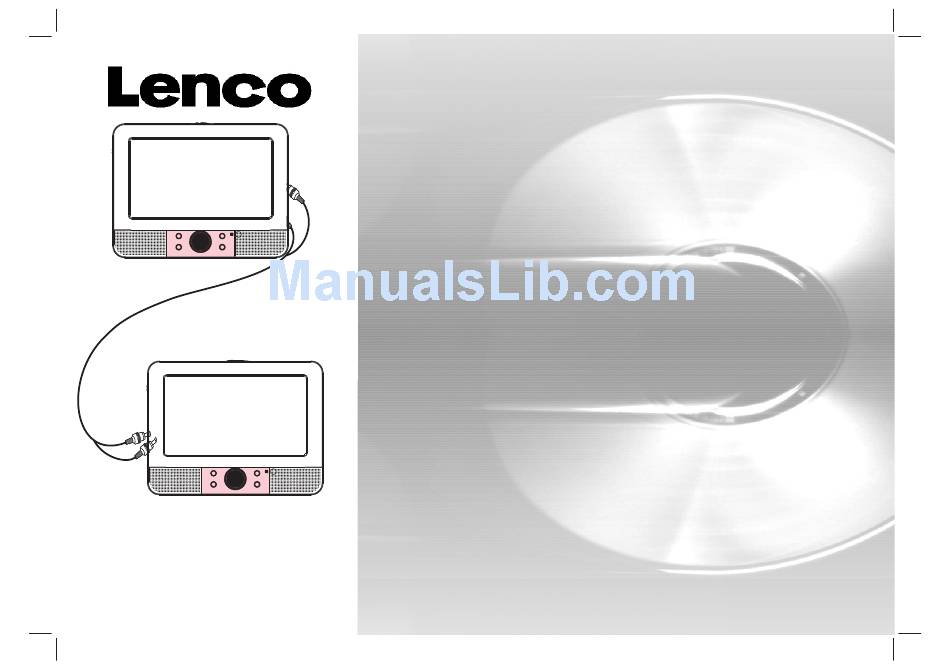

  • Page 1 17,5 cm (7”) portable dvd player USER'S MANUAL DVP-738X2 Before connecting, operating or adjusting this product, For information and support,WWW.lenco.eu please read this user's manual carefully and completely.

  • Page 2: Table Of Contents

    Table of Content Contents SETUP Menu Setting Table of Contents 8-10 General Page Important Safety Instructions Audio Setup Page Safety Precautions Video Setup Page Preference Page 9-10 Basic Operation Password Setup Page Identification of Controls Battery Parameters Main Unit Parameters and specifications Remote control unit Dear Customer: Thank you for purchasing this Portable DVD player with swivel screen &...

  • Page 3: Important Safety Instructions

    Important Safety Instructions Warning: To reduce the risk of electric shock, do not remove CAUTION: Danger of explosion if battery is incorrectly the cover or back. There are no user-serviceable parts replaced. Replace only with the same or equivalent type. inside.

  • Page 4: Safety Precautions

    Safety Precautions WARNING RISK OF ELECTRIC SHOCK Notes on Copyrights: DO NOT OPEN Warning: This digital video disc player employs a laser system. It is forbidden by law to copy, broadcast, show,broadcast via Use of controls,adjustments, or the performance of procedures cable, play in public, or rent copyrighted material without other than those specified herein may result in hazardous permission.

  • Page 5: Basic Operation

    Mounting in the Vehicle Use the supplied car mounting straps to install the main unit and monitor on the back of the vehicle's headrests.Tightly wrap the mounting strap around the headrest.

  • Page 6: Identification Of Controls

    Identification of Controls Main Unit 1.SD/MS/MMC MASTER TFT SCREEN 2. POWER ON/OFF 3. HEADPHONE OUT JACKS 4. VIDEO/AUDIO OUT 5. DIGITAL AUDIO OUT (COAXIAL) 6.USB 7. DC IN 9-12V 8. ENTER 9. UP/DOWN/LEFT/RIGHT 10. SOURCE Insert the battery 1.Open the battery door. 2.Insert battery.

  • Page 7: Remote Control Unit

    Identification of Controls Remote control unit 5.10+ BUTTON In order to select a track 10 or greater, first press 10+, For example; select track 12, first press 10+, and then press number 2 button. STEP MUTE SOURCE 6. MENU/PBC Return to DVD root menu(DVD). PBC on/off switch (VCD) .
  • Page 8 Identification of Controls Remote control unit BUTTON 25.SLOW Press BUTTON allow skipping back at 5-level speed(X2->X4-> Press Slow button repeatedly to enter slow playback, and cycle X8->X16->X32 -> PLAY), press PLAY button return to normal playback. between different speeds. The speeds are 1/2,1/4,1/8,1/16,and normal.

  • Page 9: Setup Menu Setting

    SETUP Menu Setting General Setup Page Press SETUP button to get the setup menu. Use direction buttons Angle Mark Displays current angle setting information on the right hand corner to select the preferred item. After finishing settings, press of the TFT screen if available on the disc. SETUP again to normal display.

  • Page 10: Video Setup Page

    SETUP Menu Setting Video Setup Page Audio Setup Page Video Setup Page Downmix This options allows you to set the stereo analog output of your DVD Player. - - VIDEO SETUP PAGE - - LT/RT :Select this option if your DVD Player is connected to a Dolby Pro Logic decoder.

  • Page 11: Password Setup Page

    SETUP Menu Setting Preference Page Password Setup Page Password: select the menu password change page. PAL - Select this if the connected TV is PAL system.It change will video signal of a NTSC disc and output in PAL format. NTSC-Select this if the connected TV is NTSC system.It will change the video signal of a PAL disc and output in NTSC format.

  • Page 12: Battery Parameters

    Parameters and specifications Battery Parameters Electronical parameters Battery Parameters Battery Specifications： Item Standard requirement Output：7.4V Power requirements : AC 100-240 V , 50/60 Hz Power consumption : <15W Storage and work circumstances： Operating humidity : 5 % to 90 % 1.
