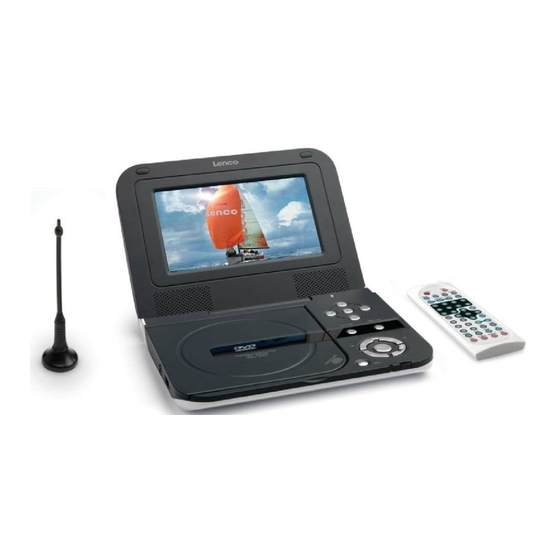

LENCO DVP-747 Owner's Manual

Portable digital tv/dvd player
Hide thumbs Also See for DVP-747:
Table of Contents

Advertisement

Quick Links

Download this manual
Please read this manual before operating
OWNER`S MANUAL
OWNER`S MANUAL
OWNER`S MANUAL
For information and support, www.lenco.eu
DVP-747

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVP-747 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LENCO DVP-747

Summary of Contents for LENCO DVP-747

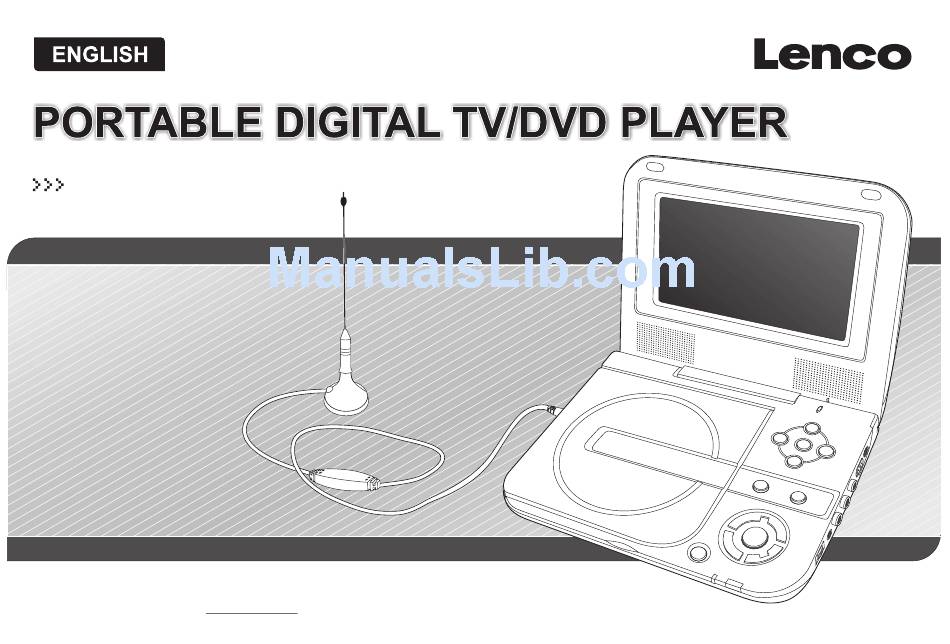

  • Page 1 Please read this manual before operating OWNER`S MANUAL OWNER`S MANUAL OWNER`S MANUAL For information and support, www.lenco.eu DVP-747...

  • Page 3: Table Of Contents

    Table of Contents Table of Contents..................................1 Safety Information..................................2 Remote Control..................................3-4 Description....................................5 Using the Remote Control.................................6 Connecting Earphones (Optional Accessory)..........................7 Connecting DIGITAL-TV Antenna..............................8 Connecting to a TV...................................9 Using USB Port..................................10 Using the AC Adaptor................................11 Charging the battery pack ...............................12 Watching DIGITAL TV.................................13-14 Listening to Digital Radio................................15 TV Program : Favorite, Listing Order, Deleting..........................16 Music Program: Favorite,listing Order, Deleting.

  • Page 4: Safety Information

    Safety Information Please read all of the safety and operating instructions before operating this Player, follow all warnings placed on the Player and in the user's manual. These safety and operating instructions should be retained for future reference. Safety Information Do not expose the system to excessive moisture, rain, sand, or heat sources.

  • Page 5: Remote Control

    Remote Control DVD /USB/Card Reader Name DVB-T Mode Mode RADIO Button No function. Switche to radio mode. MENU/PBC Button Brings up the disc menu. No function. Use to access various camera angles ANGLE Button No function. on a DVD. Display title menu if it exists in the disc. No function.

  • Page 6: Remote Control

    Remote Control Name DVD /USB/Card Reader Mode DVB-T Mode Exit the setup. EXIT Button No function. TELETEXT Button No function. Accesses teletext function. Selects DVD , DVB-T , USB mode Selects DVD , DVB-T , USB mode SOURCE Button Displays the current disc playback information. Displays the current program information.

  • Page 7: Description

    Description of the DVD Player ENTER ENTER SOURCE SETUP/MENU CLEAR OP EN 1. USB slot 10. Earphone jack 19. PLAYBACK BUTTONS PLAY/PAUSE 2. TV Antenna Socket 11. EARPHONE / SPEAKER VOLUME STOP/CLEAR 3. LED light 12. LCD SKIP-FORWARD 4. Remote control sensor 13.

  • Page 8: Using The Remote Control

    Using the Remote Control Installing the battery Using the remote control 1. Open the battery compartment cover using a coin. Point the remote control directly at the remote sensor on the front of the DVD Player. 2. Insert a 3V lithium battery into the battery compartment with the polarity ( + ) facing up as marked.

  • Page 9: Connecting Earphones (Optional Accessory)

    Connecting Earphones (Optional Accessory) You can attach an earphone with a stereo mini-jack plug to the phone jack ( ) for private listening. The volume can be adjusted using VOL + and VOL - on the remote control or using the VOLUME control dial on the Player . Note: When the earphone is connected to the Phone Jack ( ), the speaker will be disconnected.

  • Page 10: Connecting Digital-Tv Antenna

    Connecting DIGITAL-TV Antenna To receive digital TV and radio, you need to connect an antenna to the player. Follow these steps: 1. Plug the antenna cable into the antenna socket on the Player. 2. Place the antenna on any surface. 3.

  • Page 11: Connecting To A Tv

    Connecting to a TV You can enjoy DVD quality video on a TV screen by connecting the output of the Player to your TV. 1. Turn off the DVD player and TV. 2. Connect the audio and video cables as illustrated. 3.

  • Page 12: Using Usb Port

    Using USB Port The Player accepts most USB devices such as MP3, DSC, USB- drive, Digital Camcorder etc. The USB in this Player supports version 1.1/2.0. USB slot Connecting a USB device 1. Plug in the USB device to the USB port on the Player. 2.

  • Page 13: Using The Ac Adaptor

    Using the AC Adaptor This portable DVD player can be powered by AC through the supplied switching power AC adaptor. It can also use the supplied battery pack. When the AC adaptor is connected to the unit and powered, the unit will be automatically disconnected electrically from the battery pack and powered by the AC power.

  • Page 14: Charging The Battery Pack

    Charging the battery pack Charging the battery pack This PLAYER has a built-in rechargeable battery, follow these steps to recharge. 1. Connect the A.C adaptor as illustrated. 2. Slide POWER to OFF. ( The Player must be turned off to charge the battery). 3.

  • Page 15: Watching Digital Tv

    Watching DIGITAL TV 2. Select Country and press to confirm. Preparation for TV Operation 3. Use to select and press to change country . 1. Make sure the unit has the power either from the battery or 4. The language and time zone will change automatically the AC adaptor.

  • Page 16: Watching Digital Tv

    Watching DIGITAL TV Changing TV Channel Displaying Current Channel Information You can change TV channel the following three ways: Press DISPLAY to display the information of current channel. 1. Press / CH+ or /CH - . Press DISPLAY again or EXIT to exit. 2.

  • Page 17: Listening To Digital Radio

    Listening to Digital Radio You can listen to high quality digital radio program with this Player. 1. Press RADIO to change to Radio. 2. Use / CH+ or /CH- to change satiation. ~ 15 ~...

  • Page 18: Tv Program : Favorite, Listing Order, Deleting

    TV Program : Favorite, Listing Order, Deleting 1. Press SOURCE on the remote control and select DVB. Changing Program Order 2. Press SETUP to access Main menu. 3. Select DVB Menu and press to confirm . You can change the order of the program list, this is the order it 4.

  • Page 19: Music Program: Favorite,Listing Order, Deleting. Tv/Music Program List Sorting

    Music Program: Favorite,listing Order, Deleting. TV/Music Program List Sorting 1. Press SOURCE on the remote control and select DVB. TV/Music Program List Sorting 2. Press SETUP to access Main menu. 3. Select DVB Menu and press to confirm . You can list the order of TV and Music programs according to 4.

  • Page 20: Scanning And Setting Tv Channel

    Scanning and Setting TV Channel 4. Select OK to start the auto search, the message appears: The Player can automatically search available TV channels and you can also do manual search. However when the channel is locked (see SettingParental Control, Turning On/Off Program Channel Lock) any change in TV channel will require the input of password.

  • Page 21: Setting Parental Control, Turning On/Off Program Channel Lock

    Setting Parental Control, Turning On/Off Program Channel Lock You can put a lock on any program channel which will require a password (PIN) to watch. Setting Parental Control 1. Press SOURCE on the remote control and select DVB. 2. Use direction keys ( ) to select Parental Control then Parental Setting, and press to confirm.

  • Page 22: Setting Country, Language, Gmt , Time Zone, Program Scheduling

    Setting Country, Language, GMT , Time Zone, Program Scheduling 1.Press SOURCE and select DVB. 2. Press SETUP on the remote control to access Main Menu. Select DVB Menu and press to confirm . 3. Use the direction keys ( ) to select System Setup and its sub-menu.
  • Page 23 Setting Country, Language, GMT , Time Zone, Program Scheduling Note: For this schedule play to work, you need to set the player: Programming TV program schedule (A)In TV mode. You can program to watch a list of TV programs which will (B)Power turned on.

  • Page 24: Playing A Disc

    Playing a Disc 2. To resume normal playback, press Preparation for Playback You can only perform step play in forward playback. 1. Make sure the Player has the power either from the battery Resume or the AC adaptor. 2. Load a disc, following these steps: There are two ways to resume your playback when interrupted.
  • Page 25 Playing a Disc MARK, and using to select one of the bookmarks, then Slow Motion pressing to start playing the bookmarked scene. The Playback continues until the end of the disc. Repeat the above 1. During playback, repeatedly press SLOW to play at 1/2, 1/4, 1/8, 1/16, 1/32 speeds.
  • Page 26 Playing a Disc Mute TITLE Press MUTE to silence the audio, press MUTE again to restore it. Press TITLE, it takes you to the very beginning of the title and play, or to the MENU if it has a title menu. Displaying disc's MENU/PBC DISPLAY During DVD playback, press MENU/PBC to return to the disc's...

  • Page 27: Playing Mp3 And Regular Audio Cd

    Playing MP3 and Regular Audio CD Valid MP3 CD Your MP3 files should be ISO 9660 or JOLIET format. Play In most cases, when an MP3 or audio disc is placed into the player, the first song file of the first folder plays. In other cases, the file manager appears.

  • Page 28: Playing Picture Cd

    Playing Picture CD Valid Picture Rotate The picture can be rotated and flipped. The player can play both a Kodak Picture CD that you order from photo processing store, and a home-made CD by burning 1. During playback, use the direction keys ( ) to JPEG files onto a CD-R or CD-RW disc.

  • Page 29: Displaying And Sorting Files

    Displaying and Sorting Files Sorting files Displaying files You can list the file in the order according to its type, name or When a disc or USB device contains multiple file types, you date. can select and display only certain file types. 1.

  • Page 30: Playing Games : Tetris, Rush Hour

    Playing Games : Tetris, Rush Hour 1. Press SETUP on the remote control to access Main Menu. 2. Use to select the Game, press to confirm. 3. Use and to move to the Item you want , press to confirm. 4.

  • Page 31: Changing Settings Of "Dvd Setup

    Changing Settings of “DVD Setup” You can make changes on language ( Menu, substitle etc), audio output etc when playing DVD, follow these steps to make changes: 1. Press SOURCE on the remote and select DVD-ROM Drive, press to confirm. 2.
  • Page 32 Changing Settings of “DVD Setup” DVD Setup - Audio Setup Downmix Downmix is the process of mixing the original 5.1 channels audio into two channels. You can make these two selections (a) Lt/Rt : if you listen to Dolby Surround Pro-Logic (b) Lo/To: if you listen to earphone or stereo speaker.

  • Page 33: Changing "System Setting

    Changing “System Setting” The System Settings are common to DVB-T and DVD modes 1. Press SETUP on the remote control to access Main Menu. 2. Select System Setting and press to confirm . 3. Use to select the Language Setup, Display Setup, Preference and Exit.
  • Page 34 Changing “System Setting” System Setting Menu - Display Setup TV Standard Set TV system (NTSC, PAL, AUTO ) that you will connect the Player to Display Type Set screen display aspect ratio(4:3 PS, 4:3 LB, 16:9) Set TFT screen aspect ratio(4:3, 16:9) Brightness Set screen's brightness Contrast...

  • Page 35: Troubleshooting

    Troubleshooting If your DVD player dose not seem to be functioning properly, check the items below before you contact a service center. Symptom Check Power does not turn on Make sure the AC Power cord is securely plugged into an AC outlet. or suddenly turns off Turn the power off and then back on.

  • Page 36: Troubleshooting

    Troubleshooting Symptom Check No sound Check the volume setting on the remote control as well as the volume knob on the Player is not set to minimum. Check if MUTE function is off. Check that no earphone is plugged into the PHONES and Audio jack. Speakers cannot be used with the headphones.

  • Page 37: Specifications

    Specifications Power Requirements Input AC 100V - 240V, 50/60 Hz, Output DC 12V General Power Consumption > 12 W Weight 902g (with battery) Dimensions 225mm ( W ) x 175.5mm ( D ) x 40.5mm ( H ) Operating T emperature Range +10 C~ +40 C Readable Disc DVD, DVD-R, DVD+R, DVD-RW,DVD+RW, VCD, CD, HDCD, Picture CD, CD-R,...
  • Page 38 If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive) For information and support, www.lenco.eu...
