Summary of Contents for LENCO DVP-735
-

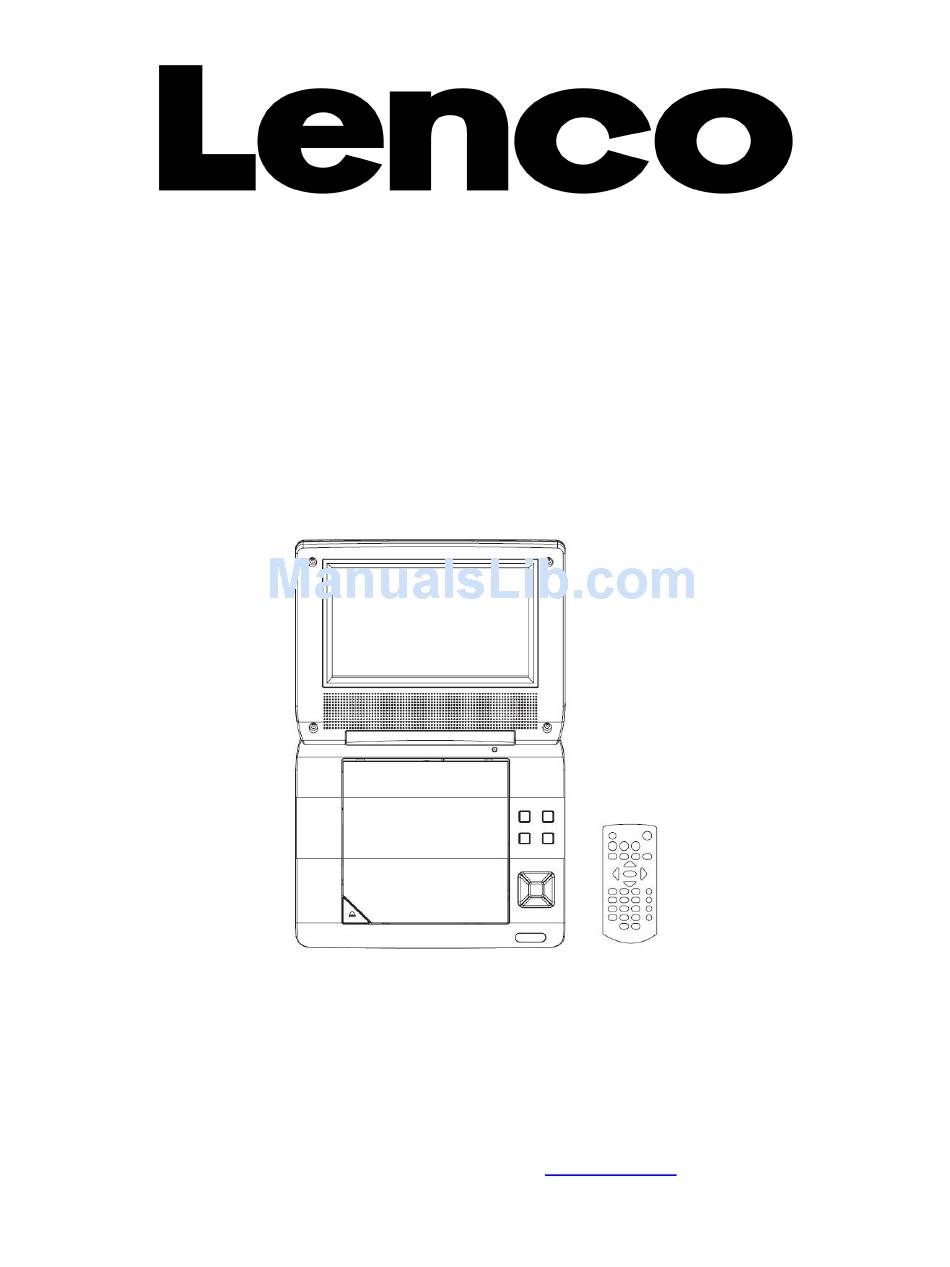

Page 1: User Manual

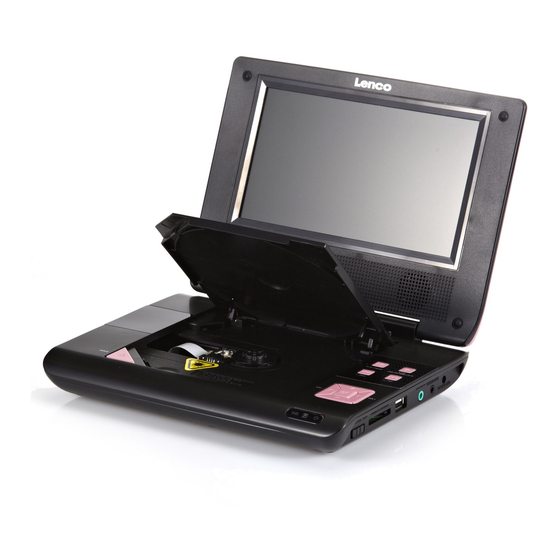

DVP-735 PORTABLE 17,5 CM (7") DVD PLAYER WITH USB- & CARDSLOT AND HEADPHONE User manual English Lenco recommends attentive reading of the manual before operating the unit. For information and support, www.lenco.eu V1.0... -
Page 2: Table Of Contents
Table of content Box content ..................2 Important notes ................. 3 Maintenance..................4 1. Exploring the player ..............5 1.1. Main Unit ........................5 1.2. Remote control unit ......................5 2. Basic connections ............... 6 2.1. AC/DC Power adaptor....................6 2.2. -
Page 3: Important Notes
Power Sources • Lenco recommends using A brand batteries for longer life & results. • When the batteries will not be used for a few weeks or more, remove them to avoid damage that can be caused by battery leakage or corrosion. -
Page 4: Maintenance
• Before playing, clean the CD with a cleaning cloth. Wipe the CD from the center out. • Do not expose the CD to direct sunlight or heat sources such as hot air ducts, not leave it in a car parked in direct sunlight as there can be a considerable rise in temperature inside the car. -
Page 5: Exploring The Player
1. Exploring the player 1.1. Main Unit 1. TFT Screen 2. Speakers 3. Disc cover 4. Disc cover open button 5. Volume- & Navigation left button 6. Charge indicator 7. Remote sensor 8. Power indicator 9. Play/Pause button 10. Stop & USB/SD/MMC card button 11. -
Page 6: Basic Connections
2. Basic connections 2.1. AC/DC Power adaptor Connect the player to the 230V wall outlet by using the AC/DC power adaptor (See below instructions). Plug the small round side of the AC/DC adaptor into the dc in jack (22) on the player. The other side of the AC/DC adaptor needs to be plugged into the wall outlet. -
Page 7: Headphone
2.3. Headphone It is possible to connect a headphone to the player via the headphone jack (20). WARNING: Prolonged exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss. When participating in the traffic listening to a personal music player can make the listener less aware of potential dangers such as approaching cars. -
Page 8: Basic Controls
3. Basic controls The following controls are in all different modes the same, so they will not be explained any further in this instruction manual. On the main unit: Disc cover open button press this button to open the DVD door Volume- button press this button to decrease the volume Volume+ button... -
Page 9: Turning The Player On/Off
Replacing the battery Remove screw 1 on the back side of the player. Now the battery cover can be removed. Remove the battery from the player by pulling the cable and plug into direction 2. Connect the new battery to the main unit repeat these steps in opposite direction. 4.3. - Page 10 REPEAT Press REPEAT button, the player will repeat play one chapter/title or repeat all (for DVD disc), or repeat play a track or all tracks (CD), or repeat the sections between two specific points (A-B). SEARCH FOR PREFERRED SCENE 1. Press SEARCH button several times to show different Search mode. 2.
-
Page 11: Usb Sd Mmc Operation
PICTURE ROTATIONS Press RIGHT and LEFT navigation buttons to rotate the picture Clockwise and anti-clockwise respectively. PICTURE FLIPS Press UP NAVIGATION button to flip the picture vertically. Press DOWN NAVIGATION button to flip the picture horizontally. PICTURE ZOOM IN/OUT Press ZOOM button continuously, the picture zooms in and out. If the picture is enlarged, you may use the navigation buttons to view the other parts of the picture. -
Page 12: Troubleshooting
6. Troubleshooting If your DVD player does not seem to function properly, check the below items before you contact your dealer. Symptom Check Power does not Make sure the AC adaptor is securely plugged into an AC outlet turn on or Make sure the battery is charged suddenly turns off. -
Page 13: Disclaimer
8. Disclaimer Updates to Firmware and/or hardware components are made regularly. Therefore some of the instruction, specifications and pictures in this documentation may differ slightly from your particular situation. All items described in this guide for illustration purposes only and may not apply to particular situation.
