Summary of Contents for LENCO DVD-2051

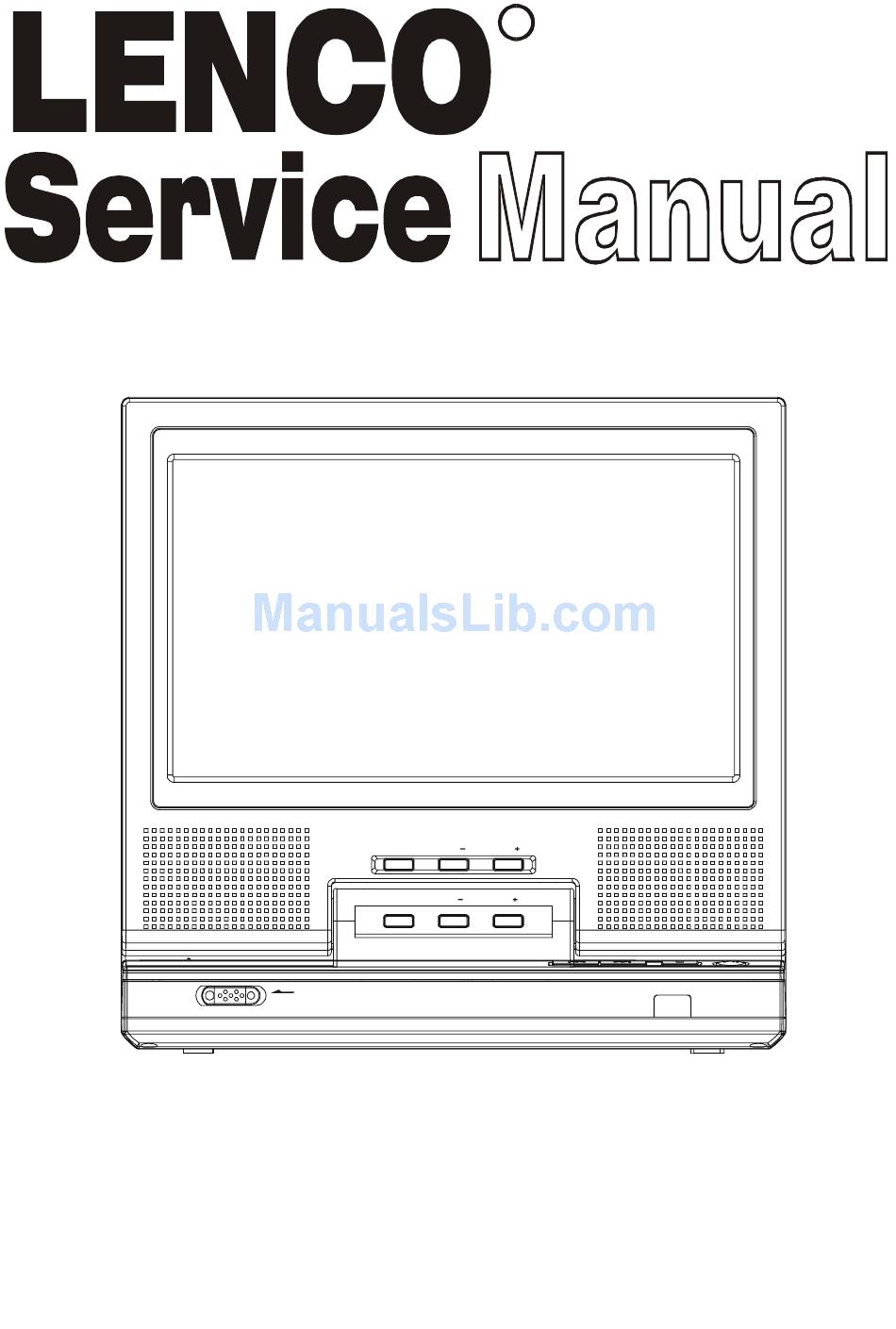

- Page 1 Mobile Video System 7 inch MULTI COLOR TFT MONITOR MENU MODE OPEN MODEL: DVD-2051 (7”) (DVP-700T) Orient Power Mobile Electronics Limited...
-
Page 2: Table Of Contents
CONTENTS Page Disassembly Instructions.............................3 Disassembly Diagram............................4 Block Diagram ..............................5 Printed Circuit Boards............................6 Exploded Views Display ............................16 Exploded View Parts Lists Display ........................17 Exploded Views Unit............................18 Exploded View Parts Lists Unit..........................19 Schematic Diagram ............................20 Electrical Parts List ............................28 Specifications..............................36... -
Page 3: Disassembly Instructions
DISASSEMBLY INSTRUCTIONS 1. Using the unlock key that came with the unit or a similar tool, unlock the TV screw M4X45 and remove two screws (A) then remove the Monitor Top; The Monitor Bottom and take out the Display. 2. Remove the screw (B) from the monitor bottom then remove the Antenna. 3. -
Page 4: Disassembly Diagram
DISASSEMBLY DIAGRAM... -
Page 5: Block Diagram
BLOCK DIAGRAM... -
Page 6: Printed Circuit Boards
PRINTED CIRCUIT BOARDS MAIN BOARD TOP VIEW... - Page 7 MAIN BOARD BOTTOM VIEW...
- Page 8 KEY BOARD...
- Page 9 TV/PT/TB BOARD TOP VIEW...
- Page 10 TV/PT/TB BOARD BOTTOM VIEW...
- Page 11 JB/KB/LB BOARD TOP VIEW...
- Page 12 JB/KB/LB BOARD BOTTOM VIEW...
- Page 13 DISPLAY BOARD...
- Page 14 REMOTE BOARD TOP VIEW...
- Page 15 REMOTE BOARD BOTTOM VIEW...
- Page 16 EXPLODED VIEW PANEL...
- Page 17 EXPLODED VIEW PARTS LIST DISPLAY Ref. No. Description RS Part No. Mfr’s Part No. TV Top (S. DG0201) W/TV BRAND 51-20524-81D TV Bottom (S. DG0201) 51-20525-81D TFT LCD PW70XS2 OR PW070XS4 (COG) PVI 27-01850-02 Display Board 11-10700-927 Speaker 0.5W 80HM Ø28MM 14-02808-00 Press Plate 39-20510-00...
- Page 18 EXPLODED VIEW CABINET...
- Page 19 EXPLODED VIEW PARTS LIST UNIT Ref. No. Description RS Part No. Mfr’s Part No. Display DVD Top (S. DG0201) 51-20550-81D DVD Core (S. DG0201) 51-20551-81D DVD Bottom (S. OPC DG0201) 51-20528-80D DVD Main Board 11-02050-007 DVD MECH DISCMAN (HPD-40) 94-17910-00 DVD Key Board 11-02051-337 TV Main Board...
-
Page 20: Schematic Diagram
SCHEMATIC DIAGRAM (MAIN BOARD) (MPEG) - Page 21 SCHEMATIC DIAGRAM (MAINBOARD) (SERVO)
- Page 22 SCHEMATIC DIAGRAM (MAIN BOARD) (POWER)
- Page 23 SCHEMATIC DIAGRAM (MAIN BOARD) (I/O)
- Page 24 SCHEMATIC DIAGRAM (KEY BOARD)
- Page 25 SCHEMATIC DIAGRAM (TV BOARD)
- Page 26 SCHEMATIC DIAGRAM (REMOTE BOARD)
- Page 27 SCHEMATIC DIAGRAM (DISPLAY BOARD) (MAIN)
- Page 28 SCHEMATIC DIAGRAM (DISPLAY BOARD) (POWER)
-
Page 29: Electrical Parts List
ELECTRICAL PARTS LIST Ref. No. Parts No. Description Q’ty PC BOARD ASSY, MAIN BOARD QP3,9,QM1 01-00106-00 KRA106S (SOT-23) QP2,4 01-00106-10 KRC106S (SOT-23) QH3,4,QD1,2 01-00231-00 KRC231S (SOT-23) Q21/2 01-01132-00 TR. CHIP 2SB1132Q ROHM QP13 01-01298-00 KTA1298 (SOT-23) 01-01385-00 KTA1385D-Y (DPAK) QP12 01-03265-00 KTC3265-Y (SOT-23) QP7,8... - Page 30 ELECTRICAL PARTS LIST - CONTINUED Ref. No. Parts No. Description Q’ty CM7,8 05-63200-00 CHIP CAP 20PF ±5% NPO 0603 SMT CHIP 2200PF ±10% X7R 0603 SMT CD5,6 05-63222-01 C308 05-63224-01W CHIP CAP GRM29XTR224K10PT 0603 C208/9,211,227 05-63330-00 CHIP CAP 33PF ±5% NPO 0603 SMT C105,CD9,10 05-63470-00 CHIP CAP 47PF ±5% NPO 0603 SMT...
- Page 31 ELECTRICAL PARTS LIST - CONTINUED Ref. No. Parts No. Description Q’ty RM24,R114,201~4/8,308,407 07-63330-00 CHIP RES. 33Ω ±5% 0603 SMT RN11 07-63330-04 CHIP CN34JT 33Ω (0603X4 SMT) RD1,4~6,R109~11/5,403 07-63332-00 CHIP RES. 3.3kΩ ±5% 0603 SMT R403/8 07-63333-00 CHIP RES. 33kΩ ±5% 0603 SMT RP12/4 07-63362-01 CHIP RES.
- Page 32 ELECTRICAL PARTS LIST - CONTINUED Ref. No. Parts No. Description Q’ty RK4~6,8 07-63102-00 CHIP RES 1kΩ ±5% 0603 SMT RK3,10/15/03 07-63151-00 CHIP RES 150Ω ±5% 0603 SMT 07-63333-00 CHIP RES 33kΩ ±5% 0603 SMT RK2,7,9 07-63472-00 CHIP RES 4.7kΩ ±5% 0603 SMT 11-02051-337 DVD2051 KB D/S 72.5X48.6X1.2MM 16-01140-04A...
- Page 33 ELECTRICAL PARTS LIST - CONTINUED Ref. No. Parts No. Description Q’ty C01~4,9 05-63270-00 CHIP CAP 27PF ±5% NPO 0603 SMT CA10/1 05-63272-01 CHIP 2700PF ±10% X7R 0603 SMT CU4,5,C08 05-63300-00 CHIP CAP 30PF ±5% NPO 0603 SMT 05-63470-00 CHIP CAP 47PF ±5% NPO 0603 SMT C015 05-63560-00 CHIP CAP 56PF ±5% NPO 0603 SMT...
- Page 34 ELECTRICAL PARTS LIST - CONTINUED Ref. No. Parts No. Description Q’ty 09-70221-05 LINE CHOKE 220µH Ø8X10H 11-02050-137 DVD205 TV D/S 187X40X1.2MM AUDIO 16-00035-10 Ø3.5MM JACK 4PIN BLACK VIDEO 16-00035-20 Ø3.5MM JACK 4PIN YELLOW ANT1 16-00035-40 Ø3.5MM JACK 4PIN BLUE CON1 25-08361-20 CON DIP 20PIN P=1.27MM MALE CON3,5...
- Page 35 ELECTRICAL PARTS LIST - CONTINUED Ref. No. Parts No. Description Q’ty IC302 03-03414-00 IC CHIP NJM3414AM JRC IC500 03-09241-00 IC CHIP X9241AWV XICOR XT200 04-03579-00 CRYSTAL 3.579MHZ (SMD) XT201 04-04433-00 CRYSTAL 4.433MHZ SMD 05-00470-302 CER CAP 47P 3KV ±10% C35/6,46/9 05-03225-10 CHIP CAP 2.2µF/25V SMD 1206 05-04104-00...
- Page 36 ELECTRICAL PARTS LIST - CONTINUED Ref. No. Parts No. Description Q’ty R213 07-63123-00 CHIP RES 12kΩ ±5% 0603 SMT 07-63152-00 CHIP RES 1.5kΩ ±5% 0603 SMT R32,210,231,338,365 07-63153-00 CHIP RES 15kΩ ±5% 0603 SMT R240 07-63183-00 CHIP RES 18kΩ ±5% 0603 SMT R36,55,336,502 07-63203-00 CHIP RES 20kΩ...
-
Page 37: Specifications
SPECIFICATIONS DC Supply............................. 12V (11~15V) CD Play Ability: Interruption (ABEX RCD-725B) ......................900 ~ 700µm Black Dots (ABEX TCD725B)......................800 ~ 600µm Finger Prints (ABEX TCD725B)......................75 ~ 65µm Play Eccentric Disc (ABEX TCD712) .......................140µm DVD Play Ability: Interruption (ABEX TDV-541) .......................1000 ~ 800µm Black Dots (ABEX TDV545) ......................1000 ~ 800µm Finger Prints (ABEX TDV545) ......................75 ~ 65µm Play Eccentric Disc (ABEX TCD553) .......................150µm...
