Summary of Contents for Chauvet Gobo Zoom LED 2.0

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    Standalone ..........................................8 DMX C ..................................8 HANNEL ALUES 5. APPENDIX ..................................9 ................................9 ENERAL ROUBLESHOOTING ..................................9 ENERAL AINTENANCE ..................................10 ETURNS ROCEDURE TECHNICAL SPECIFICATIONS ............................11 ...................................... 12 ONTACT Page 2 of 12 Gobo Zoom LED 2.0 (Rev. 3)

  • Page 3: Before You Begin

    In addition, retain the container and all the packing material for inspection. For other issues such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within seven (7) days of receiving the merchandise.

  • Page 4: Safety Notes

    Never disconnect the power cord by pulling or tugging on the cord. • Never carry the product directly from the cord. Always use the hanging/mounting bracket. • Avoid direct eye exposure to the light source while it is on. Page 4 of 12 Gobo Zoom LED 2.0 (Rev. 3)

  • Page 5: Introduction

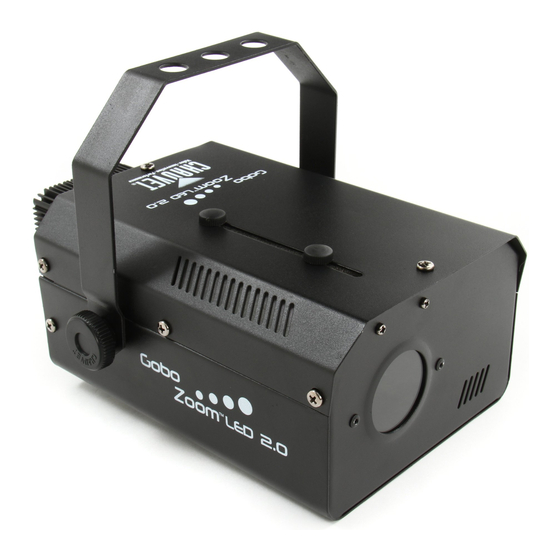

    2. I NTRODUCTION Product Overview Mounting Bracket DMX Out DIP Switches DMX In Safety Bracket Bracket Adjustment Knob Adjustment Knob Power In Fuseholder Zoom Thumbscrew Adjustment Focus Thumbscrew Adjustment Gobo Holder Gobo Zoom LED 2.0 (Rev. 3) Page 5 of 12...

  • Page 6: Setup

    NOTE: To make your own gobos, buy any transparency from an office supply store that is less than 1 mm thick. See www.chauvetlighting.com for more information Gobo Holder Thumbscrews Color Gel Gobo Gobo Retainer Ring Page 6 of 12 Gobo Zoom LED 2.0 (Rev. 3)

  • Page 7: Mounting

    Do not use tools for this step, as it may cause damage. • Safety cables must always be used. Mounting bracket Do not use a tool on the bracket adjustment knob Gobo Zoom LED 2.0 (Rev. 3) Page 7 of 12...

  • Page 8: Operating Instructions

    DMX Channel Values HANNEL ALUE UNCTION Dimmer 000  255 0%~100% Gobo Rotation 000  255 Slow~fast The product ships with the gobos shown below. Page 8 of 12 Gobo Zoom LED 2.0 (Rev. 3)

  • Page 9: Appendix

    • Keep DMX cables separated from • Interference from AC wires power cables or black lights. If you still have a problem after trying the above solutions, please contact CHAUVET® Technical Support. General Maintenance To maintain optimum performance and minimize wear, products should be cleaned frequently.

  • Page 10: Returns Procedure

    Authorization Number (RMA #). Products returned without the RMA # will be refused. Call CHAUVET® and request an RMA # prior to shipping the product. Be prepared to provide the model number, serial number and a brief description of the cause for the return.

  • Page 11: Technical Specifications

    Data pin configuration ........................ pin 1 shield, pin 2 (-), pin 3 (+) Protocol ................................DMX-512 USITT DMX Channels ..................................2 ORDERING INFORMATION Gobo Zoom™ LED 2.0 ..........................GOBOZOOMLED2 WARRANTY INFORMATION Warranty ..............................2-year limited warranty Gobo Zoom LED 2.0 (Rev. 3) Page 11 of 12...

  • Page 12: Contact Us

    Voice: +44 (0)1773 511115 Technical Support Fax: +44 (0)1773 511110 Voice: (954) 929-1115 (Press 4) Email: uktech@chauvetlighting.com Fax: (954) 756-8015 Email: tech@chauvetlighting.com World Wide Web World Wide Web www.chauvetlighting.com www.chauvetlighting.co.uk Page 12 of 12 Gobo Zoom LED 2.0 (Rev. 3)
