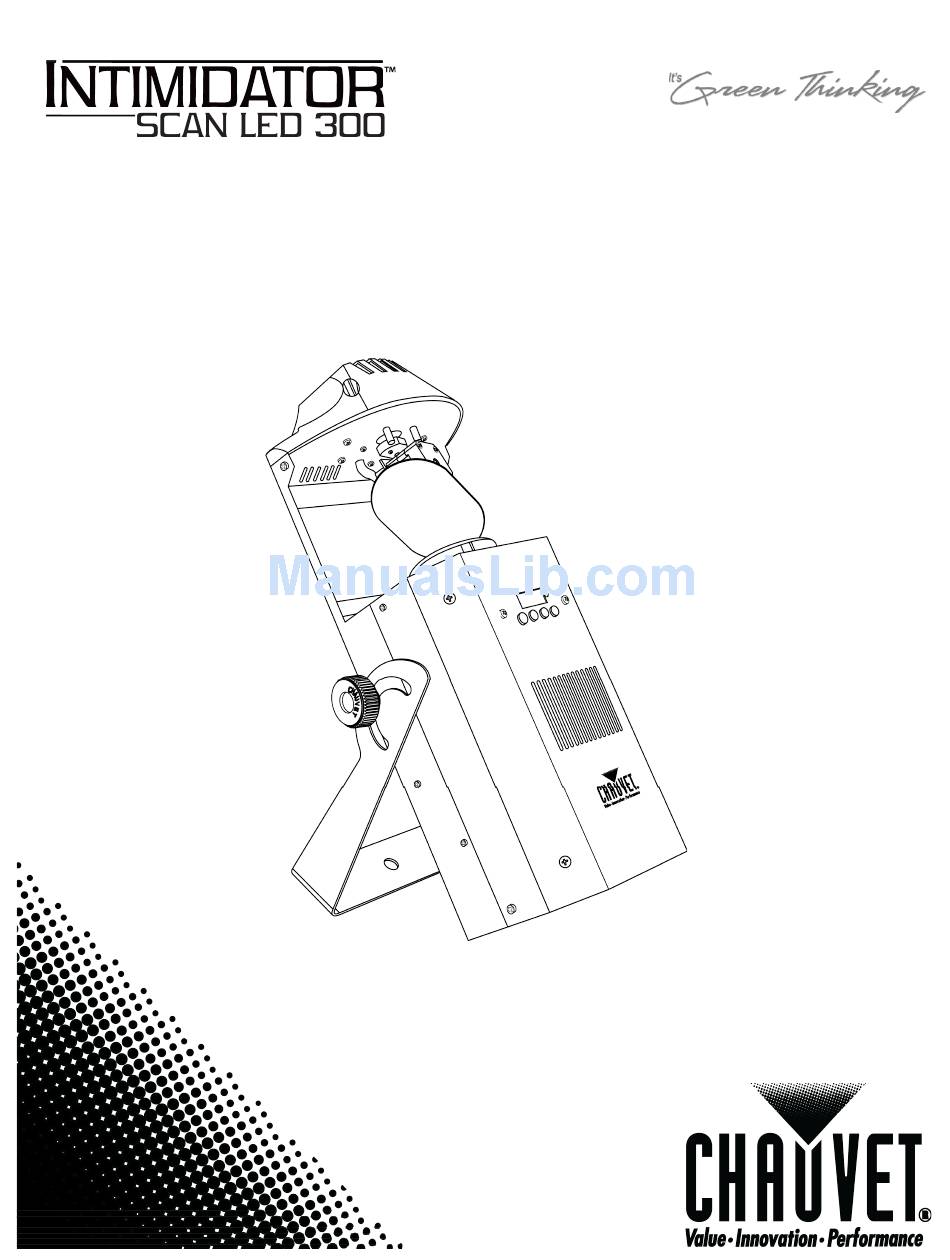

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    CONTACT US ... 20 CHAUVET®, 2010, All Rights Reserved Information and specifications in this User Manual are subject to change without notice. CHAUVET® assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual. Author: Anthony Chiappone...

  • Page 3: Before You Begin

    In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Manual Conventions CHAUVET® manuals use the following conventions to differentiate certain types of information from the regular text. ONVENTION [10] <Menu>...

  • Page 4: Safety Instructions

    Safety Instructions Please read these instructions carefully. It includes important information about the installation, usage and maintenance of this product. • Please keep this User Manual for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. •...

  • Page 5: Introduction

    2. I NTRODUCTION Product Dimensions 2. Introduction 10/25/2010 10:23 AM...

  • Page 6: Product Overview

    Product Overview DMX In DMX Out 2. Introduction 10/25/2010 10:23 AM Safety Bracket Adjustment Knob Voltage Selection Switch (115/230 VAC) Power In Power Out Fuseholder...

  • Page 7: Setup

    Additional power link out The power linking shown in this document is for the CHAUVET® North American version ONLY! Therefore, it is the customer’s responsibility to check with the Dealer/Distributor regarding power linking on the local version of the product. Connections and availability may change, depending on the power requirements and/or regulations of each country/region.

  • Page 8: Mounting

    Mounting Orientation The Intimidator™ Scan LED 300 may be mounted in any position provided there is adequate room for ventilation. Rigging Be sure that the structure can support the weight of the fixture. Please see the “Technical Specifications” section of this manual for a detailed weight listing. Mount the fixture securely. This may be done with a screw, nut and bolt, or a hanging clamp.

  • Page 9: Operating Instructions

    4. O PERATING NSTRUCTIONS Using the Control Panel Access control panel functions using the four buttons located directly underneath the LED display on the included wired remote. UTTON <MODE ESC> <DOWN> <UP> <ENTER> Use the control panel to select the operating mode, as well as the sub-features. For a detailed layout of the control panel functions, please see the “menu map”...

  • Page 10: Operation

    Operation DMX Operation This is the operating mode which will allow for control with an external DMX controller. You must set the starting address for this mode. If this is your first time using DMX, then it is recommended that you refer to the “DMX Primer” section in the “Appendix” of this manual. Press <MODE/ESC>...

  • Page 11: Sound-Active

    Sound-Active This fixture has a preprogrammed, sound triggered chase. Access this via the control panel on the front of the fixture. Adjust the microphone sensitivity from the control panel. Please see the chart below for further explanation. Press <MODE/ESC> until one of the standalone modes appears on the LED screen SLAv, NStS, NAFA, NASL Using <UP>...

  • Page 12: Dmx Channel Values

    DMX Channel Values 11-CH Mode HANNEL ALUE UNCTION 0°~180° Tilt 0°~90° Color Open (white) Yellow Pink Green Peachblow Blue Kelly Dark blue White/yellow (split colors) Yellow/pink (split colors) Pink/green (split colors) Green/peach blow (split colors) Peachblow/blue (split colors) Blue/Kelly (split colors) Kelly/red (split colors) Red/dark blue (split colors) Dark blue/white (split colors)

  • Page 13: 7-Ch Mode

    7-CH Mode HANNEL ALUE UNCTION 0°~180° Tilt 0°~90° Color Open (white) Yellow Pink Green Peachblow Blue Kelly Dark blue White/yellow (split colors) Yellow/pink (split colors) Pink/green (split colors) Green/peach blow (split colors) Peachblow/blue (split colors) Blue/Kelly (split colors) Kelly/red (split colors) Red/dark blue (split colors) Dark blue/white (split colors) Rotate clockwise (slow ~ fast)

  • Page 14: Appendix

    Device does not power up Fixture is not responding to DMX Loss of signal If you still have a problem after trying the above solutions, please contact CHAUVET® Technical Support. 5. Appendix OSSIBLE AUSE • Check total load placed on the •...

  • Page 15: Dmx Primer

    Maximum recommended number of fixtures on a daisy chain: 32 Data Cabling To link fixtures together you must obtain data cables. You can purchase CHAUVET® certified DMX cables directly from a dealer/distributor or construct your own cable. If you choose to create your own cable please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference.

  • Page 16: Cable Connectors

    Cable Connectors Cabling must have a male XLR connector on one end and a female XLR connector on the other end. DMX connector configuration INPUT Terminator Do not allow contact between the common and the fixture’s chassis ground. Grounding the common can cause a ground loop, and your fixture may perform erratically. Test cables with an ohm meter to verify correct polarity and to make sure the pins are not grounded or shorted to the shield or each other.

  • Page 17: 3-Pin To 5-Pin Conversion Chart

    3-Pin to 5-Pin Conversion Chart If you use a controller with a 5-pin DMX output connector, you will need to use a 5-pin to 3-pin adapter. The chart below details a proper cable conversion: Conductor Ground/Shield Data ( - ) signal Data ( + ) signal Not used Not used...

  • Page 18: General Maintenance

    Package must be clearly labeled with a Return Merchandize Authorization Number (RMA #). Products returned without the RMA # will be refused. Call CHAUVET® and request an RMA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return.

  • Page 19: Technical Specifications

    ECHNICAL PECIFICATIONS WEIGHT & DIMENSIONS Length ... 11 in (279 mm) Width ... 10 in (254 mm) Height ... 18.9 in (478 mm) Weight ... 14.7 lbs (6.7 kg) GOBO SIZE Outside ... 23.8 mm Inside ... 20.9 mm Thickness (max)... 2 mm MOVEMENT RANGE Pan ...

  • Page 20: Contact Us

    ONTACT W o r l d W i d e General Information CHAUVET® 5200 NW 108 Sunrise, FL 33351 voice: 954.929.1115 fax: 954.929.5560 toll free: 800.762.1084 Technical Support CHAUVET® 5200 NW 108 Sunrise, FL 33351 voice: 954.929.1115 (Press 4) fax: 954.929.5560 (Attention: Service)
