Summary of Contents for Chauvet Intimidator Scan LED 300

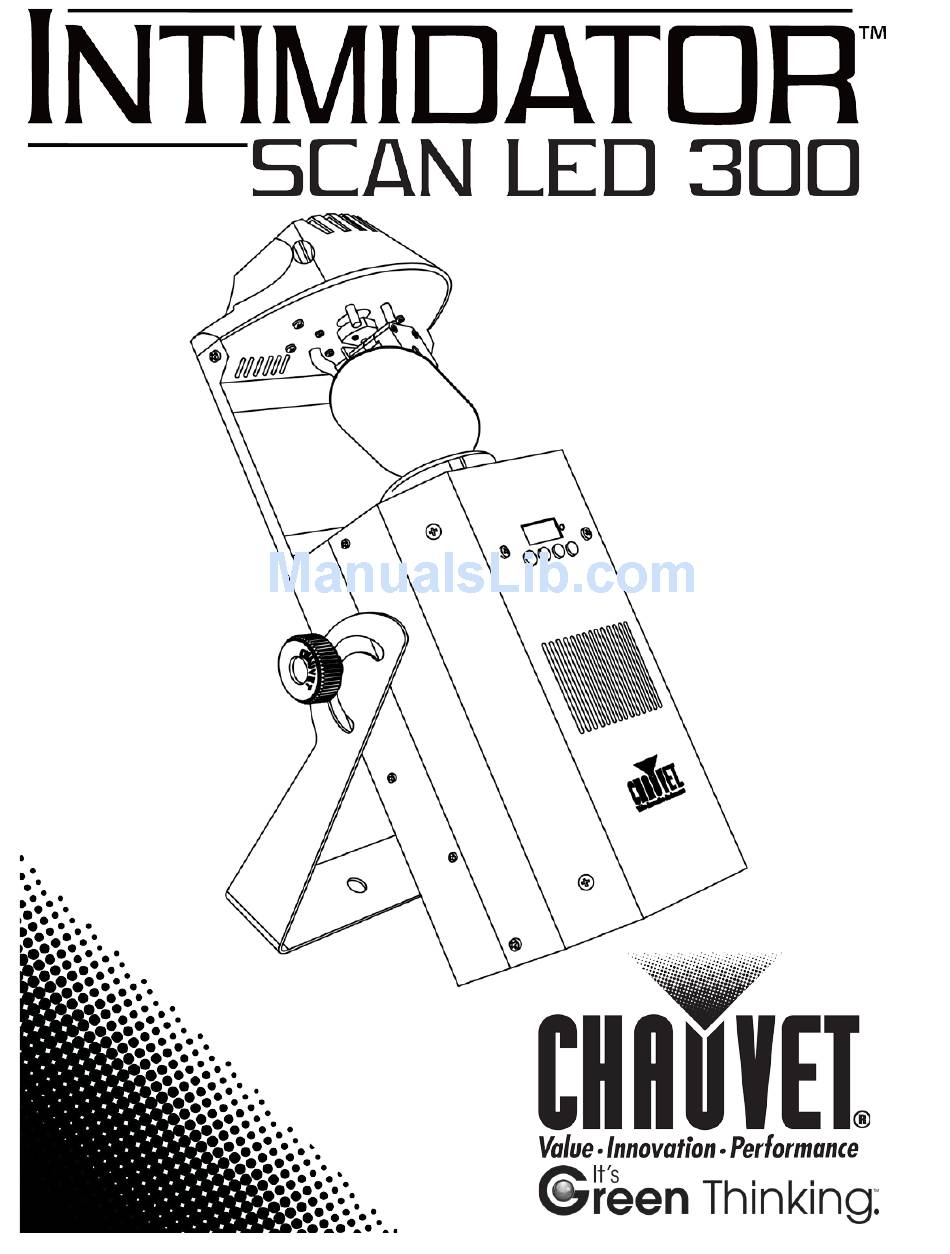

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    ABLE OF ONTENTS 1. Before You Begin ......................3 What Is Included ........................... 3 Unpacking Instructions ......................... 3 Claims ..............................3 Text Conventions .......................... 3 Symbols ............................3 Disclaimer ............................. 3 Product at a Glance ........................4 Safety Notes ..........................4 2.

  • Page 3: Before You Begin

    CHAUVET®. Failure to do so in a timely manner may invalidate your claim with the carrier. In addition, keep the container and all the packing material for inspection.

  • Page 4: Product At A Glance

    Product at a Use on Dimmer Auto Programs Outdoor Use Switchable voltage (120 V/230 V) Glance Sound-Activated Replaceable Fuse User-Serviceable Master/Slave Duty Cycle Please read the following Safety Notes carefully before working with the product. The Safety Notes Notes include important safety information about installation, usage, and maintenance. ·...

  • Page 5: Introduction

    2. I NTRODUCTION Product Overview Voltage Selection Switch (120/230 VAC) DMX In Power In DMX Out Power Out Fuseholder Rear Panel Intimidator™ Scan LED 300 User Manual Rev. 6 Page 5 of 17...

  • Page 6: Product Dimensions

    Product Dimensions Page 6 of 17 Intimidator Scan™ LED 300 User Manual Rev. 6...

  • Page 7: Setup

    The power linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local CHAUVET® distributor as power linking connectors and requirements may differ in your country or region.

  • Page 8: Mounting

    Before mounting the product, read and follow the safety recommendations indicated in Mounting the Safety Notes. The Intimidator™ Scan LED 300 may be mounted in any position; however, make sure Orientation adequate ventilation is provided around the product. · Before deciding on a location for the product, always make sure there is easy Rigging access to the product for maintenance and plenty of ventilation.

  • Page 9: Operation

    502. If you are not familiar with the DMX protocol, download the DMX Primer from the CHAUVET® website. To select the starting address, do the following: Press <MODE/ESC> repeatedly until d(001–512) shows on the display.

  • Page 10: Dmx Channels And Functions

    DMX Channels and Functions 11-CH Mode Channel Value Function Channel Value Function Gobo Rotation 000 ó 255 000 ó 015 0–180° Stop 016 ó 127 Rotate Counter-clockwise (slow ó fast) Tilt 128 ó 239 Rotate Clockwise (slow ó fast) 000 ó 255 0–90°...
  • Page 11 8-CH Mode Channel Value Function Channel Value Function Gobo Wheel 000 ó 255 000 ó 007 0–180° Open 008 ó 015 Gobo 1 (glass) Tilt 016 ó 023 Gobo 2 (glass) 000 ó 255 0–90° 024 ó 031 Gobo 3 032 ó...

  • Page 12: Configuration (Standalone)

    Set the product in one of the standalone modes to control without a DMX controller. Configuration Connect the product to a suitable power outlet. (Standalone) Turn the product on. Never connect a product that is operating in any standalone mode (either Static, Automatic, or Sound) to a DMX string connected to a DMX controller.

  • Page 13: Master/Slave Mode

    The Master/Slave mode allows a single Intimidator™ Scan LED 300 unit (the “master”) Master/Slave to control the actions of one or more Intimidator™ Scan LED 300 units (the “slaves”) Mode without the need of a DMX controller. The master unit will be set to operate in either Auto program or Sound-Active mode, while the slave units will be set to operate in Slave mode.

  • Page 14: Changing Gobos

    To change the gobos in the Intimidator™ Scan 300, you do not need to remove the gobo Changing wheel. Simply: Gobos Turn off and disconnect fixture from power outlet. Place the product on a flat, level surface with the front facing up. Open the head cover by loosening the ten fastening screws at the sides of the top cover.

  • Page 15: Technical Information

    5. T ECHNICAL NFORMATION Dust build-up reduces light output performance and can cause overheating. This can Product lead to reduction of the light source’s life and mechanical wear. To maintain optimum Maintenance performance and minimize wear, clean the product at least twice a month. Use and environmental conditions could cause increased cleaning frequency.

  • Page 16: Technical Specifications

    6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 11 in (279 mm) 10 in (254 mm) 18.9 in (478 mm) 14.7 lbs (6.7 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Supply Type Range Power Switchable...

  • Page 17: Returns

    If you live in the U.S., contact CHAUVET® World Headquarters (see below). · If you live in the UK or Ireland, contact CHAUVET® Europe Ltd. (see below). · If you live in any other country, DO NOT contact CHAUVET®. Instead, contact your distributor of record.
