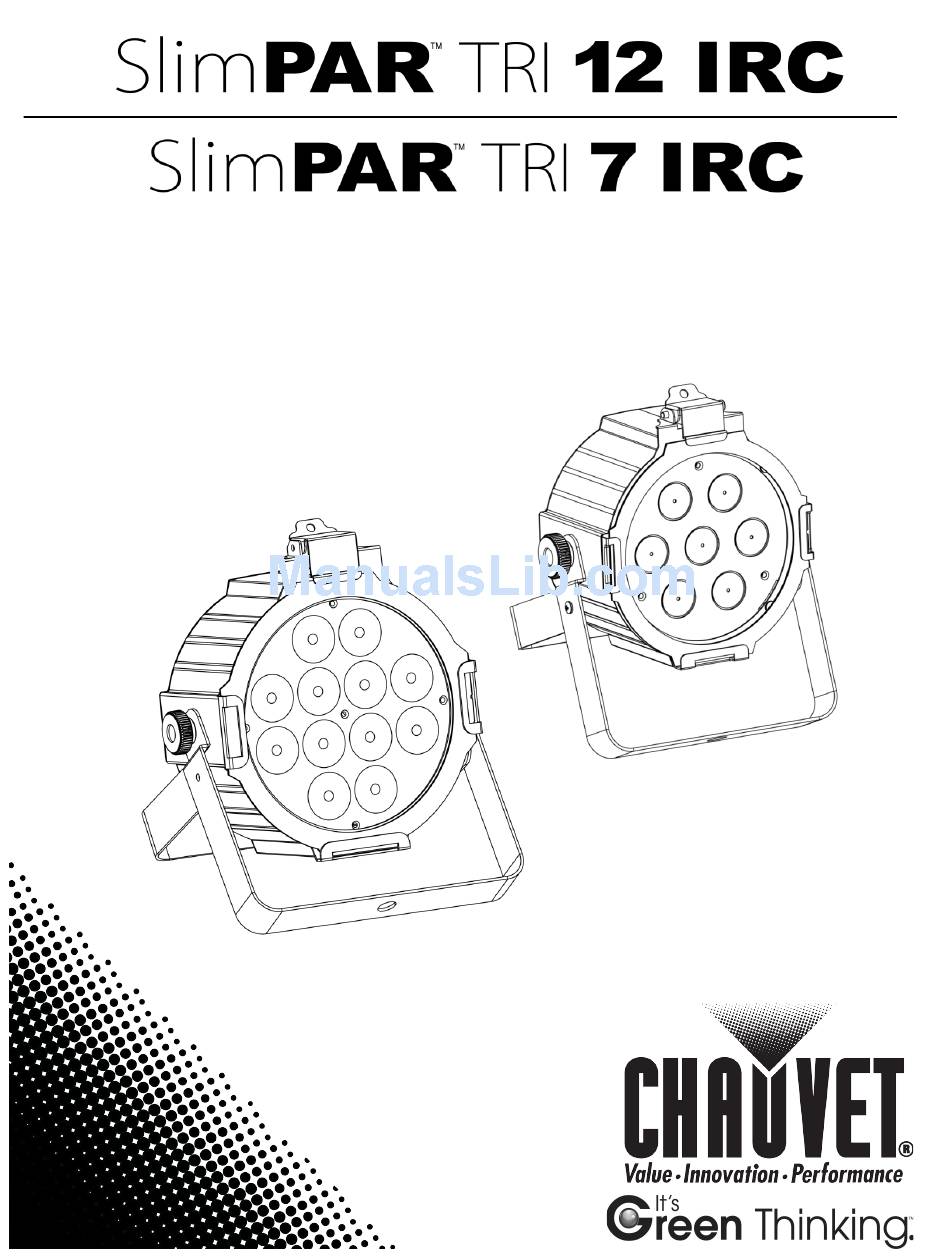

- Page 1 User Manual...
-
Page 2: Table Of Contents
DMX Channel Assignments and Values..................16 7-CH ..............................16 3-CH ..............................16 5. Technical Information ....................16 Product Maintenance ........................ 16 Returns ............................. 17 CHAUVET® Contact Information ....................17 6. Technical Specifications ....................18 Page 2 of 18 SlimPAR™ Tri IRC series User Manual (Rev. 5) -
Page 3: Before You Begin
CHAUVET® assumes no responsibility or liability for any errors or omissions that may appear in this manual. CHAUVET® reserves the right to update the existing document or to create a new document to correct any errors or omissions. -
Page 4: Product At A Glance
Product at a Use on Dimmer Auto Programs Glance Outdoor Use Auto-ranging Power Supply Sound Activated Replaceable Fuse User Serviceable Master/Slave Duty Cycle Safety Notes Please read the following Safety Notes carefully before working with the product. The Notes include important safety information about installation, usage, and maintenance. -
Page 5: Introduction
2. I NTRODUCTION Product Overview (SlimPAR™ Tri 12 IRC) LED Display DMX Out Power In Bracket Adjustment Knob Fuse Holder Safety Loop Power Out DMX In SlimPAR™ Tri IRC series User Manual (Rev. 5) Page 5 of 18... -
Page 6: Product Overview (Slimpar™ Tri 7 Irc)
Product Overview (SlimPAR™ Tri 7 IRC) LED Display DMX Out Fuse Holder Bracket Adjustment Knob Power In Safety Loop Power Out DMX In Page 6 of 18 SlimPAR™ Tri IRC series User Manual (Rev. 5) -
Page 7: Product Dimensions (Slimpar™ Tri 12 Irc)
Product Dimensions (SlimPAR™ Tri 12 IRC) SlimPAR™ Tri IRC series User Manual (Rev. 5) Page 7 of 18... -
Page 8: Product Dimensions (Slimpar™ Tri 7 Irc)
Product Dimensions (SlimPAR™ Tri 7 IRC) Page 8 of 18 SlimPAR™ Tri IRC series User Manual (Rev. 5) -
Page 9: Setup
3. S ETUP AC Power The SlimPAR™ Tri IRC series has an auto-ranging power supply and it can work with an input voltage range of 100~240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 10: Power Linking
The power linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local CHAUVET® distributor as power linking connectors and requirements may differ in your country or region. -
Page 11: Mounting
Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The SlimPAR™ Tri IRC series may be mounted in any position; however, make sure adequate ventilation is provided around each product. Rigging • Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 12: Operation
4. O PERATION Control Panel To access the control panel functions, use the four buttons located underneath the display. Please refer to the Product Overview to see the button locations on the control Operation panel. Button Function Press to find an operation mode or to back out of the current menu <MENU>... -
Page 13: Configuration (Dmx)
Configuration Set the product in DMX mode to control with a DMX controller. Connect the product to a suitable power outlet. (DMX) Turn the product on. Connect a DMX cable from the DMX output of the DMX controller to the DMX input socket on the product. -
Page 14: Master/Slave Mode
7-channel mode to ensure the best performance. Infrared Control The SlimPAR™ Tri IRC series is fully compatible with the IRC Infrared Remote Control from CHAUVET®. To enable usage with the IRC, follow the instructions below: Press <MENU> repeatedly until SEr shows on the display. Press <ENTER>. -
Page 15: Irc (Infrared Remote Control) Operation
IRC (Infrared Remote Control) Operation Automatic Mode Automatic Mode will enable you to run the automatic programs on the product. To turn on Automatic Mode: Press AUTO on the IRC. Press + or – to choose between the different auto programs. To adjust the speed of the automatic program: Press SPEED on the IRC. -
Page 16: Dmx Channel Assignments And Values
DMX Channel Assignments and Values 7-CH Channel Function Value Setting 000 255 0~100% Green 000 255 0~100% Blue 000 255 0~100% 000 015 No function Color Macros (overrides CH. 1-3) 016 255 Color Macros Speed 000 ... -
Page 17: Returns
You must send the merchandise prepaid, in its original box, and with its original packing and accessories. CHAUVET® will not issue call tags. Clearly label the package with the RMA number. CHAUVET® will refuse any product returned without an RMA number. -
Page 18: Technical Specifications
6. T ECHNICAL PECIFICATIONS Dimensions and Length (Tri 12) Width (Tri 12) Height (Tri 12) Weight (Tri 12) Weight 9.5 in (235 mm) 4.6 in (115 mm) 11.5 in (292 mm) 5.7 lbs (2.6 kg) Length (Tri 7) Width (Tri 7) Height (Tri 7) Weight (Tri 7) 7.7 in (195 mm)
