Summary of Contents for Chauvet EZpar 64 RGBA

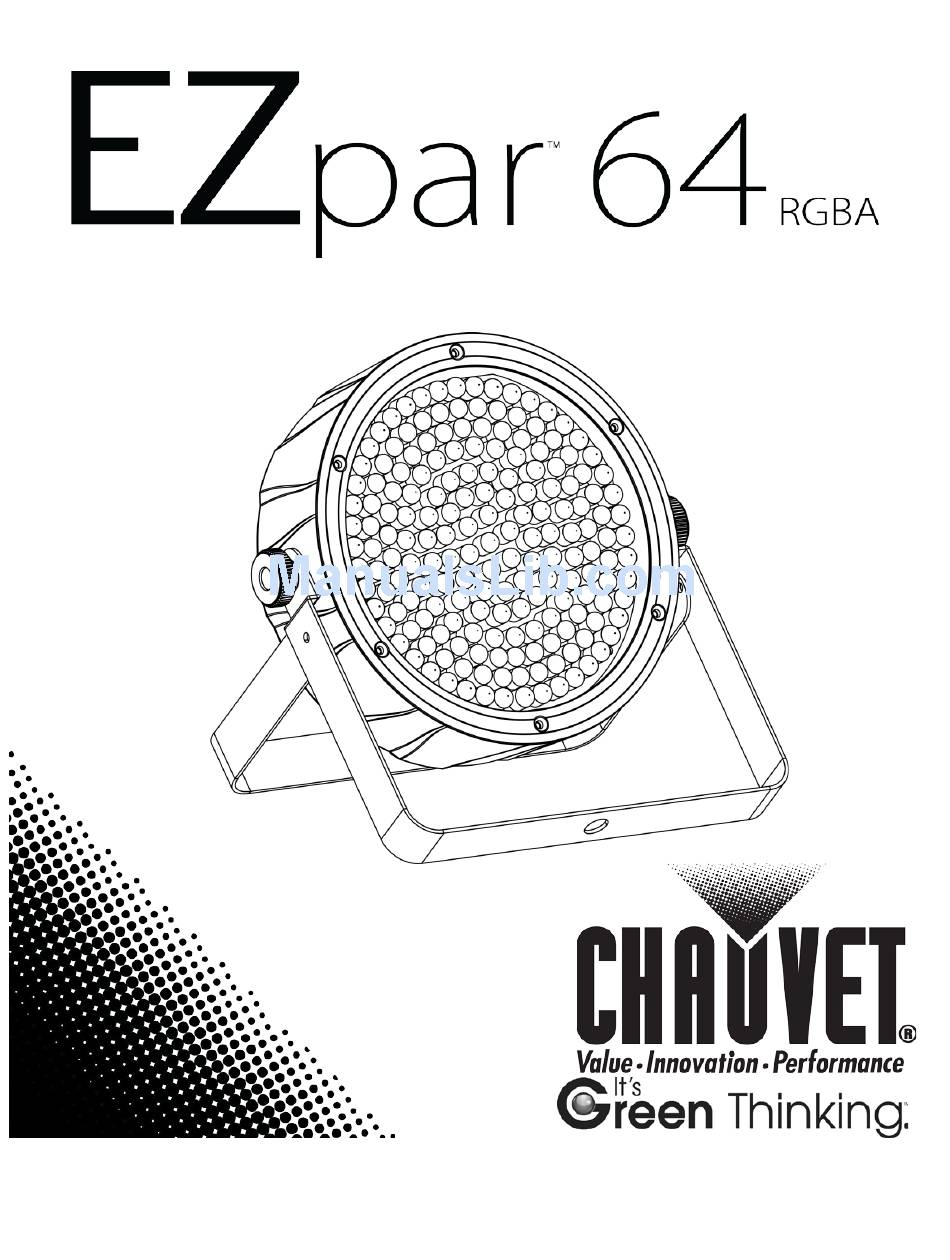

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before You Begin ......................3 What Is Included ......................... 3 Unpacking Instructions ........................ 3 Claims ..............................3 Text Conventions ........................3 Symbols ............................3 Disclaimer ........................... 3 Product at a Glance ........................4 Safety Notes ..........................4 2. -
Page 3: Before You Begin
Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Text Convention Meaning 1–512... -
Page 4: Product At A Glance
Product at a Use on Dimmer Auto Programs Glance Outdoor Use Auto-ranging Power Supply Sound-Activated Replaceable Fuse User-Serviceable Master/Slave Safety Notes These notes include important information about the mounting, usage, and maintenance of this product; read before using the product. ·... -
Page 5: Introduction
2. I NTRODUCTION Overview Battery Charged Battery Microphone Green Indicator Charging DMX Out Light Menu Display DMX In Red Indicator Light Power Menu Buttons Fuse Holder Power Power Switch Back Panel View EZpar™ 64 RGBA User Manual Page 5 of 20... -
Page 6: Dimensions
Dimensions 10.8 in 276 mm 2.6 in 10.8 in 275 mm 66 mm Page 6 of 20 EZpar™ 64 RGBA User Manual... -
Page 7: Setup
3. S ETUP AC Power The EZpar™ 64 RGBA has an auto-ranging power supply and it can work with an input voltage range of 100~240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 8: Fuse Replacement
Fuse Replacement Disconnect the product from power before replacing the fuse. Disconnect the product from power. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder. Pry the fuse holder out of the housing. Remove the blown fuse from the holder. Replace with a fuse of the exact same type and rating. -
Page 9: Power Linking
The power linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local CHAUVET® distributor as power linking connectors and requirements may differ in your country or region. -
Page 10: Mounting
Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The EZpar™ 64 RGBA may be mounted in any position; however, make sure adequate ventilation is provided around the product. · Rigging Before deciding on a location, always make sure there is easy access to the product for maintenance and programming. -
Page 11: Operation
4. O PERATION Control Panel To access the control panel functions, use the four buttons located underneath the display. Operation Button Function <MENU> Selects an operation mode or backs out of the current menu option <UP> Scrolls up the list of options or selects a higher value <DOWN>... -
Page 12: Configuration (Dmx)
Configuration Set the product in DMX mode to control with a DMX controller. Connect the product to a suitable power outlet. (DMX) Turn the product on. Connect a DMX cable from the DMX output of the DMX controller to the DMX input socket on the product. -
Page 13: Dmx Channel Modes, Assignments, And Values
DMX Channel Modes, Assignments, and Values Channel Function Value Setting 8-Channel 000 ó 255 0–100% 000 ó 255 0–100% Green 000 ó 255 0–100% Blue 000 ó 255 0–100% Amber 000 ó 015 Color Macros No function 016 ó 255 (Overrides Channels 1–4) Color macros Speed... -
Page 14: Configuration (Standalone)
Configuration Set the product in one of the standalone modes to control without a DMX controller. Connect the product to a suitable power outlet. (Standalone) Turn the product on. Never connect a product that is operating in any standalone mode (Static, Automatic, or Sound-Active) to a DMX string connected to a DMX controller. -
Page 15: Static Colors
Repeat steps 3 to 5 until you create your desired color. Infrared Remote The EZpar™ 64 RGBA is fully compatible with the Infrared Remote Control (IRC) from CHAUVET®. To enable use with the IRC, do the following: Control Press <MENU> repeatedly until SET shows on the display. -
Page 16: Irc Operation
IRC Operation Note: Make sure to point the IRC directly at the receiver on the front of the product. Automatic Mode Automatic mode will enable you to run the automatic programs on the product. To turn on Automatic mode: Press <AUTO> on the IRC. Press <+>... -
Page 17: Master/Slave Mode
Master/Slave The Master/Slave mode allows a single EZpar™ 64 RGBA unit (the “master”) to control the actions of one or more EZpar™ 64 RGBA units (the “slaves”) without the need of a Mode DMX controller. The master unit will be set to operate in either an automatic program or Sound-Active mode, while the slave units will be set to operate at DMX address d 1. -
Page 18: Technical Information
5. T ECHNICAL NFORMATION Product Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and mechanical wear. To maintain optimum Maintenance performance and minimize wear, clean the product at least twice a month. However, usage and environmental conditions contribute to increased cleaning frequency. -
Page 19: Technical Specifications
6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 10.8 in (276 mm) 10.8 in (275 mm) 2.6 in (66 mm) 4 lbs (1.9 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Range Voltage Selection Switching (internal) -
Page 20: Returns
You must send the merchandise prepaid, in its original box, and with its original packing and accessories. CHAUVET® will not issue call tags. Clearly label the package with the RMA number. CHAUVET® will refuse any product returned without an RMA number.
