Summary of Contents for Chauvet mini kinta IRC

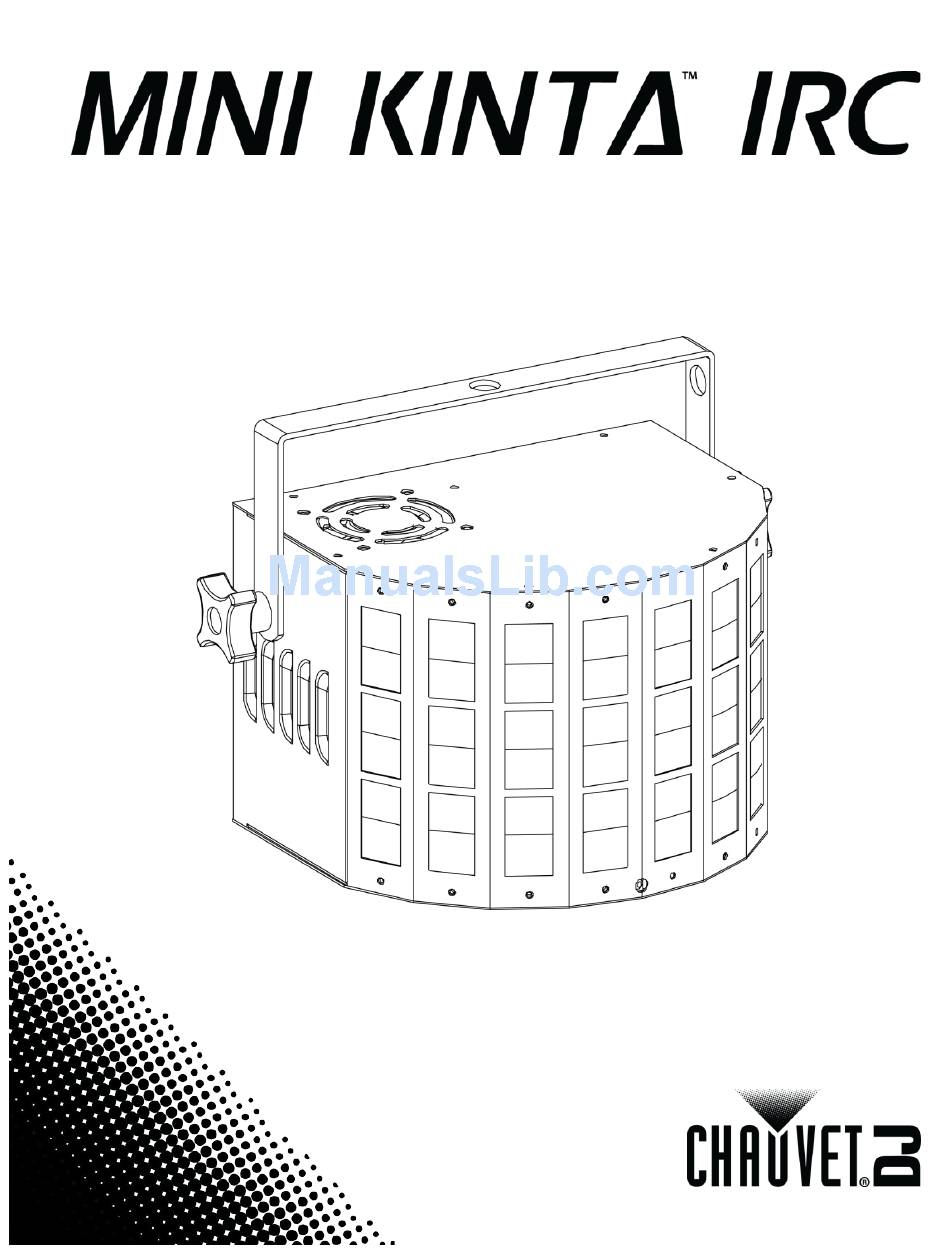

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before You Begin ......................3 What Is Included ..........................3 Unpacking Instructions ........................3 Claims ..............................3 Text Conventions ..........................3 Symbols ............................3 Disclaimer ............................3 Product at a Glance ........................4 Safety Notes ............................ 4 2. -
Page 3: Before You Begin
Chauvet assumes no responsibility or liability for any errors or omissions that may appear in this manual. Chauvet reserves the right to update the existing document or to create a new document to correct any errors or omissions. -
Page 4: Product At A Glance
Product at a Use on Dimmer Auto Programs Outdoor Use Auto-ranging Power Supply Glance Sound-Active Replaceable Fuse User-Serviceable Master/Slave Safety Notes Please read the following Safety Notes carefully before working with the product. The Notes include important safety information about installation, usage, and maintenance. ·... -
Page 5: Introduction
2. I NTRODUCTION Product Overview Sound Sensitivity Indicator LEDs Microphone Menu Display Safety Loop Menu Buttons Power In Fuse Holder Back Panel View Power Out DMX In/Out Cooling Fan Lenses IR Sensor Front View Mini Kinta™ IRC User Manual Rev. 2 Page 5 of 17... -
Page 6: Product Dimensions
Product Dimensions 9.1 in 241 mm 7.25 in 184 mm 7.5 in 191 mm Page 6 of 17 Mini Kinta™ IRC User Manual Rev. 2... -
Page 7: Setup
The power linking diagram corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local Chauvet distributor as power linking connectors and requirements may differ in your country or region. -
Page 8: Mounting
The bracket adjustment knobs allow for directional adjustment when aiming the product to the desired angle. Only loosen or tighten the bracket knobs manually. Using tools could damage the knobs. Mounting Clamp (such as the CLP-15N from Chauvet) Mounting Bracket Mounting Diagram Safety Cable... -
Page 9: Operation
Display Orientation dISP dSIP Inverts Display Software Version XX.XX Displays the software version DMX Linking The Mini Kinta™ IRC works with a DMX controller. Information about DMX is in the CHAUVET® Primer, which available from Chauvet website http://www.chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf. Configuration Set the product in DMX mode to control with a DMX controller. -
Page 10: Dmx Channel Assignments And Values
DMX Channel Assignments and Values Channel Function Value Percent/Setting 000ó005 No function 006ó020 021ó035 Green 036ó050 Blue 051ó065 White 066ó080 Red/Green 081ó095 Red/Blue 096ó110 Red/White Control/ 111ó125 Green/Blue Operating Mode 126ó140 Green/White 141ó155 Blue/White 156ó170 Red/Green/Blue 171ó185 Red/Green/White 186ó200 Green/Blue/White 201ó215 Red/Green/Blue/White 216ó229... -
Page 11: Color Control And Strobe
Color Control and To custom mix a color and select the strobe speed, follow the instructions below: Strobe Press <MENU> repeatedly until CoLo shows on the display. Press <ENTER> and one of the following will show on the display: · rxxx (red, 000-255) ·... -
Page 12: Irc-6 Infrared Remote Control
The Mini Kinta™ IRC is compatible with the IRC-6 infrared remote control from Chauvet. IRC-6 Infrared IRC mode will activate at the press of any button on the remote, as long as the product Remote is not in slave mode. After activating IRC mode, rEN will show on the display. -
Page 13: Master/Slave Mode
Master/Slave The Master/Slave mode allows a single Mini Kinta™ IRC (the master) to control the actions of one or more Mini Kinta™ or Mini Kinta™ IRC products (the slaves) without the Mode need of a DMX controller. The master will be set to operate in either Auto/Sound mode or a custom mix, while the slave units will be set to operate in Slave mode. -
Page 14: Maintenance
5. M AINTENANCE Product Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and/or mechanical wear. To maintain optimum Maintenance performance and minimize wear, clean your lighting products at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency. -
Page 15: Technical Specifications
6. T ECHNICAL PECIFICATIONS Dimensions and Length Width Height Weight Weight 7.5 in (191 mm) 9.1 in (241 mm) 7.25 in (184 mm) 3.4 lb (1.6 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Supply Type Range Voltage Selection Power... -
Page 16: Returns
You must send the merchandise prepaid, in its original box, and with its original packing and accessories. Chauvet will not issue call tags. Clearly label the package with the RMA number. Chauvet will refuse any product returned without an RMA number. -
Page 17: Contact Us
Voice: (954) 577-4455 Email: tech@chauvetlighting.com Fax: (954) 929-5560 Toll free: (800) 762-1084 World Wide Web www.chauvetlighting.com UNITED KINGDOM AND IRELAND - Chauvet Europe Ltd. General Information Technical Support Address:Unit 1C Email: Brookhill Road Industrial uktech@chauvetlighting.com Estate Pinxton, Nottingham, UK World Wide Web NG16 6NT www.chauvetlighting.co.uk...
